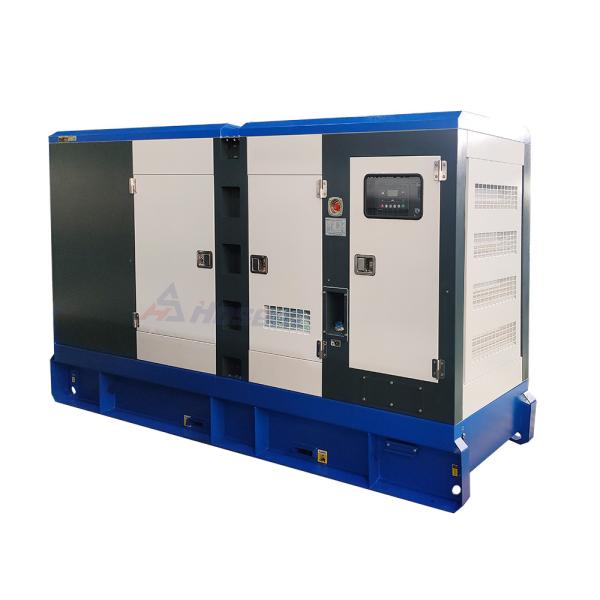

Newly Manufactured Price 300kVA 240kW Silent Diesel Generator Set
with Cummins Engine
Product Description
| Generator Set Specification |
| Model | A-C330HS |
| Max. Power | kVA | 330 |
| kW | 264 |
| Rate Power | kVA | 300 |
| kW | 240 |
| Frequency | Hz | 60 |
| Rate Voltage | V | 220/127 |
| Rate Current | A | 787.3 |
| Dimension For Open-type Genset | mm | 2850 X 970 X 1630 |
| Weight For Open-type Genset | kg | 1950 |
| Dimension For Soundproof Genset | mm | 3900 X 1300 X 1900 |
| Weight For Soundproof Generator | kg | 2500 |
| Engine Specification |
| Engine Manufacturer | Chongqing Cummins Engine Co., Ltd. |
| Engine Brand | Cummins |
| Engine Model | 6LTAA8.9-G3 |
| No. of Cylinder | 6 Cylinder in line |
| Aspiration | | Turbocharged and Air to Air Aftercooed |
| Governor | Electric |
| Engine Max. Output Power | kW | 258.5 |
| Displacement | L | 8.9 |
| Starting Voltage | V | 24 |
| Bore | mm | 125 |
| Stroke | mm | 136 |
| Lubrication Oil Capacity | L | 36 |
| Alternator Specification |
| Alternator Manufacturer | Cummins Generator Technologies |
| Alternator Model | UCDI 274 J |
| Alternator Brand | Stamford |
| Rate Output | kVA | 300 |
| Frequency | Hz | 60Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Voltage Regulation | AVR Model SX440 |
| Protection Grade | IP23 |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for
optional |
|
| Control Panel Specification |
| Controller Brand | Deepsea |
| Controller Model | DSE6120 |
| Breaker Brand | Delixi |
| Breaker Capacity | 800A |
| Battery Charger | Supply |
| Emergency Stop Button | Supply |
| Automatic Mains Fail (AMF) | Supply |
| The control panel supply the full protection with Alarm and
Shutdown of the diesel generator include High Temp, Low Oil
Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under /
Over Voltage etc. |
|
|
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand
controller. |
Product Features
1. Reliable Cummins Engine
The 300kVA generator set is powered by a globally recognized Cummins engine, known for its durability, high performance, and long lifespan,
making it an excellent choice for continuous or standby power.
2. High-Quality Alternator Options
Equipped with premium brushless alternators from Hosem, Leroy Somer, Stamford, or Mecc Alte, offering high
efficiency, Class H insulation, IP23 protection, and automatic voltage regulation (AVR) for
stable and reliable power output.
3. Silent and Soundproof Design
The generator features a noise-reducing soundproof canopy, built with high-density flame-retardant sound-absorbing material to ensure quiet operation, ideal for use in noise-sensitive
environments.
4. Large Capacity Fuel Tank
A 500-liter integrated fuel tank allows the generator to run continuously for long hours at full
load, reducing the need for frequent refueling and ensuring
consistent performance.
5. Robust Construction for All Conditions
Designed with heavy-duty construction, the generator includes anti-corrosion powder-coated steel, reinforced lifting points, and a weatherproof canopy, ensuring it can withstand extreme environmental conditions.

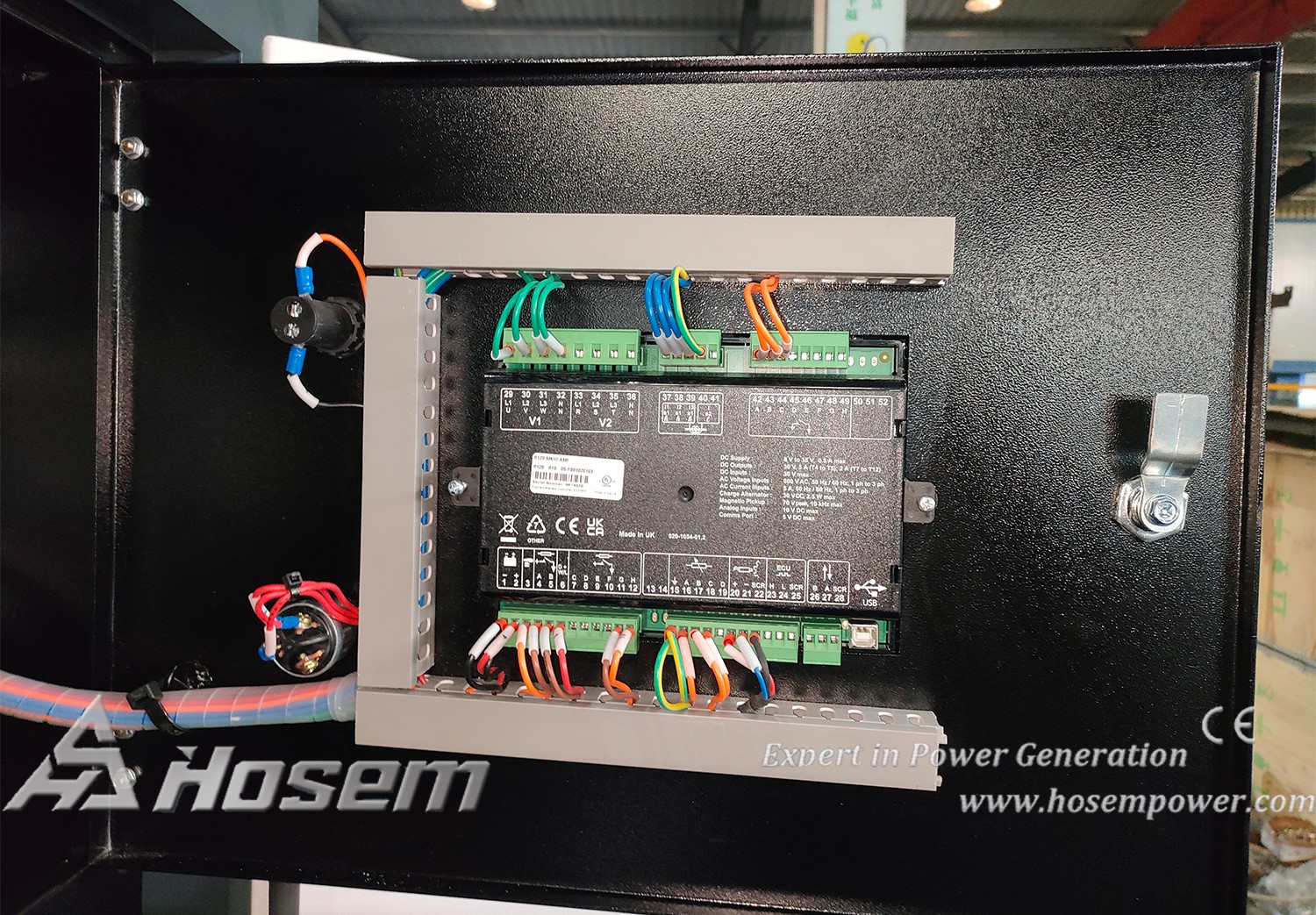

6. Intelligent Control System
Fitted with an advanced Deepsea DSE6120 control module, the genset supports automatic start/stop, load management, AMF (Automatic Mains Failure), and fault monitoring. The system also features remote monitoring
and a clear LCD display for user-friendly operation.
These features make the 300kVA Silent Diesel Generator Set with Cummins Engine an excellent investment for your power needs, whether for
industrial, commercial, or emergency backup purposes.
