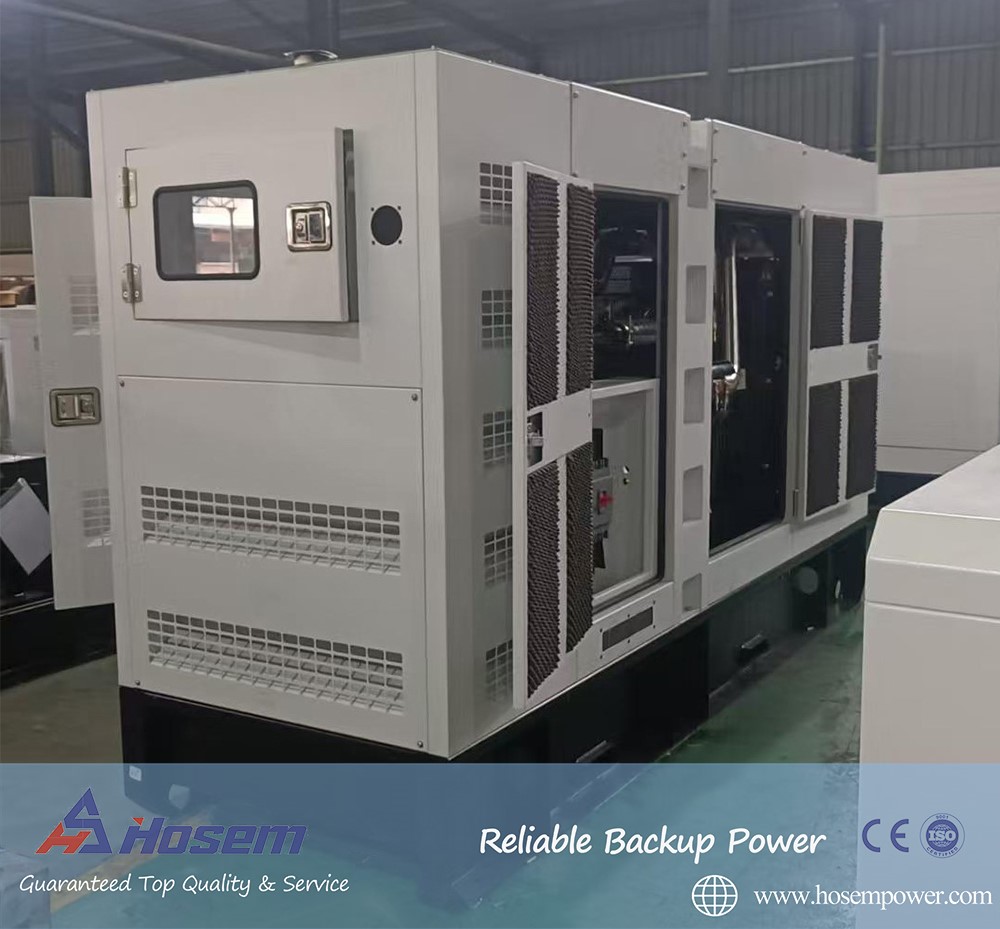

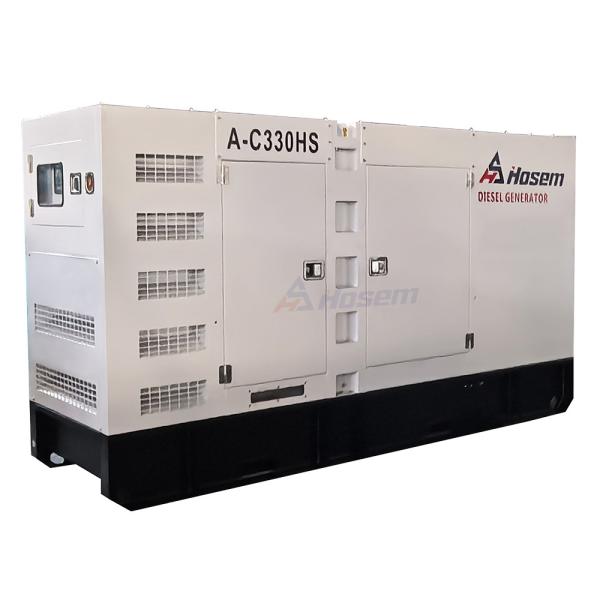

300kVA Cummins Powered Generators Soundproof Canopy Type Diesel Power

Ask Lasest Price
Brand Name :	Hosem Power
Model Number :	A-C330HS
Certification :	CE/ISO9001
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	500 unit per month
Delivery Time :	30 days

Add to Cart

Product Details
Company Profile

300kVA Cummins Powered Generators Soundproof Canopy Type Diesel Power

Product Description

Generator Set Specification
Model		A-C330HS
Max. Power	kVA	330
Max. Power	kW	264
Rate Power	kVA	300
Rate Power	kW	240
Frequency	Hz	60
Rate Voltage	V	220/127
Rate Current	A	787.3
Dimension For Open-type Genset	mm	2850 X 970 X 1630
Weight For Open-type Genset	kg	1950
Dimension For Soundproof Genset	mm	3900 X 1300 X 1900
Weight For Soundproof Generator	kg	2500

Engine Specification
Engine Manufacturer		Chongqing Cummins Engine Co., Ltd.
Engine Brand		Cummins
Engine Model		6LTAA8.9-G3
No. of Cylinder		6 Cylinder in line
Aspiration		Turbocarged and Air to Air Aftercooed
Governor		Electric
Engine Max. Output Power	kW	258.5
Displacement	L	8.9
Starting Voltage	V	24
Bore	mm	125
Stroke	mm	136
Lubrication Oil Capacity	L	36

Alternator Specification
Alternator Manufacturer		Cummins Generator Technologies
Alternator Model		ASF 314C
Alternator Brand		Hosem
Rate Output	kVA	300
Frequency	Hz	60Hz
Altitude	M	≤1000
Insulation		Class H
Voltage Regulation		AVR Model SX460
Protection Grade		IP23
Alternator for optional	Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

Control Panel Specification
Controller Brand	Smartgen
Controller Model	HGM6120N
Breaker Brand	Delixi
Breaker Capacity	80A
Battery Charger	Supply
Emergency Stop Button	Supply
Automatic Mains Fail (AMF)	Supply
The control panel supply the full protection with Alarm and Shutdown of the diesel generator include High Temp, Low Oil Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under / Over Voltage etc.


Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Product Features

1️⃣ Powerful 300kVA Diesel Generator – Delivers stable and efficient power, making it ideal for industrial, commercial, and backup applications.

2️⃣ Reliable Cummins Powered Generator – Equipped with a high-performance Cummins engine, ensuring durability, fuel efficiency, and strong power output.

3️⃣ Heavy-Duty Base Fuel Tank – All base fuel tanks are baking painted for superior corrosion resistance and long-lasting durability.

4️⃣ High-Quality Electrical Components – Chint/Delixi relays, indicators, fuse breakers, and meters ensure safe and stable operation.

5️⃣ Comprehensive Safety Protections – Includes turbocharger protection, moving parts protection, and CE-compliant safety features for user security.

6️⃣ Rigorous Testing for High Performance – Each 300kVA generator undergoes a one-hour factory test from 0% to 110% load to ensure top-notch performance before delivery.

Cummins powered generators

Cummins backup generators

Are you looking for a high-performance, fuel-efficient, and ultra-quiet 300kVA diesel generator? Welcome to contact us at any time.
