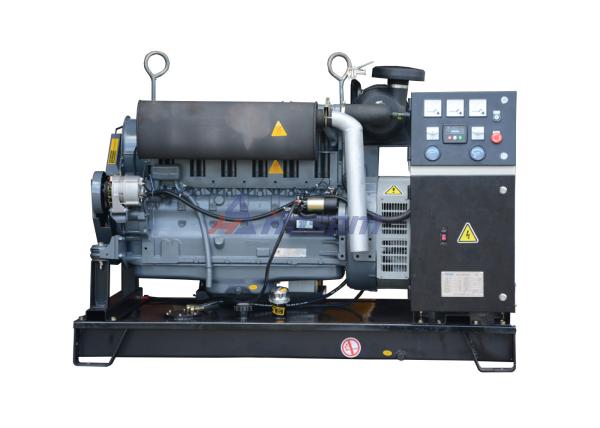

60kVA Air Cooled Deutz Diesel Generator with Engine F6L912TADG ,
Open Tyoe Generator for Telecom
Deutz powered equipment is widely being used worldwide due to the
simplicity of their air-cooled designs. The air-cooled engines are
well-suited for many applications since they cannot freeze or
boil-over during normal operation. These engines could very well
handle the high load for powering the generators during long
periods without getting overheated. Parts and services are
available around the world. DEUTZ offers worldwide 24-hour support.
Our DEUTZ Air-Cooled Generator Sets output cover from 10kw to 180kw
and with 50Hz or 60Hz available.
Specification
| Generator Set Specification |
| Model | | A-DE66F |
| Standby Power | kVA | 66 |
| kW | 53 |
| Prime Power | kVA | 60 |
| kW | 48 |
| Frequency | Hz | 50 |
| Output Voltage | V | 400/230 |
| Oil Consumption | L/H | 0.124 |
| Dimension For Open-type | mm | 1850 X 750 X 1100 |
| Weight For Open-type | kg | 950 |
| Engine Specification |
| Engine Manufacturer | Beijing Beinei Diesel Engine Co., Ltd. |
| Engine Brand | Beinei Deutz |
| Engine Model | F6L912TADG |
| No.of Cylinder | 6 Cylinder in line |
| Bore | mm | 100 |
| Stroke | mm | 120 |
| Displacement | L | 3.77 |
| Compress Air Flow | m3/min | 3.1 |
| Exhaust Gas Flow | m3/min | 5.1 |
| Exhaust Gas Temperature | ℃ | N.A. |
| Lubrication Oil Capacity | L | N.A. |
| Starting Voltage | V | 24 |
| Engine Max.Output Power | kW | 65 |
Alternator Features:
1. Genuine Stamford, Leroy Somer, Marathon, ENGGA alternator
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial
alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate1%
6. Simple installation and maintenance with easy access to
terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of
VDE0875-N and ISO8528
9. Moisture proof, sand-proof, dustproof, salt-proof and
vibration-proof
Why Choise Hosem Power Generator?
1. Solve your technical problems in 24 hours and provide
international warranty service for engines
2. Design the appearance form according to customers’ request
3. Polyester varnish for appearance protecting for shining and
raining
4. Two hours testing before out factory
5. ISO9001 and CE certification
FAQ
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100%
irrevocable L/C at sight.
Q: What is your lead time?
A: About 20-30 days after receiving advance deposit or original
L/C.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificates for
different countries such as SONCAP for Nigeria, COI for Iran, SASO
for Saudi Arabia, etc.
Q: What warranty do you provide?
A: One year, during the guarantee period, we will supply free of the easily damaged parts for the possible problems except for
the incorrect operation. After expiration, we supply cost spare parts for Genset maintenance.
