25kVA Deutz Air Cooled Diesel Generator With Engine BFM3 G1

Ask Lasest Price
Brand Name :	Hosem Power
Model Number :	A-DE28H
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	500 unit per month
Delivery Time :	30 days
Certification :	CE/ISO9001

Add to Cart

Product Details
Company Profile

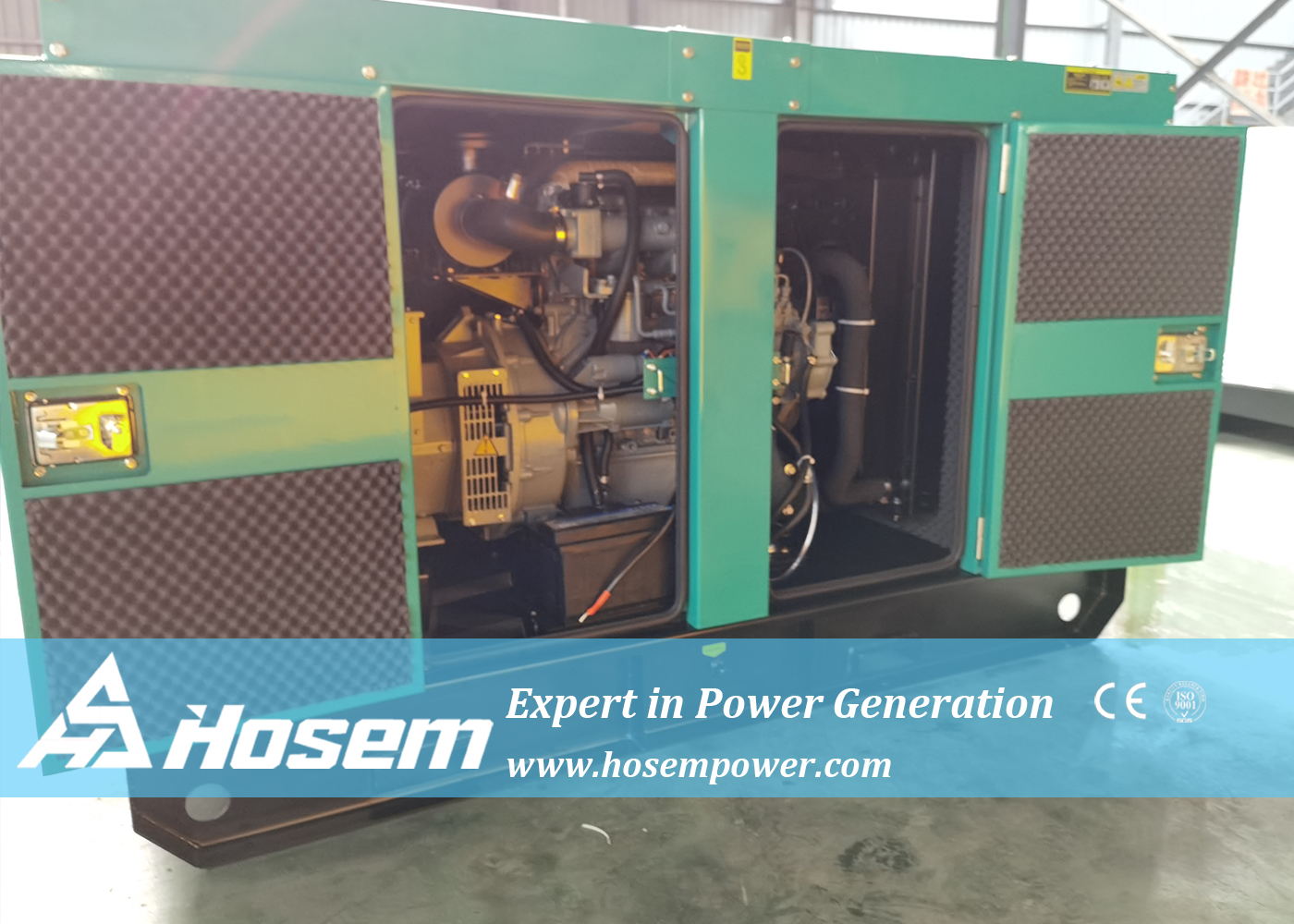

25kVA Deutz Air Cooled Diesel Generator With Engine BFM3 G1

Deutz Generator , Diesel Generators , 25kVA Deutz with Engine BFM3 G1 , Germany Brand Generator

Specification of Genset:

Max. Power	kVA	28
Max. Power	kW	22
Rate Power	kVA	25
Rate Power	kW	20
Frequency	Hz	60
Rate Voltage	V	230/133
Rate Current	A	62.7
Fuel Tank Capacity	L	60
Dimension For Open-type Genset	mm	1650 X 700 X 1250
Weight For Open-type Genset	kg	620
Dimension For Soundproof Genset	mm	2000 X 900 X 1250
Weight For Soundproof Generator	kg	870
Noise Level for Soundproof Generator at 7M	dBA	70
Battery		One of Free Maintenance Battery

Specificaton of Engine BFM3 G1

Engine Manufacturer		Deutz (Dalian) Engine Co., Ltd.
Engine Brand		Deutz
Engine Model		BFM3 G1
No. of Cylinder		4 Cylinder in line
Aspiration		Naturally aspirated
Governor		Electric
Engine Max. Output Power	kW	25
Displacement	L	3.2
Compression Ratio		18.5 : 1
Starting Voltage	V	12
Bore	mm	98
Stroke	mm	105
Lubrication Oil Capacity	L	7.5
Intake Air Flow	M³/Min	N.A.
Fuel Consumption at 100% Load	L/H	5.4

Deutz Generator , Diesel Generators , 25kVA Deutz with Engine BFM3 G1 , Germany Brand Generator , 50Hz

Alternator Manufacturer		Stamford
Alternator Model		PI 144D
Alternator Brand		Stamford
Rate Output	kVA	20
Frequency	Hz	60Hz
Altitude	M	≤1000
Insulation		Class H
Phase		3 Phase
Working Temperature without power decrease		≤40℃
Working Altitude without power decrease		≤1000m
Automatic Voltage Regulation		SX460
Protection Grade		IP23
Alternator for optional	Stamford, Marathon, Mecc Alte and Hosem Brushless alternator for optional

What are We Advantage?
1: We are More Professional
Most members of Hosem Power have more than 10 years of experience in the generator area, Our mechanical engineers, electrical engineers have more than 20 years of experience in the generator ara. We are always ready to serve to your needs.

2: Outstanding Quality
Our advantage lies in:
1. Good shock absorption performance: Optimal design of shock absorption system based on computer dynamic simulation.
2. Advanced control system: Full monitoring system control strategy found on reliability design.
3. Low noise: Tailor custom-engineered exhaust silencer system for each set.
4. Green environmental protection: Diesel generator set combined energy-saving and low emission in one.

3: Strictly QC Before EX-Factory.
Each and every unit is strictly factory tested before shipment.
1) Parts faults testing
2) Fuel tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insulation testing
6) Noise testing
7) Loading Testing: 25%, 50%, 75%, 100%, 110% load to check verify that all control systems, alarm and shut-down protection.

FAQ
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.
Q: What is your lead time?
A: About 20-30 days after receiving advance deposit or original L/C.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificates for different countries such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.
Q: What warranty do you provide?
A: One year, during the guarantee period, we will supply free of the easily damaged parts for the possible problems except for the incorrect operation. After expiration, we supply cost spare parts for Genset maintenance.
