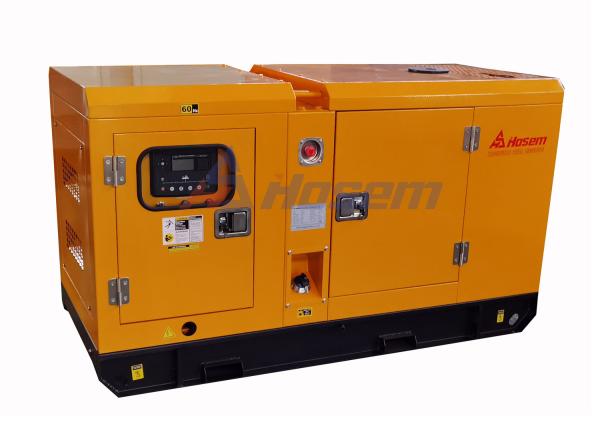

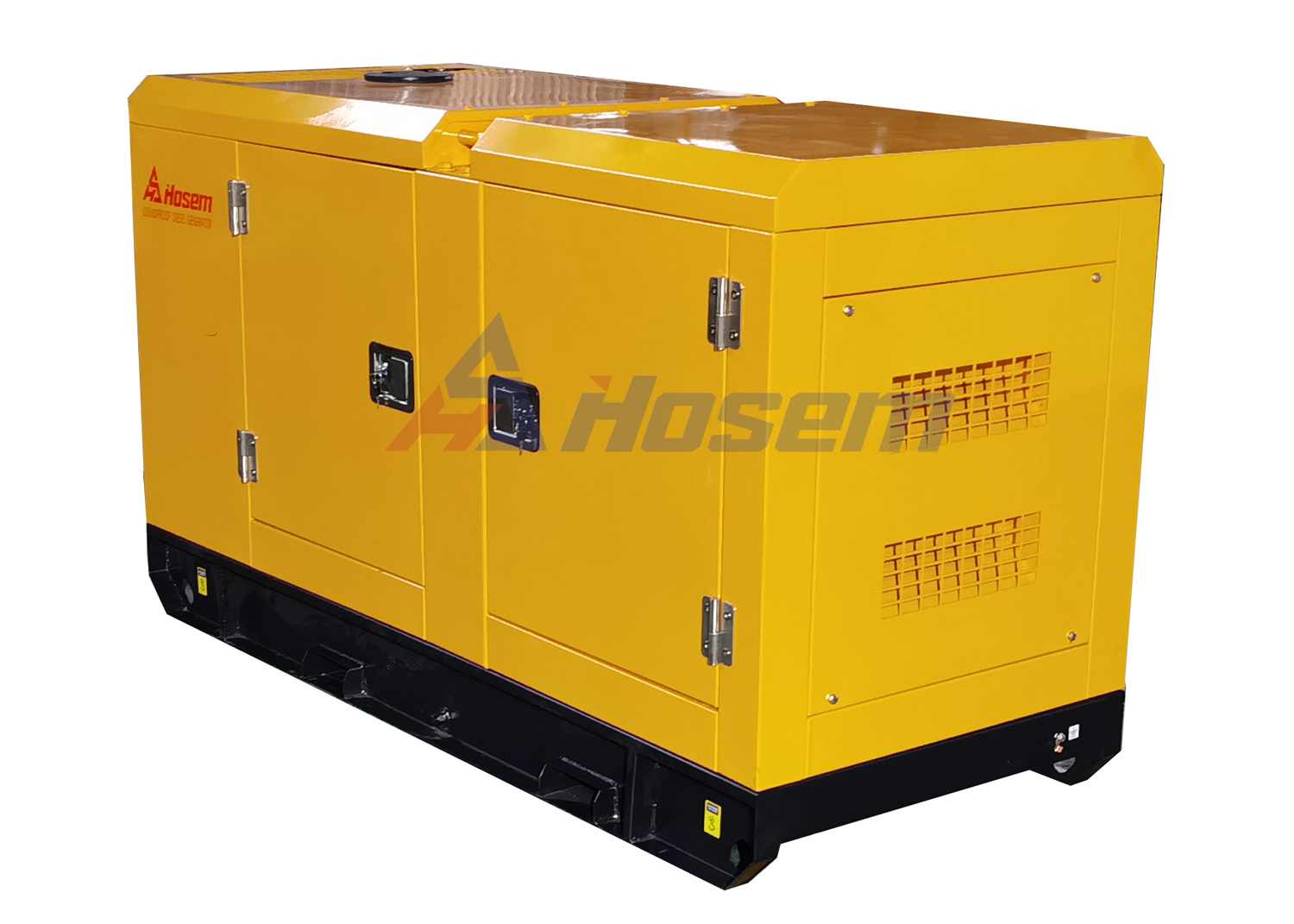

Name: 1500rpm 15kva Fawde Generator With Brushless Alternator
Brand: Hosem
Price: 2300.00 USD

Add to Cart

Brand New Diesel Generator For Sale , 15kVA Fawde Diesel Generator with Brushless Alternator

Technical Data of 15kVA Brand New Fawde Diesel Generator:

Model		A-XC17
Max. Power	kVA	16.5
Max. Power	kW	13.2
Rate Power	kVA	15.0
Rate Power	kW	12.0
Frequency	Hz	50
Rate Voltage	V	400/230
Rate Current	A	21.7
Dimension For Open-type Genset	mm	1280 X 750 X 1280
Weight For Open-type Genset	kg	500
Dimension For Soundproof Genset	mm	1780 X850 X 1150
Weight For Soundproof Generator	kg	850
Noise Level at 7 Meters	dBA	72
Fuel Tank Capacity	Litres	50
Battery		One of 80A Free Maintenace Battery

Brand New Diesel Generator For Sale , 15kVA Fawde Diesel Generator with Brushless Alternator

Technical Data of Fawde Diesel Engine:

Engine Manufacturer		Faw Jiefang Automotive Co., Ltd. Wuxi Diesel Engine Works
Engine Brand		Fawde
Engine Model		4DW81-23D
No. of Cylinder		4 Cylinder in line
Aspiration		Naturally Aspirated
Governor		Mechanical
Engine Max. Output Power	kW	19
Displacement	L	2.270
Starting Voltage	V	12
Bore	mm	85
Stroke	mm	100
Lubrication Oil Capacity	L	7.8
Compression Ratio		17 : 1
Intake Air Flow	M³/Min	1.4
Fuel Consumption at 100% Load	L/H	5.0

Brand New Diesel Generator For Sale , 15kVA Fawde Diesel Generator with Brushless Alternator

Technical Data of Hosem Brushless Alternator:

Alternator Manufacturer		Fuzhou Hosem Power Co., Ltd.
Alternator Model		ASF164D
Alternator Brand		Hosem
Rate Output	kVA	15
Frequency	Hz	50Hz
Current	A	21.7
Insulation		Class H
Voltage Regulation		SX460
Protection Grade		IP23
Working Temperature without Output Decrease		40 Degree
Phase		Three Phase
Temperature Rise		125 Degree Celsius
Alternator for optional	Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

Technical Data of Control Panel:

Controller Brand	Smartgen
Controller Model	HGM6120N
Breaker Brand	Delixi
Breaker Capacity	A	32
Battery Charger	Smartgen Model BAC06A
Emergency Stop Button	Supply
Automatic Mains Fail (AMF)	Supply
Fuel Level	Supply
Automatic Transfer Switch	ATS as optional part
Mains Monitor	Supply with AMF Function
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).


Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Supply Range of Brand New Diesel Generator Rated Output 15kVA:

Standard Configuration of 15kVA Brand New Diesel Generator	Optional Configuration for 15kVA Brand New Diesel Generator
1. Fawde Diesel Engine 4DW81-23D	1. Soundproof Canopy
2. Hosem Brushless Alternator ASF164D	2. Heavy-duty air filter
3. Smartgen HGM6120N AMF Controller	3. Engine Oil Heater
4. Cooling system with large size radiator and expansion tank	4. Engine coolant heater
5. Heavy- duty chassis	5. Coolant level sensor and alarm
6. Built-in insulation and anti-vibration dampers	6. Alternator Anti-condensation heater
7. Free-maintenance battery	7. PMG alternator
8. Charge alternator for diesel engine	8. Power sockets panel
9. A.C. 220V battery charger	9. Daily fuel fank
10. Cable and bracket for battery	10. External fuel connections
11. Battery isolation switch	11. Automatic fuel refilling device
12. Circuit breaker	12. Residential type silencer
13. Fuel & Water separator	13. Skid with forklift slots
14. Oil sump pump	14. Parallel Panel
15. Full safety operation protection	15. ATS (Automatic Transfer Switch)
16. Emergency stop button	16. Mobile trailer chassis
17. Automatic start control system	17. 4 Pole circuit breaker
