Doosan Generator Set , DP222LC 600kW Doosan, Power Generator by
Doosan, 80dBA @ 7 meters
Detailed Product Description
| Doosan Engine: | DP222LC | Stamford Alternator: | LVI634B |
| Prime Power: | 600KW / 750KVA | Standby Power: | 660KW / 825KVA |
| Output Type: | AC Three Phase | Frequency: | 50HZ / 1500rpm |
| Cooling Method: | Water | Control System: | Deep Sea 6020 |
| Exciter: | Brushless | Fuel Consumption (l/hr)100% Load: | 3 Pole MCCB |
| Color: | White, Yellow, Blue, Red Etc. For Your Choose | Test: | Debugging Before Shipment |
| Amps: | 1043-1140A / 1804-1968A / 2082-2279A | Voltage: | 380V-415V / 220V-240V / 190V-208V |
| Product Name: | 5Factory Use Silent Generator Powered By Big Power 600KW / 750KVA
Silent Generator Powered By Chinese Enigne Doosan | | |

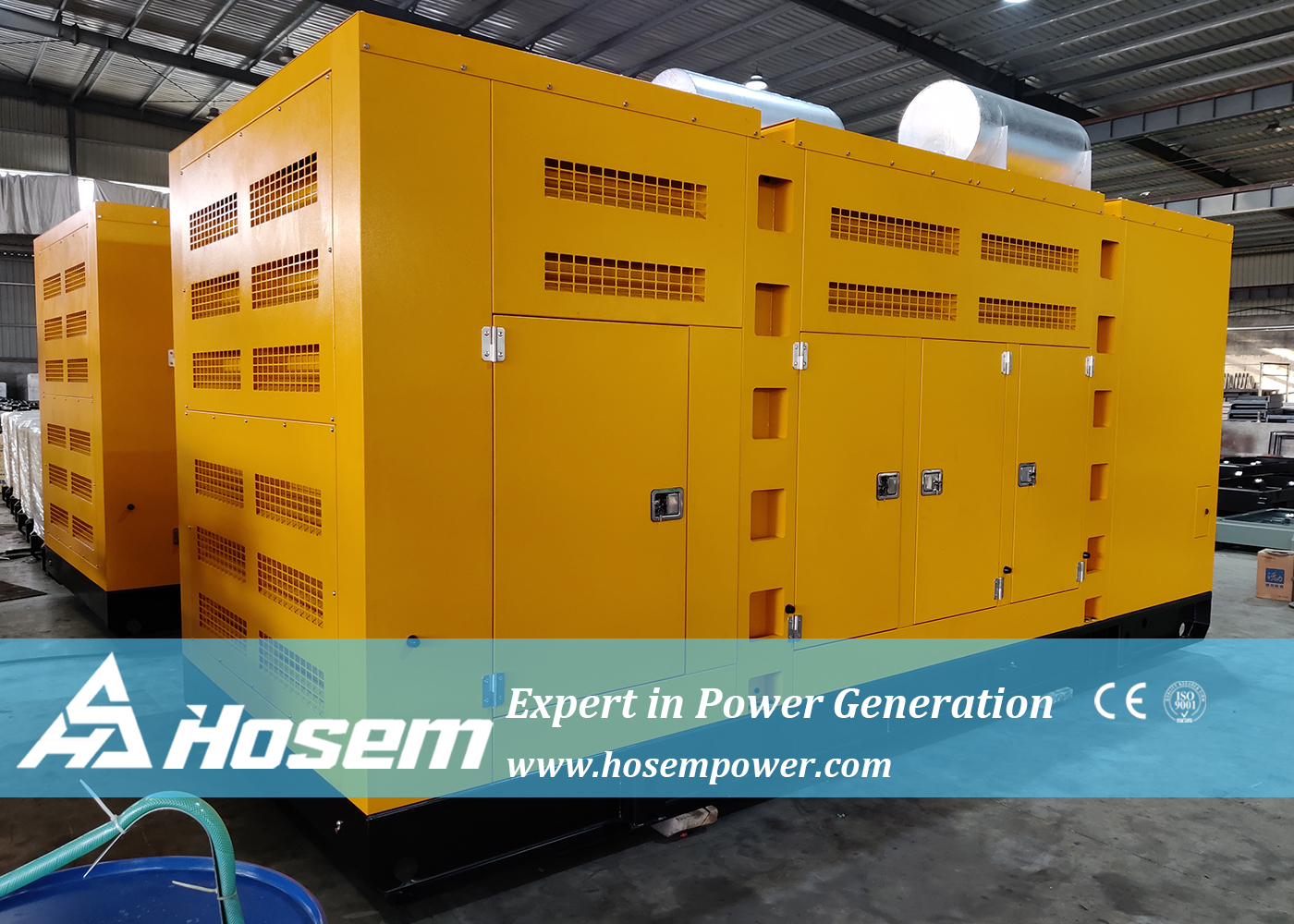

Hosem Power 600KW / 750KVA Silent Generator Powered by Doosan
Output Ratings
Gensets Model | Prime Power | Standby Power |
| kW | kVA | kW | kVA |
| SP825DS | 600 | 750 | 660 | 825 |
| Voltage | 380V-415V | 220V-240V | 190V-208V |
| Amps | 1043-1140 | 1804-1968 | 2082-2279 |
Ratings and Performance Data
| Engine Brand | Doosan |
| Engine Model | DP222LC |
| Alternator Brand | Stamford |
| Alternator Model | LVI634B |
| Control System | DSE6020 / DSE3110 |
Standard Noise Level@7m
(Soundproof Sets) | 82 |
| Circuit Breaker Type | 3 Pole MCCB |
| Frequency & Phase | 50Hz & 3PH |
| Engine Speed: RPM | 1500 |
| Fuel Tank Capacity: L | Open | 650 |
| Soundproof |
| Fuel Consumption (l/hr) | 110% Load | 179.6 |
| 100% Load | 161.0 |
| 75% Load | 119.1 |
| 50% Load | 79.3 |
| Lubricant | 15W40 |
| Total Lubricant Capacity (L) | 43 |
Configuration:
* BRAND-NEW and ORIGINAL low fuel consumption Doosan Daewoo diesel
engine, efficient alternator and digital controller
* Standard Circuit breaker for overload and short circuit
protection
* Standard shock pads for whole generating set (engine, alternator,
and control box)
* Standard generator accessaries: Maintenance-free Battery(Brand:
VARTA), Advanced Battery Switch with Cables and rack, exhaust
silencer, flexible pipe, flange, standard tools kit, and
engine/alternator/generator set operation & maintenance manuals.
* Each generator set is with 8 working hours build-in fule tank for
convenient daily use.
* Optional accessaries: Canopy generator, ATS, Parallel operation
and Synchronization system, mobile trailer generator
* Generator warranty: World warranty service
Application scope:
It is applied in various construction sites, such as huge
buildings, airports, harbors, offshore operation platforms and
field projects, etc.
Why Choose Hosem Power Generator?
Reasons1: We are More Professional
Most members of Hosem Power have more than 10 years of experience
in the generator area, Our mechanical engineers, electrical
engineers have more than 20 years of experience in the generator
ara. We are always ready to serve to your needs.
Reasons2: Outstanding Quality
Our advantage lies in:
1. Good shock absorption performance: Optimal design of shock
absorption system based on computer dynamic simulation.
2. Advanced control system: Full monitoring system control strategy
found on reliability design.
3. Low noise: Tailor custom-engineered exhaust silencer system for
each set.
4. Green environmental protection: Diesel generator set combined
energy-saving and low emission in one.
Reasons3: Strictly QC Before EX-Factory.
Each and every unit is strictly factory tested before shipment.
1) Parts faults testing
2) Fuel tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insulation testing
6) Noise testing
7) Loading Testing: 25%, 50%, 75%, 100%, 110% load to check verify
that all control systems, alarm and shut-down protection.
FAQ
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100%
irrevocable L/C at sight.
Q: What is your lead time?
A: About 20-30 days after receiving advance deposit or original
L/C.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificates for
different countries such as SONCAP for Nigeria, COI for Iran, SASO
for Saudi Arabia, etc.
Q: What warranty do you provide?
A: One year, during the guarantee period, we will supply free of the easily damaged parts for the possible problems except for
the incorrect operation. After expiration, we supply cost spare parts for Genset maintenance.
