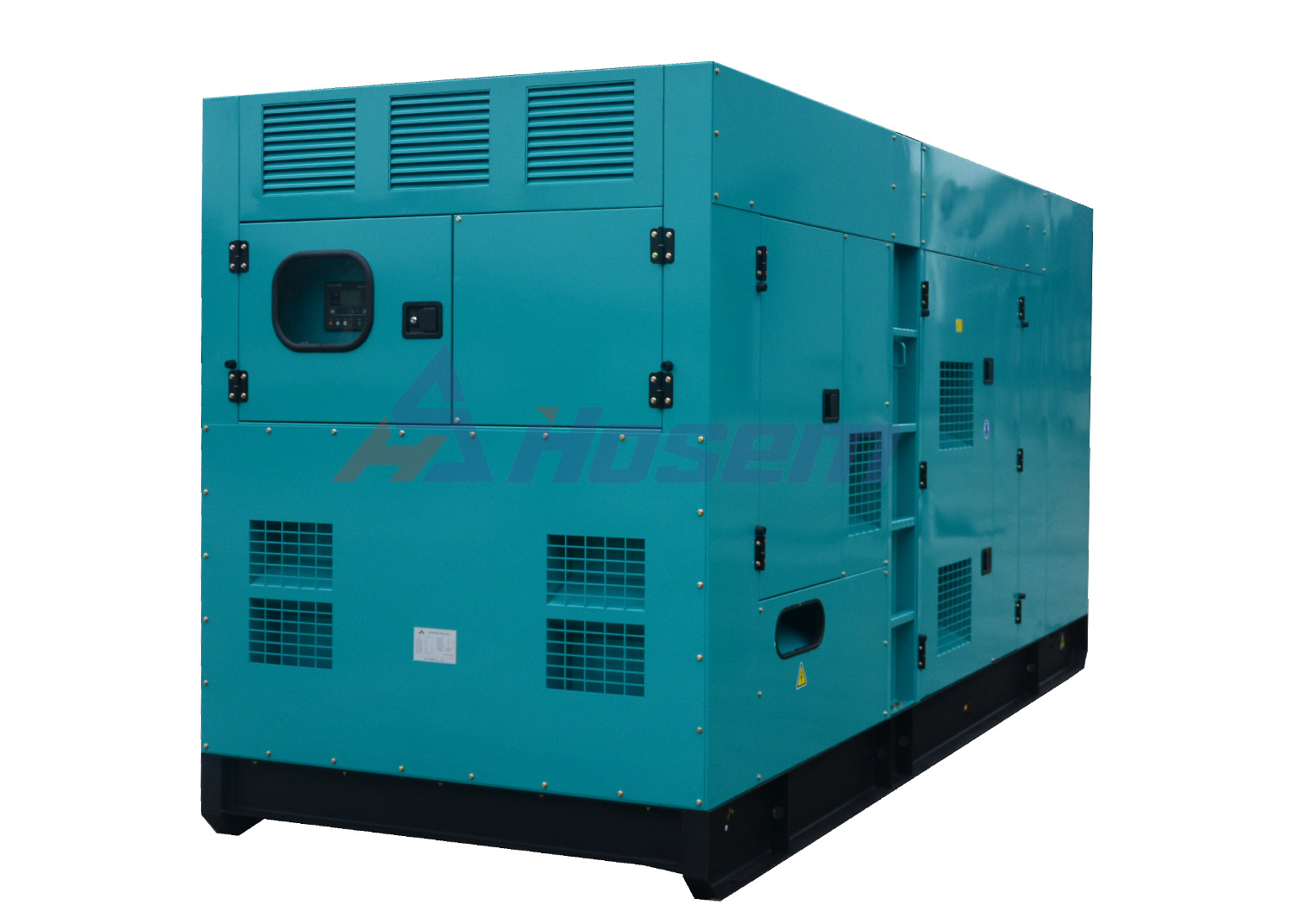

450kVA Perkins Generator Set Drived By 2506C-E15TAG1 Diesel Engine

Product Categories

Fuzhou Hosem Power Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 450kVA Perkins Generator Set Drived By 2506CE15TAG1 Diesel Engine
Brand: Hosem
Price: 34000.00 USD

Add to Cart

450kVA Perkins Generator Set Drived by 2506C-E15TAG1 Diesel Engine for Industrial

Specification of 450kVA Perkins Generator Set:

Model		A-P500-II
Max. Power	kVA	495
Max. Power	kW	396
Rate Power	kVA	450
Rate Power	kW	360
Frequency	Hz	50
Rate Voltage	V	400/230
Rate Current	A	649.5
Fuel Tank Capacity	L	600L
Dimension For Open-type Genset	mm	3700 X 1200 X 1960
Weight For Open-type Genset	kg	3583
Dimension For Soundproof Genset	mm	4600 X 1350 X 2250
Weight For Soundproof Generator	kg	5305
Noise Level for Soundproof Generator at 7M	dBA	75
Battery for Starting		Two of Free Maintenance Battery

450kVA Perkins Generator Set Drived by 2506C-E15TAG1 Diesel Engine for Industrial

Specification of Perkins Diesel Engine:

Engine Manufacturer		Perkins
Engine Brand		Perkins
Engine Model		2506C-E15TAG1 L
No. of Cylinder		6 Cylinder in line
Aspiration		Turbocharged and Air to Air Aftercooled
Governor		Electric
Engine Max. Output Power	kW	451
Displacement	L	15.0
Compression Ratio		16.0 : 1
Starting Voltage	V	24
Bore	mm	137
Stroke	mm	171
Lubrication Oil Capacity	L	53
Intake Air Flow	M³/Min	33
Fuel Consumption at 100% Load	L/H	95

450kVA Perkins Generator Set Drived by 2506C-E15TAG1 Diesel Engine for Industrial

Specification of Stamford Alternator:

Alternator Manufacturer		Cummins Generator Technologies
Alternator Model		HCI 544 C
Alternator Brand		Stamford
Rate Output	kVA	500
Frequency	Hz	50Hz
Altitude	M	≤1000
Insulation		Class H
Phase		3 Phase
Working Temperature without power decrease		≤40℃
Working Altitude without power decrease		≤1000m
Automatic Voltage Regulation		SX440
Protection Grade		IP23
Alternator for optional	Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

450kVA Perkins Generator Set Drived by 2506C-E15TAG1 Diesel Engine for Industrial

Specification of Control Panel:

Controller Brand	Deepsea
Controller Model	DSE7320
Breaker Brand	Delixi
Breaker Capacity (A)	800
Battery Charger	Smartgen Model BAC06A
Emergency Stop Button	Supply
Automatic Mains Fail (AMF)	Supply
Fuel Level	Supply
Automatic Transfer Switch	ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).


Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.
