Name: Soundproof Canopy Perkins Generator Set Continuous Power 600kva
Brand: Hosem
Price: 45000.00 USD

Add to Cart

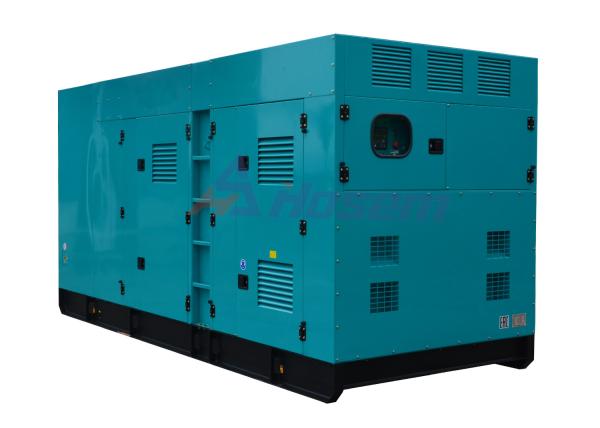

Perkins Generator Set with Soundproof Canopy Continuous Power 600kVA

Datasheet of 600kVA Perkins Generator Set:

Model		A-P660
Max. Power	kVA	660
Max. Power	kW	528
Rate Power	kVA	600
Rate Power	kW	480
Frequency	Hz	50
Rate Voltage	V	400/230
Rate Current	A	866.1
Fuel Tank Capacity	L	600
Dimension For Open-type Genset	mm	3350 X 1550 X 2010
Weight For Open-type Genset	kg	4706
Dimension For Soundproof Genset	mm	4700 X 1800 X 2380
Weight For Soundproof Generator	kg	5330
Noise Level for Soundproof Generator at 7M	dBA	75
Battery for Starting		Two of 200A Free Maintenance Battery

Perkins Generator Set with Soundproof Canopy Continuous Power 600kVA

Datasheet of Perkins Diesel Engine:

Engine Manufacturer		Perkins
Engine Brand		Perkins
Engine Model		2806C-E18TAG1A
No. of Cylinder		6 Cylinder in line
Aspiration		Turbocharged and Air to Air Aftercooled
Governor		Electric
Engine Max. Output Power	kW	646
Displacement	L	22.9
Compression Ratio		14.5 : 1
Starting Voltage	V	24
Bore	mm	160
Stroke	mm	190
Lubrication Oil Capacity	L	73.8
Intake Air Flow	M³/Min	42
Fuel Consumption at 100% Load	L/H	129

Stamford Alternator for 600kVA Perkins Generator Set

Datasheet of Stamford Alternator:

Alternator Manufacturer		Cummins Generator Technologies
Alternator Model		HCI 544 E
Alternator Brand		Stamford
Rate Output	kVA	610
Frequency	Hz	50Hz
Altitude	M	≤1000
Insulation		Class H
Phase		3 Phase
Working Temperature without power decrease		≤40℃
Working Altitude without power decrease		≤1000m
Automatic Voltage Regulation		SX440
Protection Grade		IP23
Alternator for optional	Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

Control Panel for 600kVA Perkins Diesel Generator

Datasheet of Control Panel:

Controller Brand	Deepsea
Controller Model	DSE7320 MKII
Breaker Brand	Delixi
Breaker Capacity (A)	1250
Battery Charger	Smartgen Model BAC06A
Emergency Stop Button	Supply
Automatic Mains Fail (AMF)	Supply
Fuel Level	Supply
Automatic Transfer Switch	ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).


Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.
