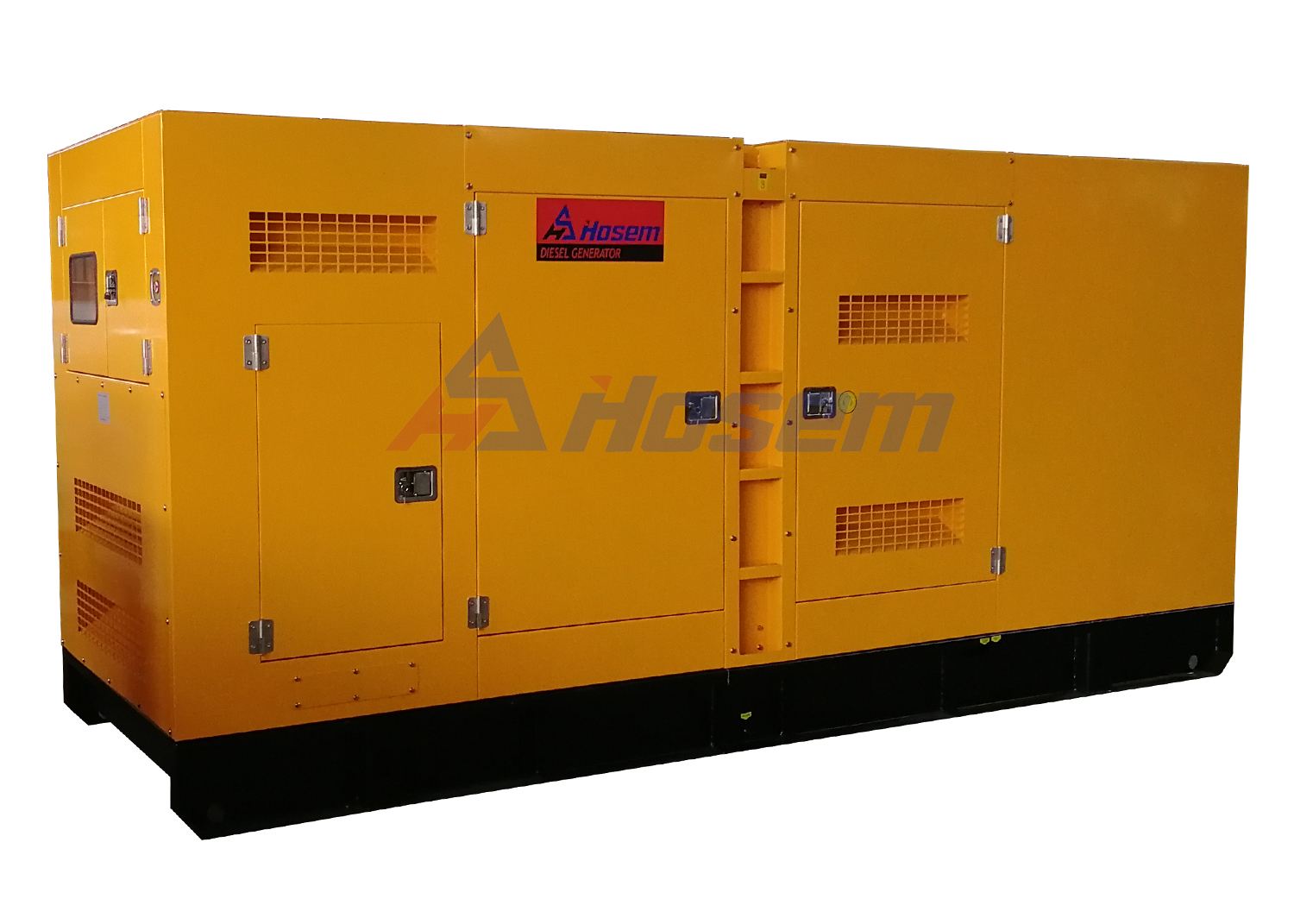

    300kVA Perkins Generator Set Powered By 1506A-E88TAG5 Diesel Engine

    Ask Lasest Price
    Brand Name : Hosem
    Model Number : A-P330S
    Certification : CE, ISO9001, ISO14001, SASO
    Price : USD24000.00 to USD30000.00
    Supply Ability : 100Sets Per Month
    Delivery Time : 25 Days
    • Product Details
    • Company Profile

    300kVA Perkins Generator Set Powered By 1506A-E88TAG5 Diesel Engine

    Perkins Generator Set Powered by 1506A-E88TAG5 Diesel Engine Rated Power 300kVA 50Hz


    Specification of Perkins Diesel Generator:

    ModelA-P330
    Max. PowerkVA330
    kW264
    Rate PowerkVA300
    kW240
    FrequencyHz50
    Rate VoltageV400/230
    Rate CurrentA433.0
    Fuel Tank CapacityL500
    Dimension For Open-type Gensetmm3000 X 1200 X 1600
    Weight For Open-type Gensetkg2100
    Dimension For Soundproof Gensetmm3900 X 1350 X1800
    Weight For Soundproof Generatorkg3200
    Noise Level for Soundproof Generator at 7MdBA75
    Battery for StartingTwo of 100A Free Maintenance Battery

     Perkins Generator Set Powered by 1506A-E88TAG5 Diesel Engine Rated Power 300kVA 50Hz

    Specification of Perkins Diesel Engine:

    Engine ManufacturerPerkins
    Country of OriginThe U.K.
    Engine Model1506A-E88TAG5
    No. of Cylinder6 Cylinder in line
    AspirationTurbocharged and Air to Air Aftercooled
    GovernorElectric
    Engine Max. Output PowerkW261
    DisplacementL8.7
    Compression Ratio16.1 : 1
    Starting VoltageV24
    Boremm116.6
    Strokemm135.9
    Lubrication Oil CapacityL34
    Intake Air FlowM3/Min20
    Fuel Consumption at 100% LoadL/H65

    Perkins Generator Set Powered by 1506A-E88TAG5 Diesel Engine Rated Power 300kVA 50Hz


    Specification of Stamford Alternator:

    Alternator ManufacturerCummins Generator Technologies
    Alternator ModelHCI 444 D
    Alternator BrandStamford
    Rate OutputkVA300
    FrequencyHz50Hz
    AltitudeM≤1000
    InsulationClass H
    Phase3 Phase
    Working Temperature without power decrease≤40℃
    Working Altitude without power decrease≤1000m
    Automatic Voltage RegulationSX440
    Protection GradeIP23
    Alternator for optionalLeroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

    Stamford alternator for 300kVA Perkins Generator Set


    Specification of Control Panel:

    Controller BrandDeepsea
    Controller ModelDSE7320
    Breaker BrandDelixi
    Breaker Capacity (A)630
    Battery ChargerSmartgen Model BAC06A
    Emergency Stop ButtonSupply
    Automatic Mains Fail (AMF)Supply
    Fuel LevelSupply
    Automatic Transfer SwitchATS as optional part
    The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
    Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.
    Quality 300kVA Perkins Generator Set Powered By 1506A-E88TAG5 Diesel Engine for sale
