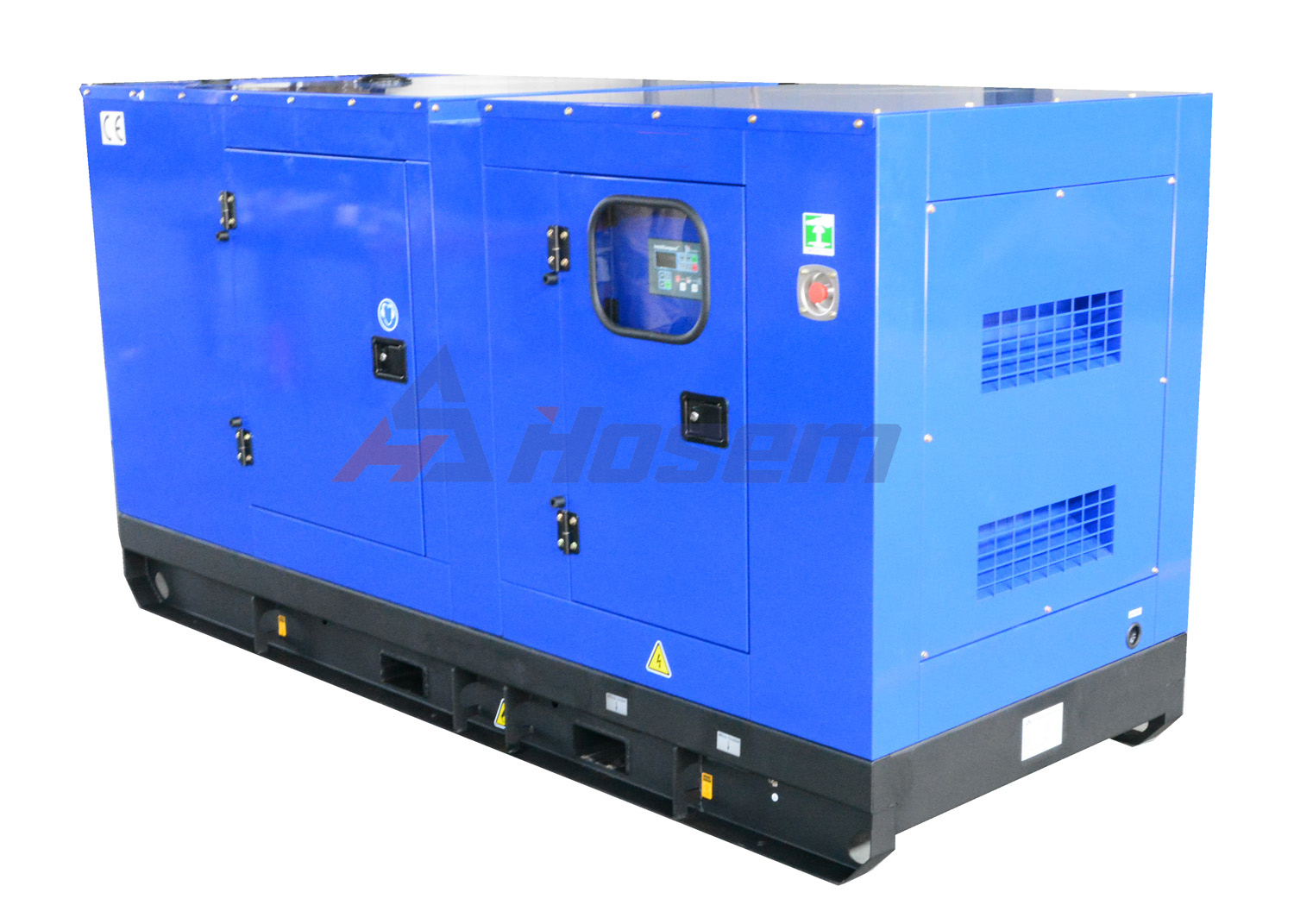

50kva Super Silent 46.5kW Perkins Generator Set For House

Ask Lasest Price
Brand Name :	Hosem
Model Number :	A-P50
Certification :	CE, ISO9001, ISO14001, EPA
Price :	USD6100.00 to USD7500.00
Supply Ability :	300 Sets Per Month
Delivery Time :	25 Days

Add to Cart

Product Details
Company Profile

50kva Super Silent 46.5kW Perkins Generator Set For House

50kVA Super Silent Generator Set For House , Waterproof Generator For Outdoor

Technical Data of 50kVA Super Silent Generator Set:

Model		A-P50
Max. Power	kVA	50
Max. Power	kW	39.6
Rate Power	kVA	45
Rate Power	kW	36
Frequency	Hz	50
Rate Voltage	V	400/230
Rate Current	A	65.0
Fuel Tank Capacity	L	60
Dimension For Open-type Genset	mm	1560 X 750 X 1200
Weight For Open-type Genset	kg	870
Dimension For Soundproof Genset	mm	2300 X 900 X 1250
Weight For Soundproof Generator	kg	1226
Noise Level for Soundproof Generator at 7M	dBA	72
Battery for Starting		Two of Free Maintenance Battery

50kVA Super Silent Generator Set For House , Waterproof Generator For Outdoor

Technical Data of Perkins Diesel Engine:

Engine Manufacturer		Perkins
Engine Brand		Perkins
Engine Model		1103A-33TG1
No. of Cylinder		3 Cylinder in line
Aspiration		Turbocharged
Governor		Electric
Engine Max. Output Power	kW	46.5
Displacement	L	3.3
Compression Ratio		17.25 : 1
Starting Voltage	V	24
Bore	mm	105
Stroke	mm	127
Lubrication Oil Capacity	L	7.8
Intake Air Flow	M³/Min	2.9
Fuel Consumption at 100% Load	L/H	10.7

Technical Data of Stamford Alternator:

Alternator Manufacturer		Cummins Generator Technologies
Alternator Model		UCI 224 D
Alternator Brand		Stamford
Rate Output	kVA	50
Frequency	Hz	50Hz
Altitude	M	≤1000
Insulation		Class H
Phase		3 Phase
Working Temperature without power decrease		≤40℃
Working Altitude without power decrease		≤1000m
Automatic Voltage Regulation		SX460
Protection Grade		IP23
Alternator for optional	Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

50kVA Super Silent Generator Set For House , Waterproof Generator For Outdoor

Technical Data of Control Panel:

Controller Brand	Deepsea
Controller Model	DSE7320
Breaker Brand	Delixi
Breaker Capacity (A)	80
Battery Charger	Smartgen Model BAC06A
Emergency Stop Button	Supply
Automatic Mains Fail (AMF)	Supply
Fuel Level	Supply
Automatic Transfer Switch	ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).


Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Features:

1. Use the Deepsea brand model DSE7320 AMF controller for the 50kVA super silent generator set. The controller will automatic controller the diesel generator start and stop, and it will monitor the mains power for control the diesel generator start and stop.

2. Use the Stamford alternator model UCI 224 D alternator produced by Cummins Generator Technologies with automatic voltage regulation.

3. Supply 10kVA to 2450kVA Perkins diesel generator set for client's choice, it can meet most of the client's requirements.

4. Supply open type diesel generator, soundproof diesel generator and trailer diesel generator to meet each kinds of the users.
