20kVA 404D-22G Diesel Engine Perkins Generator Set For Restaurant

Ask Lasest Price
Brand Name :	Hosem
Model Number :	A-P22S
Certification :	CE, ISO9001, ISO14001, EPA
Price :	USD4200.00 to USD5500.00
Supply Ability :	300Sets Per Month
Delivery Time :	20 Days

Add to Cart

Product Details
Company Profile

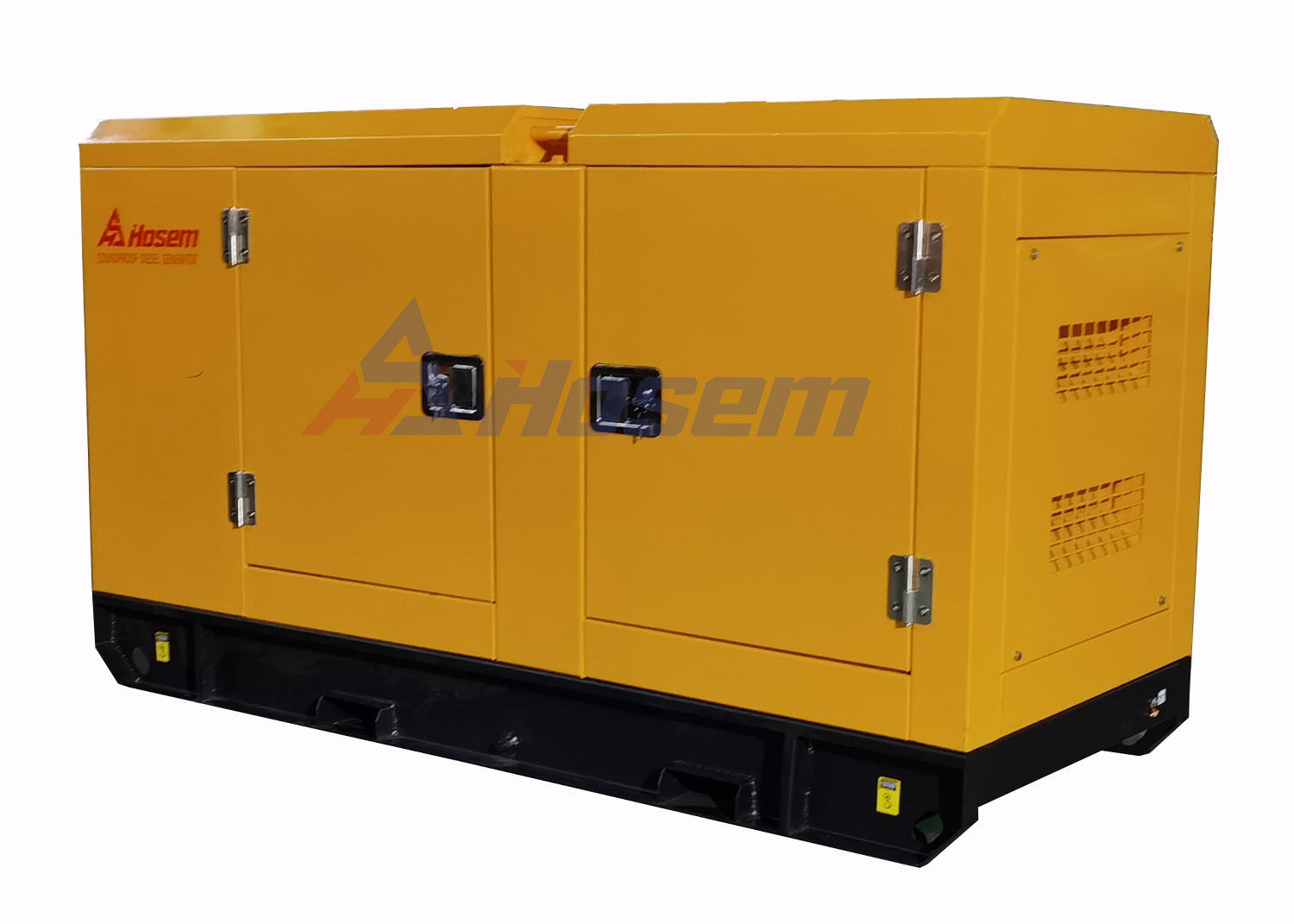

20kVA 404D-22G Diesel Engine Perkins Generator Set For Restaurant

20kVA Diesel Generator with 404D-22G Perkins Diesel Engine for Restaurant

Specification of the 20kVA Diesel Generator:

Model		A-P22
Max. Power	kVA	22
Max. Power	kW	17.6
Rate Power	kVA	20
Rate Power	kW	16
Frequency	Hz	50
Rate Voltage	V	400/230
Rate Current	A	28.9
Fuel Tank Capacity	L	50
Dimension For Open-type Genset	mm	1390 X 550 X 1200
Weight For Open-type Genset	kg	493
Dimension For Soundproof Genset	mm	1950 X 800 X 1250
Weight For Soundproof Generator	kg	673
Noise Level for Soundproof Generator at 7M	dBA	72
Battery for Starting		One of 60A Free Maintenance Battery

20kVA Diesel Generator with 404D-22G Perkins Diesel Engine for Restaurant

Specification of Perkins Diesel Engine:

Engine Manufacturer		Perkins
Engine Brand		Perkins
Engine Model		404D-22G
No. of Cylinder		4 Cylinder in line
Aspiration		Naturally Aspirated
Governor		Mechanical
Engine Max. Output Power	kW	20.6
Displacement	L	2.216
Compression Ratio		23.3 : 1
Starting Voltage	V	12
Bore	mm	84
Stroke	mm	100
Lubrication Oil Capacity	L	10.6
Intake Air Flow	M³/Min	1.45
Fuel Consumption at 100% Load	L/H	5.3

Specification of Stamford Alternator PI 144 D:

Alternator Manufacturer		Cummins Generator Technologies
Alternator Model		PI 144D
Alternator Brand		Stamford
Rate Output	kVA	20
Frequency	Hz	50Hz
Altitude	M	≤1000
Insulation		Class H
Phase		3 Phase
Working Temperature without power decrease		≤40℃
Working Altitude without power decrease		≤1000m
Automatic Voltage Regulation		SX480
Protection Grade		IP23
Alternator for optional	Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

20kVA Diesel Generator with 404D-22G Perkins Diesel Engine for Restaurant

Specification of Control Panel:

Controller Brand	Deepsea
Controller Model	DSE7320
Breaker Brand	Delixi
Breaker Capacity (A)	32
Battery Charger	Smartgen Model BAC06A
Emergency Stop Button	Supply
Automatic Mains Fail (AMF)	Supply
Fuel Level	Supply
Automatic Transfer Switch	ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).


Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Rated output: There is no time limit in the case of variable load operation. In any 250hours of continuous operation period, the variable load of average working load less than 70%of the prime power. The operation time in the situation of 100% prime power no more than 500 hours. Permit 10%overload running1hours in any 12 hours of continuous operation period. The overload 10% power running time of every year no more than 25 hours.

Max. Power: The annual total standby power load should be less than 80% and the average running time shall be less than 200 hours. Among them, the standby power point should be no more than 25 hours a year.
