65kVA Noise Level 65dBA Perkins Dg Set For Office

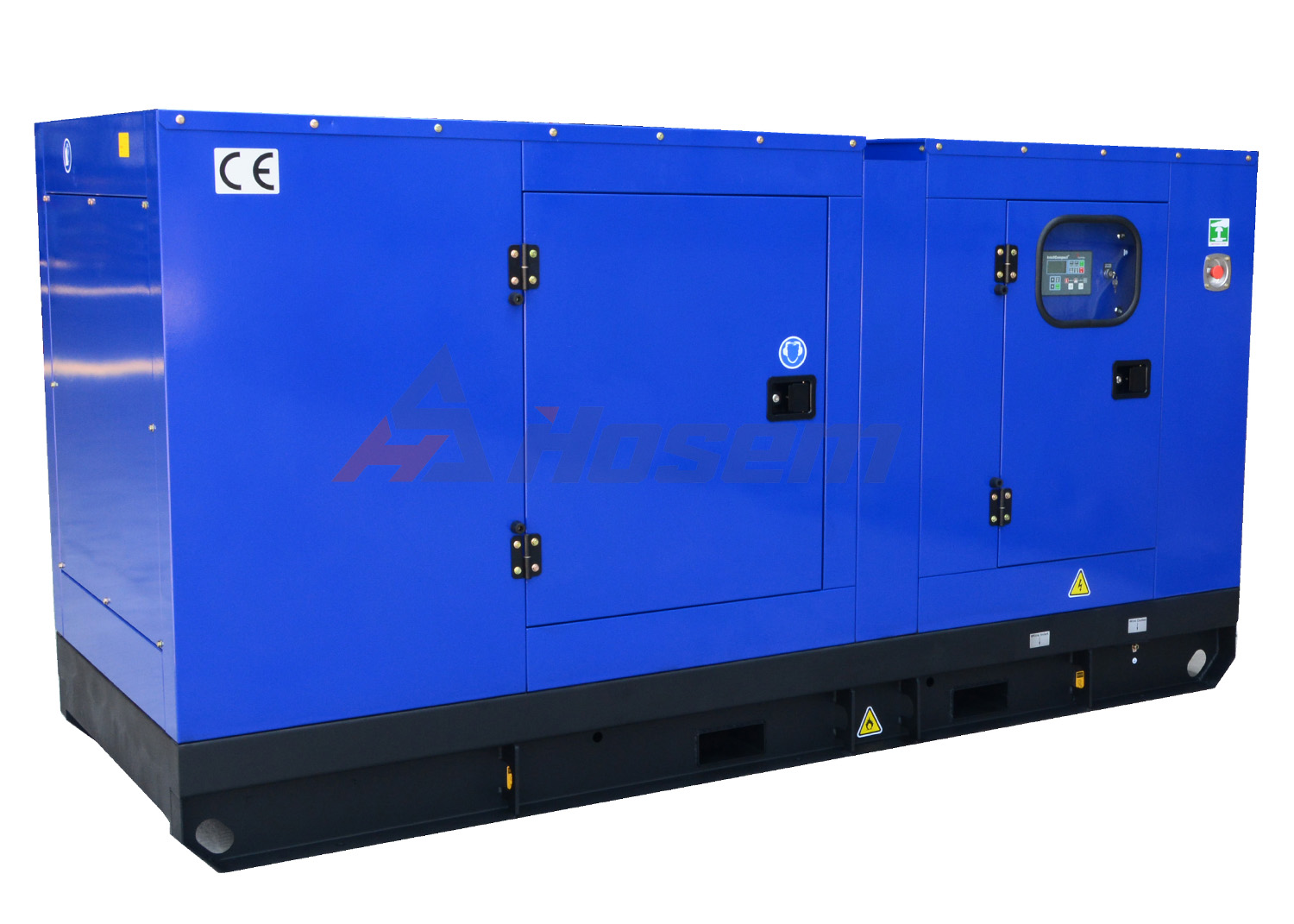

Super Silent Perkins Diesel Generator Rated Power 65kVA Noise Level 65dBA for Office

Datasheet of 65kVA Silent Perkins Diesel Generator Set:

Model		A-P71
Max. Power	kVA	71
Max. Power	kW	57.2
Rate Power	kVA	66
Rate Power	kW	52.8
Frequency	Hz	50
Rate Voltage	V	400/230
Rate Current	A	95.3
Fuel Tank Capacity	L	100
Dimension For Open-type Genset	mm	1860 X 750 X 1200
Weight For Open-type Genset	kg	978
Dimension For Soundproof Genset	mm	2300 X 900 X 1250
Weight For Soundproof Generator	kg	1350
Noise Level for Soundproof Generator at 7M	dBA	65
Battery for Starting		One of 80A Free Maintenance Battery

Silent Perkins Diesel Generator Rated Power 65kVA Noise Level 65dBA for Office

Datesheet of Perkins Diesel Engine:

Engine Manufacturer		Perkins
Engine Brand		Perkins
Engine Model		1104A-44TG1
No. of Cylinder		4 Cylinder in line
Aspiration		Turbocharged
Governor		Mechanical
Engine Max. Output Power	kW	65.6
Displacement	L	4.4
Compression Ratio		17.25 : 1
Starting Voltage	V	12
Bore	mm	105
Stroke	mm	127
Lubrication Oil Capacity	L	7
Intake Air Flow	M³/Min	4
Fuel Consumption at 100% Load	L/H	14.8

Datasheet of Stamford Alternator:

Alternator Manufacturer		Cummins Generator Technologies
Alternator Model		UCI 224 F
Alternator Brand		Stamford
Rate Output	kVA	72
Frequency	Hz	50Hz
Altitude	M	≤1000
Insulation		Class H
Phase		3 Phase
Working Temperature without power decrease		≤40℃
Working Altitude without power decrease		≤1000m
Automatic Voltage Regulation		SX460
Protection Grade		IP23
Alternator for optional	Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

Silent Perkins Diesel Generator Rated Power 65kVA Noise Level 65dBA for Office

Control Panel of Perkins Diesel Generator:

Controller Brand	Deepsea
Controller Model	DSE7320
Breaker Brand	Delixi
Breaker Capacity (A)	125
Battery Charger	Smartgen Model BAC06A
Emergency Stop Button	Supply
Automatic Mains Fail (AMF)	Supply
Fuel Level	Supply
Automatic Transfer Switch	ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).


Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Features of Hosem Power Diesel Generator:

1. Hosem Power supply the diesel generator with CE certificate, ISO9001-2005 certificate, and the diesel generator produce according the ISO8528 international standard.

2. Hosem Power supply rated output from 3kVA to 3000kVA with Open-type diesel generator set, silent diesel generator set, mobile diesel generator set for client optional. The silent diesel generator with waterproof at IP44 standard.

3. Each the offered prime output are no problem for continue running, and each generator set has the ability to run with 110% of prime output for 1hour at each 12hours.

4. The design of the diesel generator can be customized made as client's requirements.
