Three Phase 10kVA Soundproof Perkins Generator Set

Ask Lasest Price
Brand Name :	Hosem
Model Number :	A-P10S
Certification :	CE, ISO9001, ISO14001
Price :	USD3350 - USD4000.00
Supply Ability :	300Sets Per Month
Delivery Time :	25 Days

Add to Cart

Product Details
Company Profile

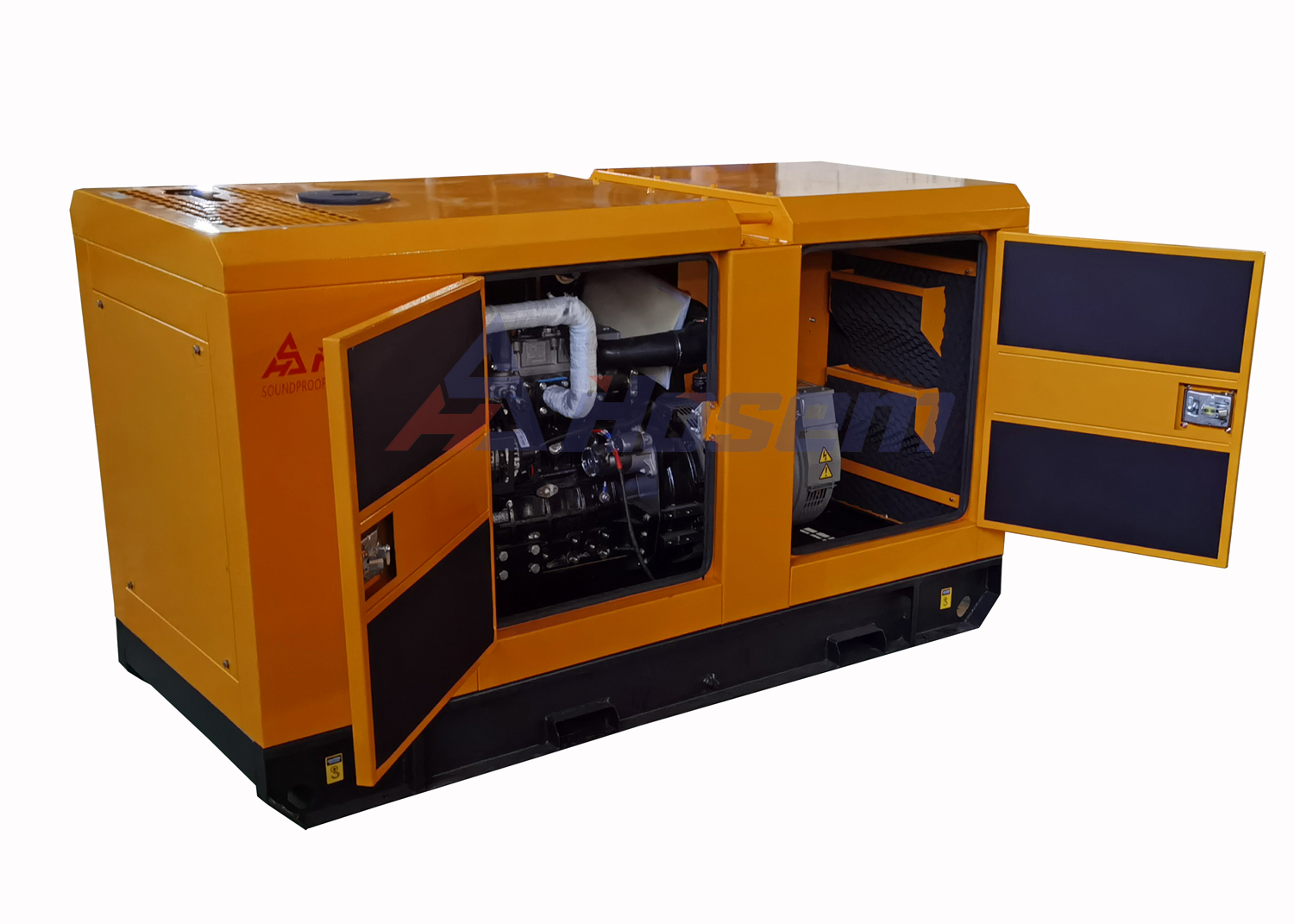

Three Phase 10kVA Soundproof Perkins Generator Set

Three Phase 10kVA Perkis Diesel Generator For House , Soundproof Generator For Outdoor

Supply standby power 10kVA diesel generator powered by Perkins diesel engine model 403A-11G1 and Leroy Somer alternator model TAL-A40-C. The 10kVA Perkins diesel generator use the ComAp brand controller model MRS10 with heavy-duty electric gauges.

Supply Scope of Three Phase 10kVA Perkins Diesel Generator:
1. Perkins diesel engine model 403A-11G1 standby power 9.5kW at 1500r/min.
2. Leroy Somer alternator model TAL-A40-C rated output at 13kVA / 10.4kW at 50Hz.
3. Control panel with ComAp MRS10 controller made in the Czech and heavy-duty electric gauges.
4. Water cooling system with radiator and fan.
5. Base frame with fuel tank capacity at 40Litres for continues running for more than 8hours at 100% load.
6. 3 pole circuit breaker with capacity at 32A for 10kVA Perkins diesel generator.
7. Soundproof and waterproof canopy with the noise level at 68dBA at 7 meters for optional.
8. Dampers for anti-vibration for diesel engine and alternator.
9. One of D.C. 12V free maintenance for starting of Perkins diesel engine.
10. Complete set of documents included diesel engine manual, alternator manual, control panel manual, and diesel generator manual.

Three Phase 10kVA Perkis Diesel Generator For House , Soundproof Generator For Outdoor

Specification of the 10kVA Perkins Diesel Generator:

Generator Set Specification
Model		A-P10
Max. Power	kVA	10
Max. Power	kW	8
Rate Power	kVA	9
Rate Power	kW	7.2
Frequency	Hz	50
Rate Voltage	V	400/230
Rate Current	A	13.0
Fuel Tank Capacity	L	50
Dimension For Open-type Genset	mm	1150 X 550 X 1200
Weight For Open-type Genset	kg	352
Dimension For Soundproof Genset	mm	1750 X 800 X 1150
Weight For Soundproof Generator	kg	532
Noise Level for Soundproof Generator at 7M	dBA	68
Battery for Starting		One of 60A Free Maintenance Battery

Specification of Perkins Diesel Engine:

Engine Manufacturer		Perkins
Engine Brand		Perkins
Engine Model		403D-11G
No. of Cylinder		3 Cylinder in line
Aspiration		Naturally Aspirated
Governor		Mechanical
Engine Max. Output Power	kW	9.5
Displacement	L	1.1
Compression Ratio		23 : 1
Starting Voltage	V	12
Bore	mm	77
Stroke	mm	81
Lubrication Oil Capacity	L	4.4
Intake Air Flow	M³/Min	0.7
Fuel Consumption at 100% Load	L/H	2.6

Three Phase 10kVA Perkis Diesel Generator For House , Soundproof Generator For Outdoor

Specification of Leroy Somer Alternator:

Alternator Manufacturer		Leroy Somer
Alternator Model		TAL-A40-C
Alternator Brand		Leroy Somer
Rate Output	kVA	13
Frequency	Hz	50Hz
Altitude	M	≤1000
Insulation		Class H
Phase		3 Phase
Working Temperature without power decrease		≤40℃
Working Altitude without power decrease		≤1000m
Automatic Voltage Regulation		R205
Protection Grade		IP23
Alternator for optional	Stamford, Marathon, Mecc Alte and Hosem Brushless alternator for optional

Specification of Control Panel:

Controller Brand	ComAp
Controller Model	MRS10
Breaker Brand	Delixi
Breaker Capacity (A)	32
Battery Charger	Smartgen Model BAC06A
Emergency Stop Button	Supply
Automatic Mains Fail (AMF)	Supply
Fuel Level	Supply
Automatic Transfer Switch	ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).


Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

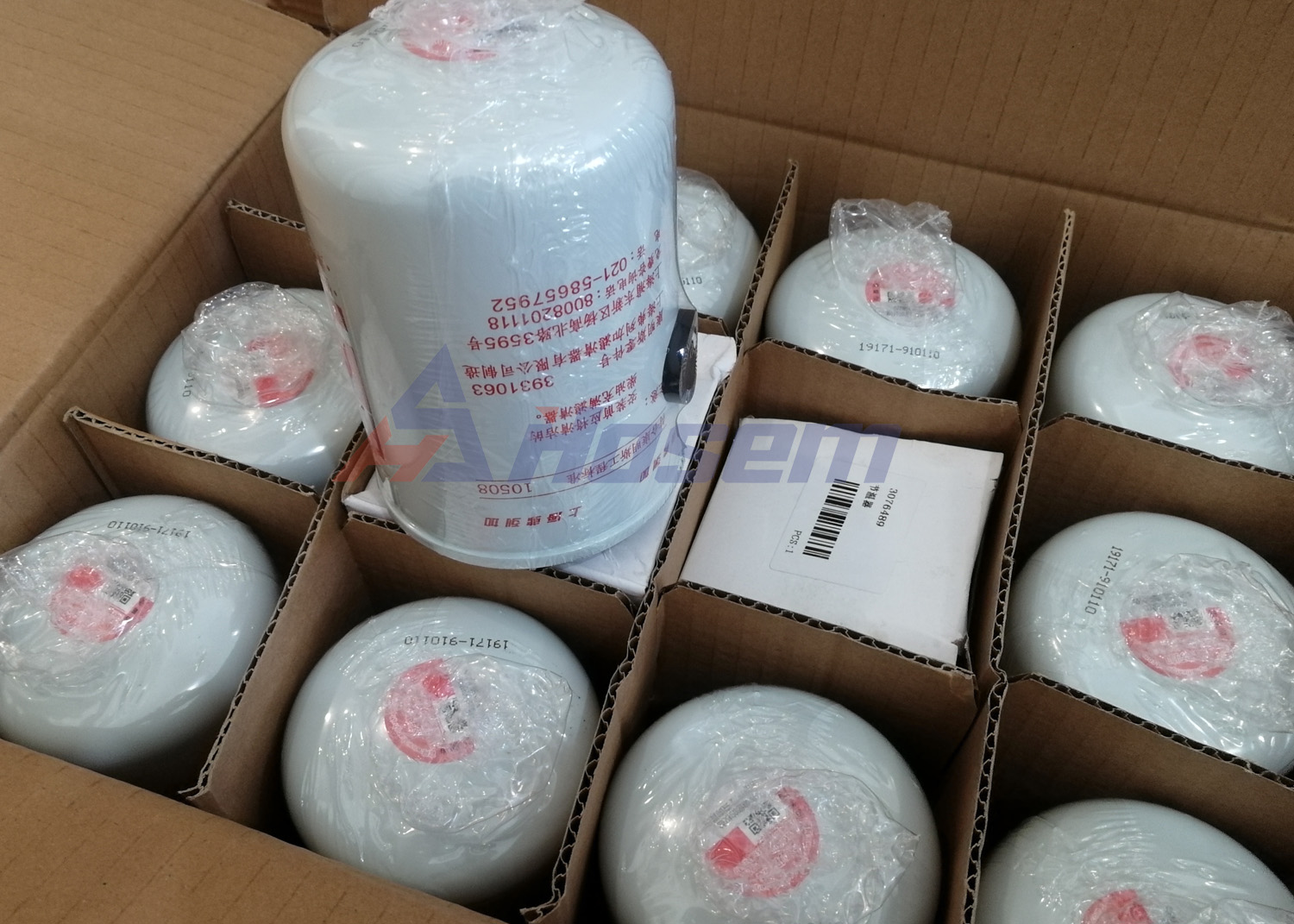

Hosem Power Supply all kinds spare parts of diesel generator set

Spare Parts of diesel engine included Cummins, Perkins, Deutz, Volvo, Doosan, SDEC, Yuchai Ricardo and other famous brand diesel engine are available in Fuzhou Hosem Power Co., Ltd.
