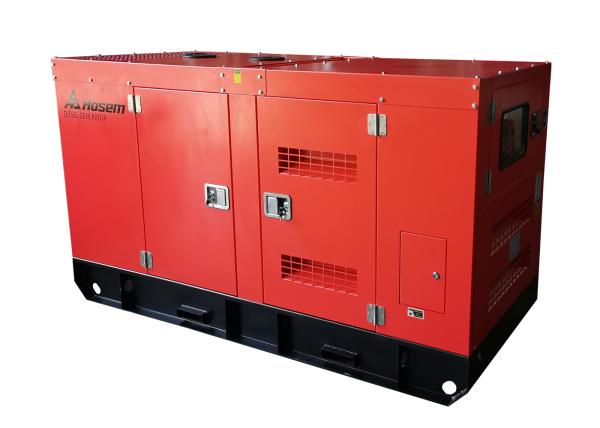

60kw Silent Diesel Generators 75kVA Power Gen Set , Cummins Engine
Diesel Generator
Specification:
| Model | A-C83 |
| Standby Power | kVA | 83 |
| kW | 66 |
| Prime Power | kVA | 75 |
| kW | 60 |
| Frequency | Hz | 50 |
| Output Voltage | V | 400/230 |
| Oil Consumption | L/H | 0.056 |
| Dimension For Open-type | mm | 1820 X 750 X 1050 |
| Weight For Open-type | kg | 1050 |
| Dimension For Soundproof | mm | 2300 X 900 X 1250 |
| Weight For Soundprof | kg | 1360 |
| Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd. |
| Engine Model | 4BTA3.9-G11 |
| No.of Cylinder | 4 Cylinder in line |
| Bore | mm | 102 |
| Stroke | mm | 120 |
| Displacement | L | 3.9 |
| Cooling Fan Air Flow | m3/min | 135.6 |
| Compress Air Flow | m3/min | 4.13 |
| Exhaust Gas Flow | m3/min | 9.96 |
| Exhaust Gas Temperature | ℃ | 475 |
| Lubrication Oil Capacity | L | 11 |
| Cooling Water Capacity | L | 28 |
| Starting Voltage | V | 24 |
| Engine Max.Output Power | kW | 80 |
| Alternator Manufacturer | Cummins Generator Technolgoies |
| Alternator Model | UCI 224 G |
| Alternator Brand | Stamford |
| Rate Output | kVA | 85 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Protection Grade | IP23 |
| Alternator for choice | We also have Leroy Somer, Marathon, Mecc Alte and Chinese brand
Brushless alternator for your choice. |
| Control Panel Model | AF500 |
| Controller | Deepsea Brand Model DSE7320 |
| Function of control panel | Automatic genset start/stop |
| Automatic battery charger |
| Emergency stop |
| AMF (Automatic Mains Fault) |
| Remote control |
| Micro-processor based design |
| LED alarm indication and Sound alarm |
| Display of the controller | Generator voltage: Uab, Ubc, Uca |
| Generator current: Ua, Ub, Uc |
| Generator temp.: ℃/℉ both display |
| Generator frequency: Hz |
| Generator power: kW, kVA, kWh, kVAr, kVArh, kVAh |
| Generator starts count: 999999 times (Max) |
| Generator pressure: kPa/Psi/Bar both display |
| Charging Voltage: V |
| Battery Voltage: V DC |
| Protection of Diesel Generator | Over / Under Speed Alarm and Shutdown |
| Start / Stop Failure Alarm |
| Over Current Alarm and Shutdown |
| Under / Over Generator Voltage Alarm and Shutdown |
| Low Oil Pressure Alarm and Shutdown |
| High Engine Temperature Alarm and Shutdown |
| Over Load Alarm and Shutdown |
| Low and High Battery Voltage Alarm |
| Lose of Speed Signal Alarm and Shutdown |
| Charge Fail Alarm |
Who We are?
Hosem Power was found in 2006, and have been working in this
industry for 14 years. Most members of Hosem Power have more than
10 years of experience in the generator area, Our mechanical
engineers, electrical engineers have more than 20 years of
experience in the generator area.
How about Our Quality?
We strictly comply with ISO 8528 standards for production, our
products have a good performance in sound, in addition, our canopy
adopt three layers of high-temperature spray technology, as well as
special anti rust treatment, even in the outdoor for a long time,
it is not easy to rust.
Our strictly testing before shipment.
1) Parts faults testing
2) Fuel tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insulation testing
6) Noise testing
7) Loading Testing: 25%, 50%, 75%, 100%, 110% load to check verify
that all control systems, alarm and shut-down protection.
What are We Supply?
We Supply industrial generator, welding generator, marine
generator, and GPU, Power from 1kVA to 2000kVA.
Brands include:
Engine: Cummins, Perkins, Deutz, Volvo Penta, Doosan, Mitsubishi,
Kubota, Yammar, Isuzu, Nissan, Yuchai, SDEC, Ricardo, FAW and so
on.
Alternator: Stamford, Marathon, Leroy Somer, Mecc Alte, and Chinese
Reliable Brands.
Controller: Deepsea, ComAp, Smartgen and so on.
Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes
first.
2) During the guarantee period, the spare-parts will be sent
through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
Q1: Any advantages about your company?
-- Fast delivery time
-- Good design and high quality
-- Good service after sale
-- High quality with good price help you get more benefit and beat
your competitors
Q2: Can you supply OEM service?
Yes, we can offer OEM service
Q3: How about the service after sale?
We have agents spread all over the world, our service network
spanning more than 50 countries so we can ensure fast and good
service for our clients. We are recruiting agents, welcome you to
be our friend and get a win-win cooperation.
