30kVA 65dBA JE493ZDB-04 Isuzu Generator Set

Ask Lasest Price
Brand Name :	Hosem Power
Model Number :	A-I30S
Certification :	CE/ISO9001
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	500 unit per month
Delivery Time :	30 days

Add to Cart

Product Details
Company Profile

30kVA 65dBA JE493ZDB-04 Isuzu Generator Set

30kVA Isuzu Generator Set , Prime Diesel Generator , 65dBA Silent Generator , JE493ZDB-04

Features and benefits:

Tightly structure, excellent design and craft
Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
Self-diagnostic capability simplifies troubleshooting
LCD display shows system status and setup information
Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
Soundproof type: Very quite running–65dB(A)at 7m at normal load.
Enclosed muffler for added quietness
Service and maintenance accessible through easy-latch side service door.

Technical Specifications :
Genset:

Model		A-I33S-1
Standby Power	kVA	30
Standby Power	kW	24
Prime Power	kVA	28
Prime Power	kW	23
Frequency	Hz	50
Output Voltage	V	400/230
Oil Consumption	L/H	0.07
Dimension For Open-type	mm	1560 X 680 X 1600
Weight For Open-type	kg	630
Dimension For Soundproof	mm	1950 X 900 X 1200
Weight For Soundprof	kg	960

Engine:
Main features:

Four-cylinder, water-cooled, in-line diesel engine
Efficient fuel system for max power output and durability
Large-capacity air cleaner
Cost effective, fuel efficient and reliable performance
Functional engine with compact structure
Excellent after-sales service and sufficient spare parts supplying
Easy installation and ready access for routine maintenance.

Engine JE493ZDB-04

Engine Manufacturer		Jiangxi Isuzu Engine Ltd.
Engine Brand		Isuzu
Engine Model		JE493ZDB-04
No.of Cylinder		4 Cylinder in line
Bore	mm	93
Stroke	mm	102
Displacement	L	2.771
Cooling Fan Air Flow	m3/min	2080
Compress Air Flow	m3/min	18.2
Exhaust Gas Flow	m3/min	7.86
Exhaust Gas Temperature	℃	500
Lubrication Oil Capacity	L	4.5
Cooling Water Capacity	L	10
Starting Voltage	V	12
Engine Max.Output Power	kW	31

Stamford Alternator:
Main features:

Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
2/3 pitch winding as standard, to avoid excessive neutral currents
Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
Easy access for installation and maintenance
IP23 as standard
Self-excited control system
Resist of corruption of oil and acid

Stamford PI 144 G

Alternator Manufacturer		Cummins Generator Technologies
Alternator Brand		Stamford
Alternator Model		PI 144G
Rate Output	kVA	30
Frequency	Hz	50
Altitude	M	≤1000
Insulation		Class H
Protection Grade		IP23
Alternator for choice	We also have Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator for your choice.

30kVA Isuzu Generator Set , Prime Diesel Generator , 65dBA Silent Generator , JE493ZDB-04

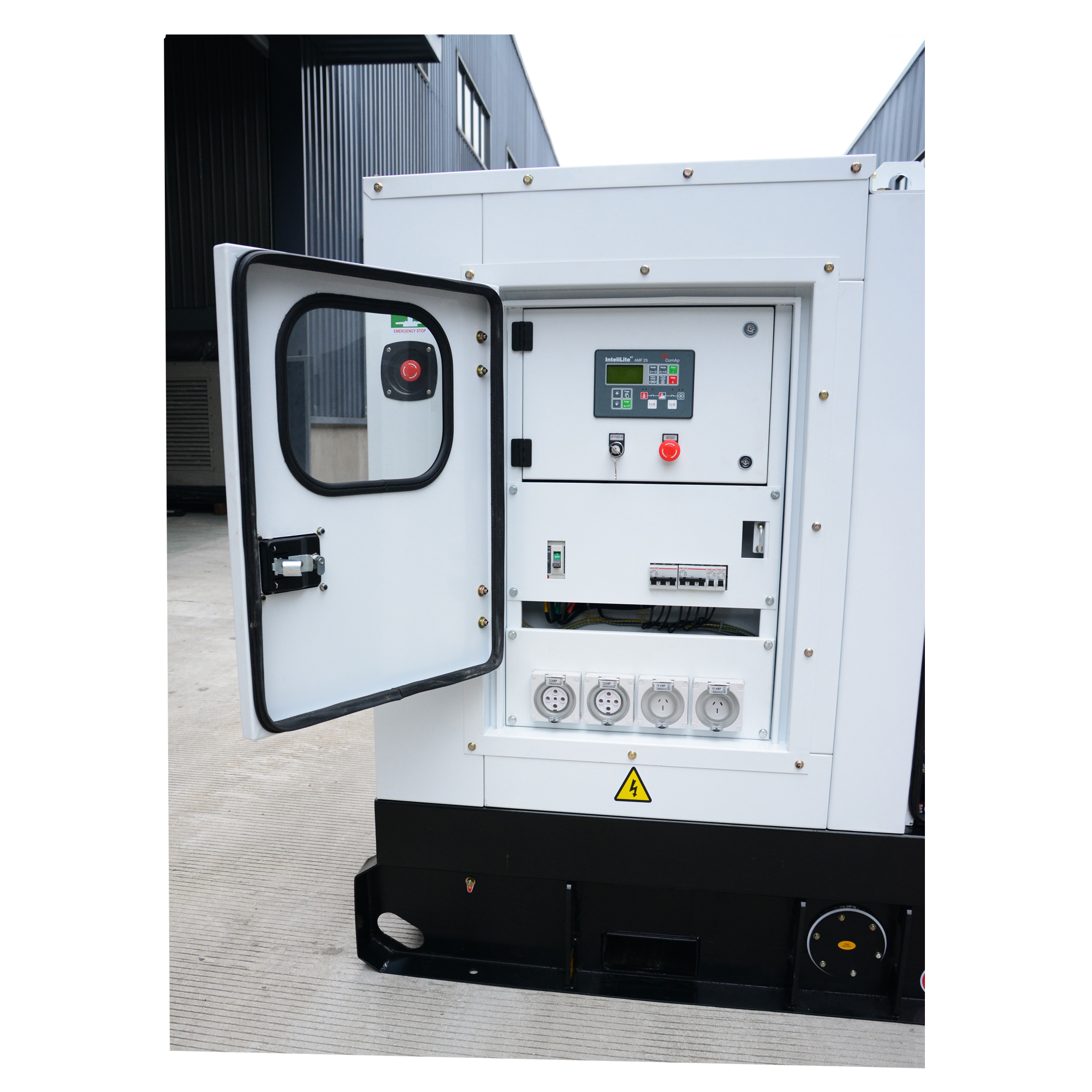

Controller features:

Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
Security password-protected programming levels
All parameters use digital modulation, with higher reliability and stability
Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
Power supply range is wide, accommodating to different starting battery voltage environment
Built-in watch dog can never be dead halt, ensuring smooth program execution
Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installatio

Control Panel Model	AF500
Controller	Deepsea Brand Model DSE7320
Function of control panel	Automatic genset start/stop
	Automatic battery charger
	Emergency stop
	AMF (Automatic Mains Fault)
	Remote control
	Micro-processor based design
	LED alarm indication and Sound alarm
Display of the controller	Generator voltage: Uab, Ubc, Uca
	Generator current: Ua, Ub, Uc
	Generator temp.: ℃/℉ both display
	Generator frequency: Hz
	Generator power: kW, kVA, kWh, kVAr, kVArh, kVAh
	Generator starts count: 999999 times (Max)
	Generator pressure: kPa/Psi/Bar both display
	Charging Voltage: V
	Battery Voltage: V DC
Protection of Diesel Generator	Over / Under Speed Alarm and Shutdown
	Start / Stop Failure Alarm
	Over Current Alarm and Shutdown
	Under / Over Generator Voltage Alarm and Shutdown
	Low Oil Pressure Alarm and Shutdown
	High Engine Temperature Alarm and Shutdown
	Over Load Alarm and Shutdown
	Low and High Battery Voltage Alarm
	Lose of Speed Signal Alarm and Shutdown
	Charge Fail Alarm

Workershop:
Hosem Power
Our advantages :
1.Inspection

1. Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.

2. All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.

3. All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.

2.Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
Our Service :
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.

Q1: Any advantages about your company?
-- Fast delivery time
-- Good design and high quality
-- Good service after sale
-- High quality with good price help you get more benefit and beat your competitors
Q2: Can you supply OEM service?
Yes, we can offer OEM service
Q3: How about the service after sale?
We have agents spread all over the world, our service network spanning more than 50 countries so we can ensure fast and good service for our clients. We are recruiting agents, welcome you to be our friend and get a win-win cooperation.
