110kVA Outdoor SDEC 4HTAA4.3-G21 Waterproof Generator

Ask Lasest Price
Brand Name :	Hosem Power
Certification :	CE/ISO9001
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	500 unit per month
Delivery Time :	30 days

Add to Cart

Product Details
Company Profile

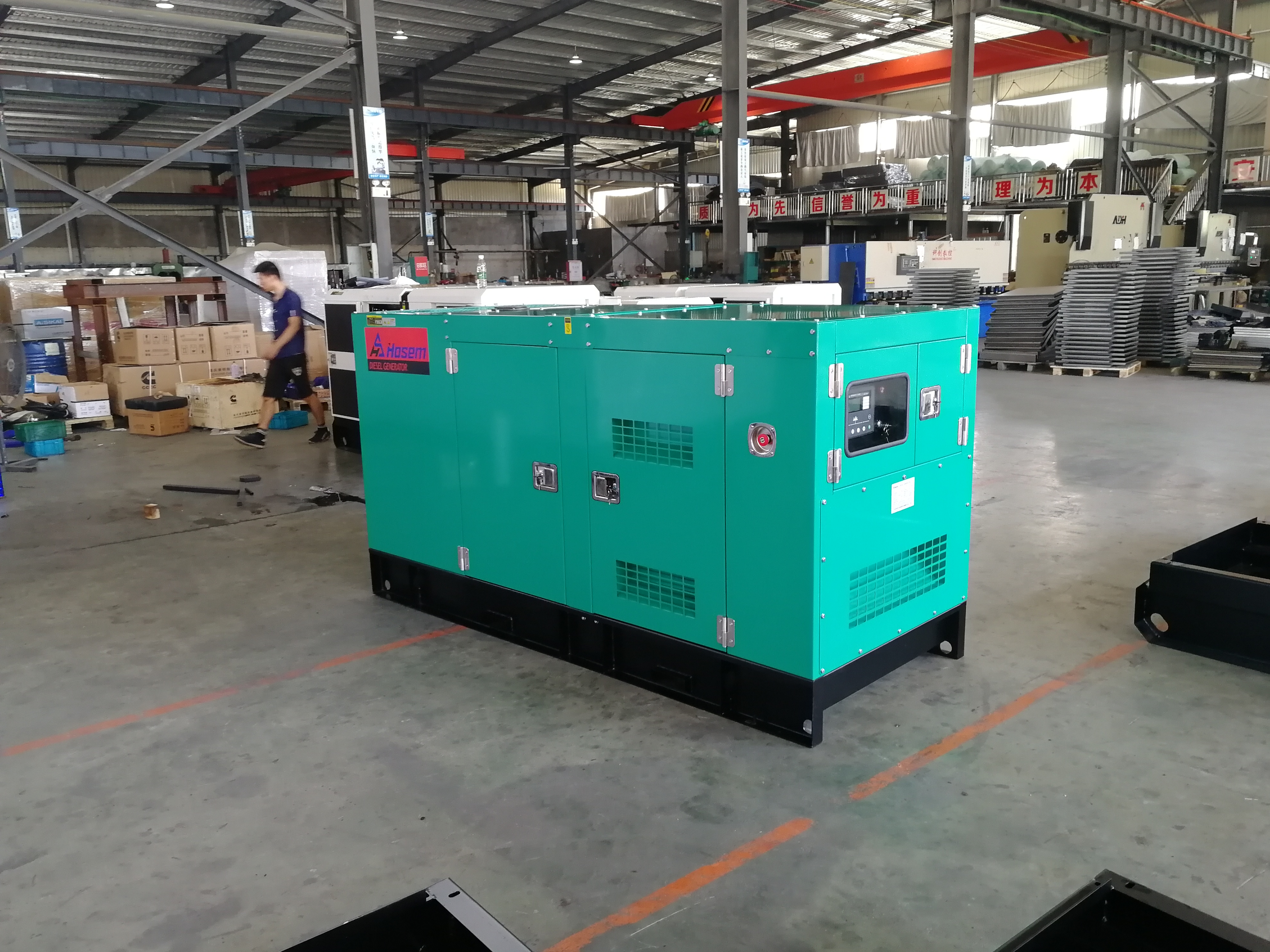

110kVA Outdoor SDEC 4HTAA4.3-G21 Waterproof Generator

Shangchai Diesel Generator Set , 100kVA Chinese Diesel Generator Set , Waterproof Generator for Outdoor

Specification:

Model		A-SH121H
Standby Power	kVA	121
	kW	97
Prime Power	kVA	110
	kW	88
Frequency	Hz	60
Output Voltage	V	230
Oil Consumption	L/H	0.097697013
Dimension For Open-type	mm	2240 X 850 X 1450
Weight For Open-type	kg	1600
Dimension For Soundproof	mm	2800X 1080 X 1500
Weight For Soundprof	kg	2250
Noise For Soundproof	dBA	75
Engine Brand		SDEC
Engine Model		4HTAA4.3-G21
No.of Cylinder		4 Cylinder in line
Bore	mm	111
Stroke	mm	139
Aspiration		Naturally Aspirated
Rate Speed	R.P.M.	1800
Governor		Mechanical
Lubrication Oil Capacity	L	19
Starting Voltage	V	139
Engine Max.Output Power	kW	8.071
Alternator Model		UCI 224 G
Alternator Brand		Stamford
Frequency	Hz	60
Altitude	M	≤1000
Insulation		Class H
Protection Grade		IP23
Alternator for choice	We also have Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator for your choice.
Control Panel Model	AF500
Controller	Deepsea Brand Model DSE7320
Function of control panel	Automatic genset start/stop
	Automatic battery charger
	Emergency stop
	AMF (Automatic Mains Fault)
	Remote control
	Micro-processor based design
	LED alarm indication and Sound alarm
Display of the controller	Generator voltage: Uab, Ubc, Uca
	Generator current: Ua, Ub, Uc
	Generator temp.: ℃/℉ both display
	Generator frequency: Hz
	Generator power: kW, kVA, kWh, kVAr, kVArh, kVAh
	Generator starts count: 999999 times (Max)
	Generator pressure: kPa/Psi/Bar both display
	Charging Voltage: V
	Battery Voltage: V DC
Protection of Diesel Generator	Over / Under Speed Alarm and Shutdown
	Start / Stop Failure Alarm
	Over Current Alarm and Shutdown
	Under / Over Generator Voltage Alarm and Shutdown
	Low Oil Pressure Alarm and Shutdown
	High Engine Temperature Alarm and Shutdown
	Over Load Alarm and Shutdown
	Low and High Battery Voltage Alarm
	Lose of Speed Signal Alarm and Shutdown
	Charge Fail Alarm

FAQ
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.
Q: What is your lead time?
A: About 20-30 days after receiving advance deposit or original L/C.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificates for different countries such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.
Q: What warranty do you provide?
A: One year, during the guarantee period, we will supply free of the easily damaged parts for the possible problems except for the incorrect operation. After expiration, we supply cost spare parts for Genset maintenance.
