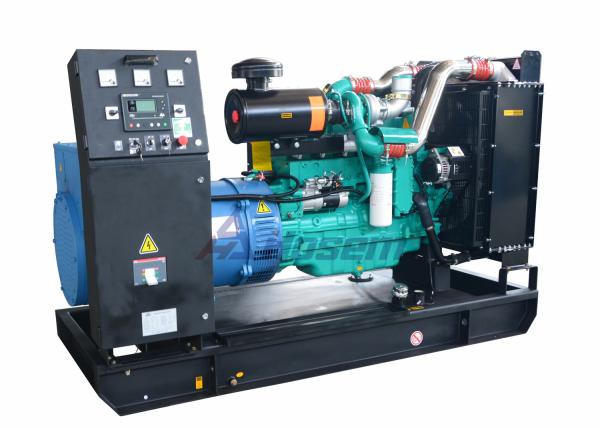

100kva Open 80kw Cummins Diesel Generator Set For Industrial

Product Categories

Fuzhou Hosem Power Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 100kva Open 80kw Cummins Diesel Generator Set For Industrial
Brand: Hosem
Price: 6300.0 USD

Add to Cart

100kVA Cummins Diesel Generator Set For Industrial 50Hz Industrial Diesel Generator Set

Specification of 100kVA Cummins Diesel Generator Set:

Model		A-C110
Max. Power	kVA	110
Max. Power	kW	88
Rate Power	kVA	100
Rate Power	kW	80
Frequency	Hz	50
Rate Voltage	V	400/230
Rate Current	A	144.3
Fuel Tank Capacity	L	550
Dimension For Open-type Genset	mm	2180 X 820 X 1200
Weight For Open-type Genset	kg	1200
Dimension For Soundproof Genset	mm	2900 X 1080 X 1500
Weight For Soundproof Generator	kg	1700
Noise Level for Soundproof Generator at 7M	dBA	75
Battery		Two of 80Amps Free Maintenance Battery

100kVA Cummins Diesel Generator Set For Industrial 50Hz Industrial Diesel Generator Set

Specification of Cummins Diesel Engine 6BT5.9-G2:

Engine Manufacturer		Dongfeng Cummins Engine Co., Ltd.
Engine Brand		Cummins
Engine Model		6BT5.9G2
No. of Cylinder		6 Cylinder in line
Aspiration		Turbocharged
Governor		Electric
Engine Max. Output Power	kW	106
Displacement	L	5.9
Compression Ratio		17.3 : 1
Starting Voltage	V	24
Bore	mm	102
Stroke	mm	120
Lubrication Oil Capacity	L	16.4
Intake Air Flow	M³/Min	5.8
Fuel Consumption at 100% Load	L/H	22
Governor Regulation		<3%

Specification of Stamford Alternator UCI 274 C:

Alternator Manufacturer		Cummins Generator Technologies
Alternator Model		UCI 274 C
Alternator Brand		Stamford
Rate Output	kVA	100
Frequency	Hz	50Hz
Altitude	M	≤1000
Insulation		Class H
Phase		3 Phase
Working Temperature without power decrease		≤40℃
Working Altitude without power decrease		≤1000m
Automatic Voltage Regulation		SX440
Protection Grade		IP23
Alternator for optional	Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

100kVA Cummins Diesel Generator Set For Industrial 50Hz Industrial Diesel Generator Set

Specification of Control Panel for 100kVA Cummins Diesel Generator:

Controller Brand	Deepsea
Controller Model	DSE7320
Breaker Brand	Delixi
Breaker Capacity (A)	160
Battery Charger	Smartgen Model BAC06A
Emergency Stop Button	Supply
Automatic Mains Fail (AMF)	Supply
Fuel Level	Supply
Automatic Transfer Switch	ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).


Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

100kVA Cummins Diesel Generator Set For Industrial 50Hz Industrial Diesel Generator Set

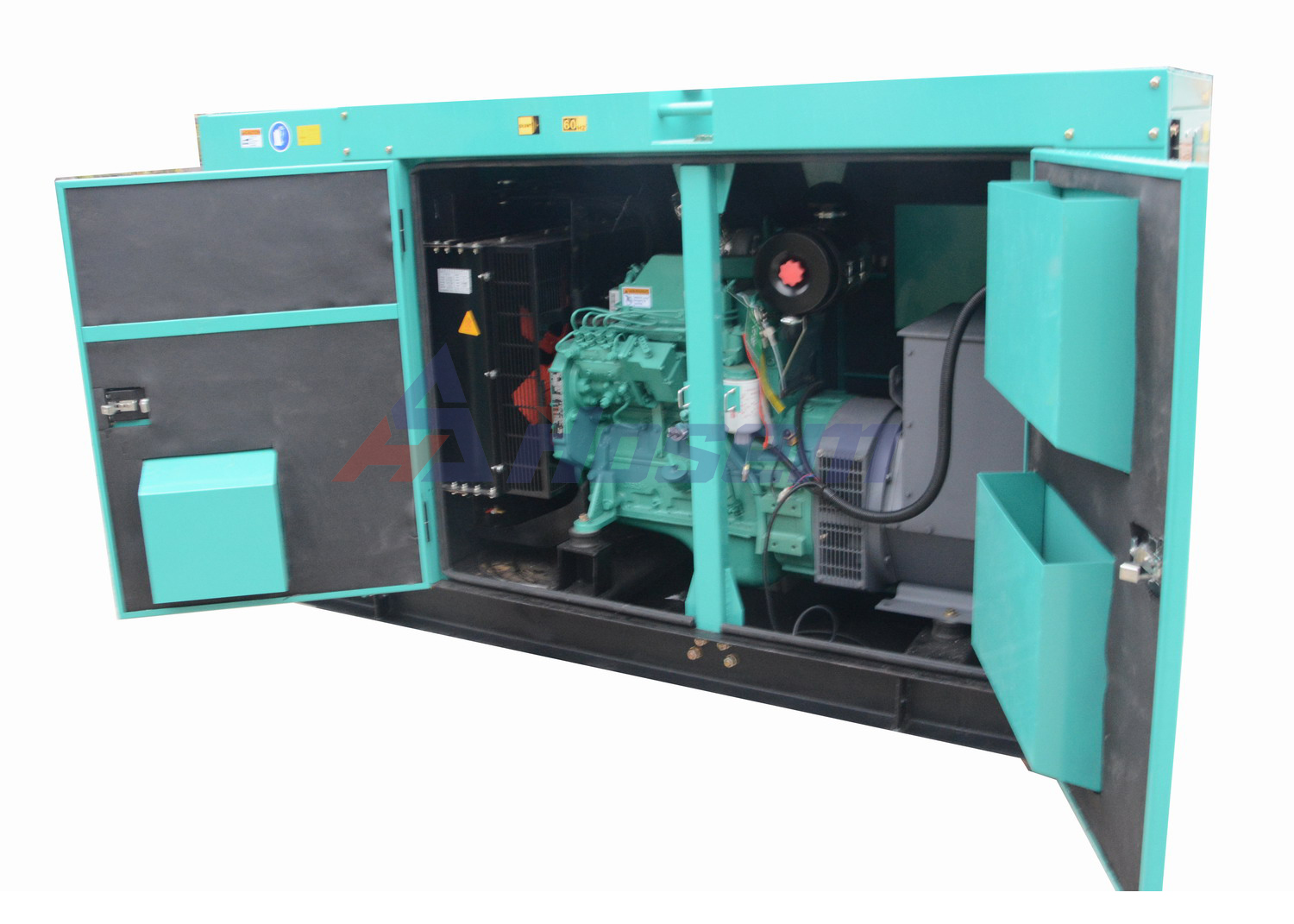

Soundproof type diesel generator for optional
