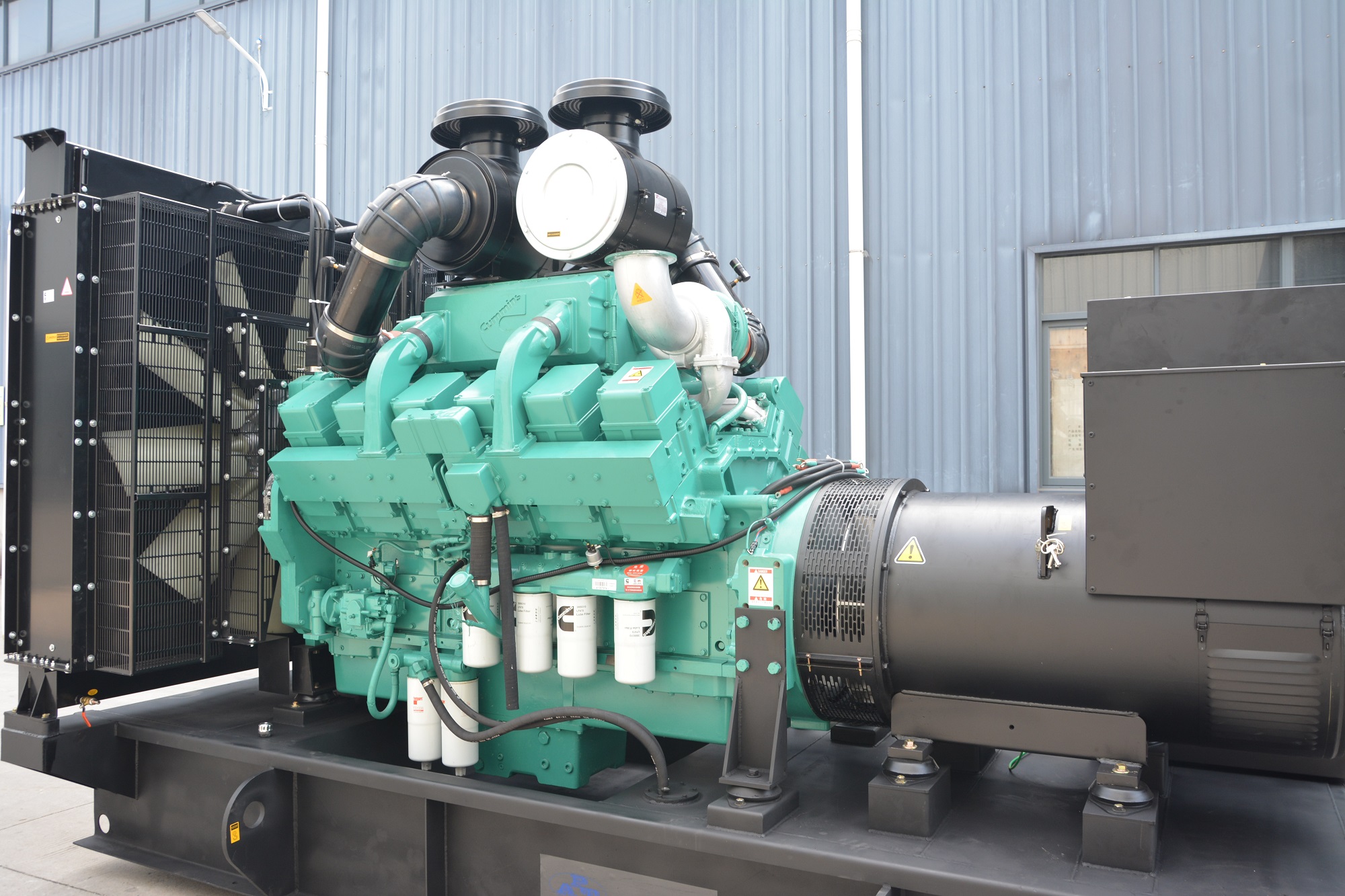

Cummins Diesel Generator Set, 825kW Cummins Generator, 750kW
Cummins Generator Set, Cummins Open Type
Specification:
| Generator Set Specification |
| Model | A-C1031H |
| Max. Power | kVA | 1031 |
| kW | 825 |
| Rate Power | kVA | 938 |
| kW | 750 |
| Frequency | Hz | 60 |
| Rate Voltage | V | 220/127 |
| Rate Current | A | 2460.4 |
| Dimension For Open-type Genset | mm | 4251 X 1850 X 2400 |
| Weight For Open-type Genset | kg | 7650 |
| Dimension For Soundproof Genset | mm | 6058 X 2438 X 2591 |
| Weight For Soundproof Generator | kg | 9800 |
| Engine Specification |
| Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd. |
| Engine Brand | Cummins |
| Engine Model | KTA38-G2B |
| No. of Cylinder | 12 Cylinder V Type |
| Aspiration | | Turbocarged and Air to Air Aftercooed |
| Governor | Electric |
| Engine Max. Output Power | kW | 920 |
| Displacement | L | 37.8 |
| Starting Voltage | V | 24 |
| Bore | mm | 159 |
| Stroke | mm | 159 |
| Lubrication Oil Capacity | L | 135 |
| Alternator Specification |
| Alternator Manufacturer | Cummins Generator Technologies |
| Alternator Model | LVI 634 B |
| Alternator Brand | Stamford |
| Rate Output | kVA | 1000 |
| Frequency | Hz | 60Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Voltage Regulation | AVR Model SX460 |
| Protection Grade | IP23 |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for
optional |
|
Standard Configuration
Canopy raw material is galvanized and cold rolled steel also
available, thickness reach to 2mm, surface is smooth & unsmooth for
options, any types can be designed.
Grounded fuel tank with forklift holes, consumption time can last
for 8hrs or longer.
Brushless alternators are produced by ourselves, copper wires are
adopted from listed companies, insulation reach to H class.
Foam thickness is 2.5cm and with strong density, it is better for
soundproof perfomance.
Control modules are SMARTGEN, DATAKOM, DEEPSEA and COMAP brands
etc.
CHNT circuit breaker, SMARTGEN battery charger.
Governor with electric or mechanic system.
Maintenance-free battery in our adoption.
Open, Silent/Super silent, Trailer, types and so on.
Our generator compliance with standards CCC/CE/IAF/ISO9001:2008
Quality management systems-Requirements.
FAQ
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100%
irrevocable L/C at sight.
Q: What is your lead time?
A: About 20-30 days after receiving advance deposit or original
L/C.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificates for
different countries such as SONCAP for Nigeria, COI for Iran, SASO
for Saudi Arabia, etc.
Q: What warranty do you provide?
A: One year, during the guarantee period, we will supply free of the easily damaged parts for the possible problems except for
the incorrect operation. After expiration, we supply cost spare parts for Genset maintenance.
