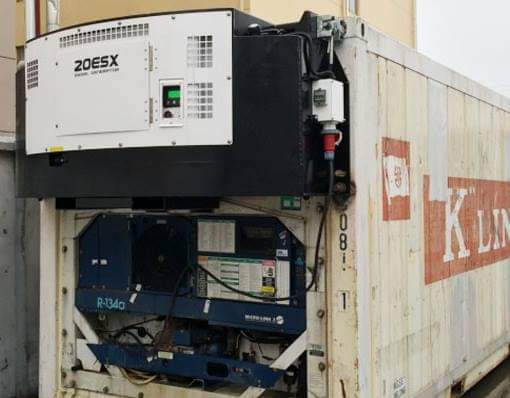

Diesel Generator For Reefer Container , Genset Clip-On Reefer
Container With Kubota , Perkins Engine
The 20ESX genset is the result of years of experience in designing
and maintaining units for different climatic and operational
conditions, and benefits from the most advanced technologies and a
highly reliable design.
This translates into a low emission, reliable source of electric
power for refrigerated containers, no matter the ambient
temperature or the load. The 20ESX product range offers different
mounting options for containers, whether they are stationary or
travel by rail or road.

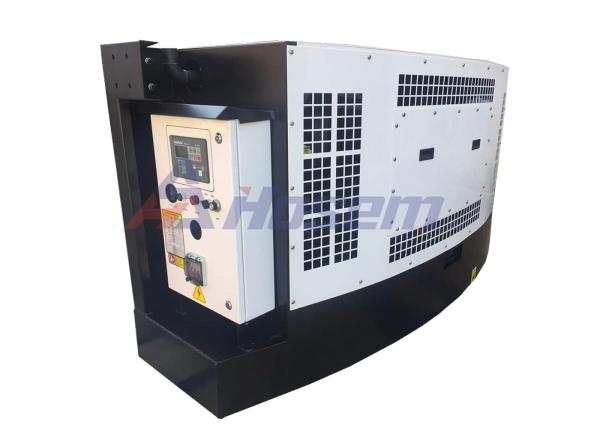

Specification of Hosem Genset Clip-on Reefer Container
| Model | 20ESX |
| Standby Power | kVA | 23 |
| kW | 18 |
| Prime Power | kVA | 20 |
| kW | 16 |
| Frequency | Hz | 50 |
| Output Voltage | V | 400/230 |
| Oil Consumption | L/H | 4.5 100% load |
| Dimension For Soundproof | mm | 2300 X 1053 X 710 |
| Weight For Soundprof | kg | 818 |
| Engine Manufacturer | Forward Engine (Beijing) Machinery Equipment Co., Ltd. |
| Engine Brand | Kubota |
| Engine Model | V-2003-T-E2BG-CHN-1 |
| No.of Cylinder | 4 Cylinder in line |
| Bore | mm | 83 |
| Stroke | mm | 92 |
| Displacement | L | 2 |
| Cooling Fan Air Flow | m3/min | 2080 |
| Compress Air Flow | m3/min | 18.2 |
| Exhaust Gas Flow | m3/min | 5.24 |
| Exhaust Gas Temperature | ℃ | 500 |
| Lubrication Oil Capacity | L | 4.5 |
| Cooling Water Capacity | L | 10 |
| Starting Voltage | V | 12 |
| Engine Max.Output Power | kW | 27 |
| Alternator Manufacturer | Cummins Generator Technologies |
| Alternator Brand | Stamford |
| Alternator Model | PI 144H |
| Rate Output | kVA | 21 |
| Frequency | Hz | 50 |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Protection Grade | IP23 |
| Alternator for choice | We also have Leroy Somer, Marathon, Mecc Alte and Chinese brand
Brushless alternator for your choice. |
Digital Control panel
Controller Brand: Smartgen, Deepsea,ComAp
Control Panel: English interface, LED screen, and touch buttons.
Main Functions:
1- Display loading power, voltage, current, frequency, speed,
temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over
current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection,
over/under/imbalance voltage protection, and low oil shutdown .
FAQ
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100%
irrevocable L/C at sight.
Q: What is your lead time?
A: About 20-30 days after receiving advance deposit or original
L/C.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificates for
different countries such as SONCAP for Nigeria, COI for Iran, SASO
for Saudi Arabia, etc.
Q: What warranty do you provide?
A: One year, during the guarantee period, we will supply free of the easily damaged parts for the possible problems except for
the incorrect operation. After expiration, we supply cost spare parts for Genset maintenance.
