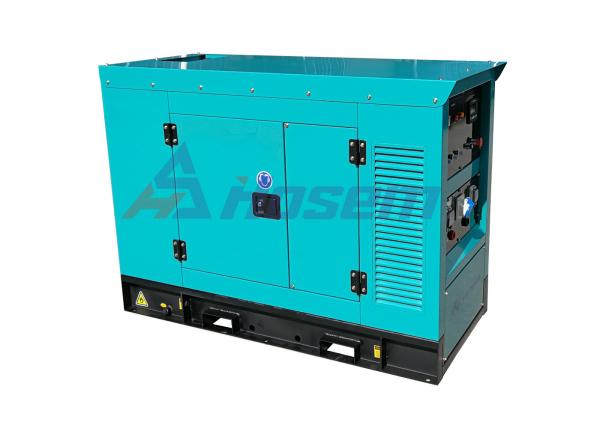

Pipeline 3 Phase 400A 50Hz Diesel Welding Generator

Ask Lasest Price
Brand Name :	Hosem Power
Certification :	CE/ISO9001
Model Number :	A-W400
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	500 unit per month
Delivery Time :	30 days

Add to Cart

Product Details
Company Profile

Pipeline 3 Phase 400A 50Hz Diesel Welding Generator

Welding Generator , 400A Diesel Welding Generator , Diesel Generator Welding Machine for Pipeline

Specification:

Model	A-W400
MMA/ cellulose mode	OCV	76VDC
	current range	30A/21.2V~400A/36V
	rated current (DC)	400A	310
	rated voltage (DC)	36V	32.4
	duty-cycle	60%	100%
	electroder type	E7018 / E6018/E4315/E4316 include cellulose electroder (foxcel 6010 ) etc.
	electroder size	Φ2.0- 6.0 mm electroder continous
		Arc gouging with up to 1/4″(6mm) carbon
TIG mode	OCV	76VDC
	current range	30A/11.2V--400A/30V
	rate current (DC)	400A	310A
	rate voltage(DC)	26V	22.4V
	duty cycle	60%	100%
	arc start mode	SCRATCH
MIG/FCAW mode	OCV	76VDC
	voltage range	15V --40V
	rated current (DC)	400A	310
	rated voltage(DC)	36V	29.5
	duty cycle	60%	100%
	wire size(flux-cored)	flux-cored wire Φ1.6/2.0 continous
	wire feeder type	LN-25 OR miller 12vs OR WF120 (SENCI)
Auxiliary power	Frequency	50Hz
	Phase	3 phase		single phase
	Output voltage/power	400V AC/16kW		230V AC/6.9kW
	power factor	0.8		1
	Output current	28.8A		15A*2
Engine	Model	V1305	4D24G	WP2.3D25
	make	KUBOTA	YUCHAI	WEICHAI
	Cylinders	4 cylinders
	type of Cooling	water- cooled
	CC(L)	1.335	2.45	2.3
	fuel	diesel
	Output power	prime 19.0kW /standby21.0kW	prime 23.0kW /standby25.2kW
	engine Speed	3000rpm	1500rpm
	Battery Capacity	80 Ah/12V
	Starting & Stop Method	electric start and shut off . Engine start by ignition key , emergence stop
	Warning Type	high temperature, low oil pressure, , low fuel level, battary charging failure
	Fuel Consumption	400A OR 16KW AC output	5.0L/hr
		300A	3.9L/hr
		200A	2.9L/hr
		100A	2.0L/hr
		NO LOAD	1.5L/hr
Whole set	Fuel Tank Capacity	65L
	transport	lift eye and track slots
	Protection class	IP23
	insulation class	F
	Weight	520kg	640kg
	Dimension	1480(L)800(W)1050(H)

Welding Generator , 400A Diesel Welding Generator , Diesel Generator Welding Machine for Pipeline

FAQ
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.
Q: What is your lead time?
A: About 20-30 days after receiving advance deposit or original L/C.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificates for different countries such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.
Q: What warranty do you provide?
A: One year, during the guarantee period, we will supply free of the easily damaged parts for the possible problems except for the incorrect operation. After expiration, we supply cost spare parts for Genset maintenance.
