Name: Brushless Alternator 1000kVA Vman Industrial Generator Set
Brand: Hosem
Price: 44000.0 USD

Add to Cart

1000kVA Vman Diesel Generator with Brushless Alternator For Standby Power

Specification of 1000kVA Vman Diesel Generator:

Model		A-VM1100
Max. Power	kVA	1100
Max. Power	kW	880
Rate Power	kVA	1000
Rate Power	kW	800
Frequency	Hz	50
Rate Voltage	V	400/230
Rate Current	A	1443.4
Fuel Tank Capacity	L	1000
Dimension For Open-type Genset	mm	4000 X 1850 X 2200
Weight For Open-type Genset	kg	4700
Dimension For Soundproof Genset	mm	6058 X 2438 X 2591
Weight For Soundproof Generator	kg	7500
Noise Level for Soundproof Generator at 7M	dBA	85
Battery		Four of 150A Free Maintenance Battery

1000kVA Vman Diesel Generator with Brushless Alternator For Standby Power

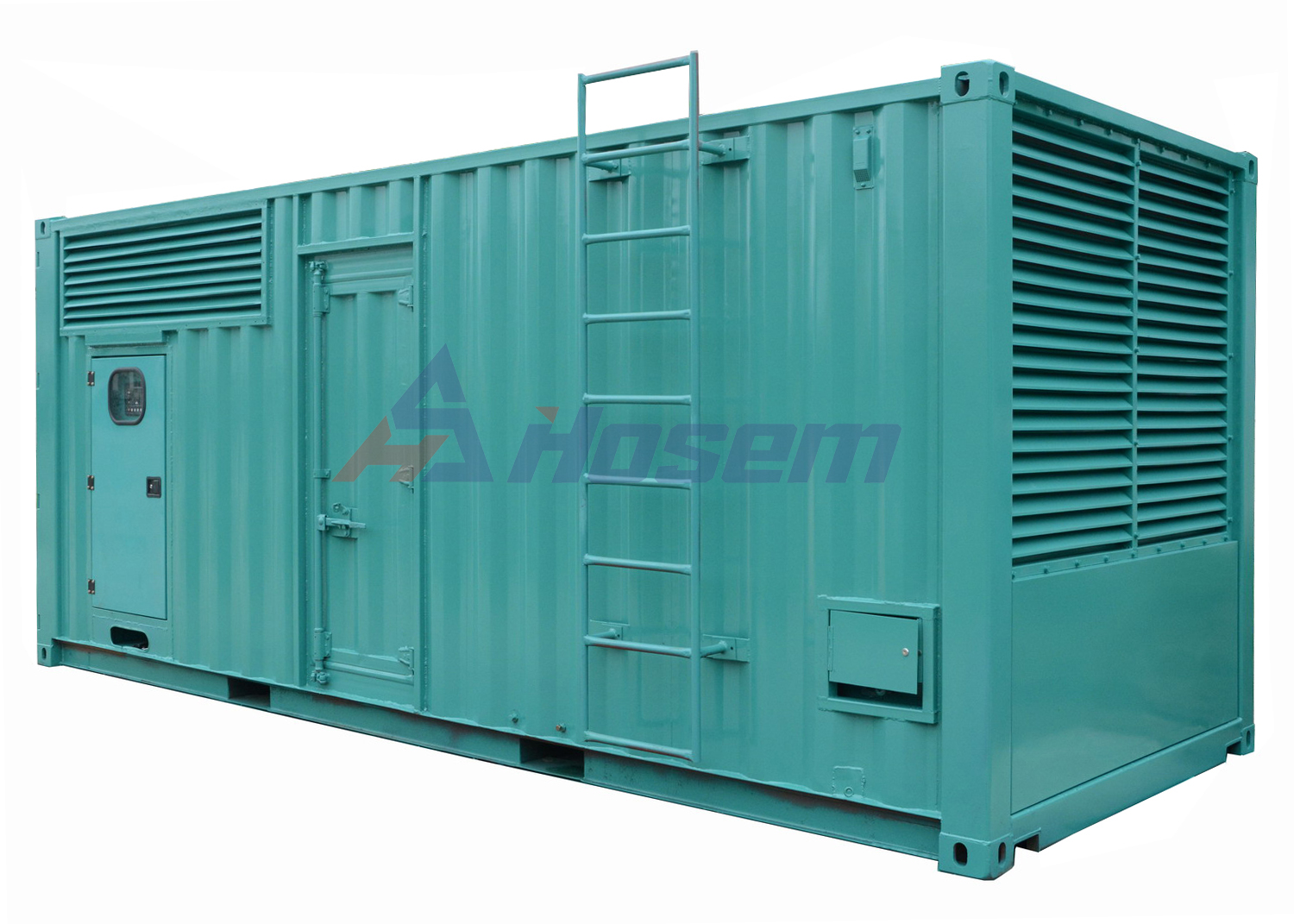

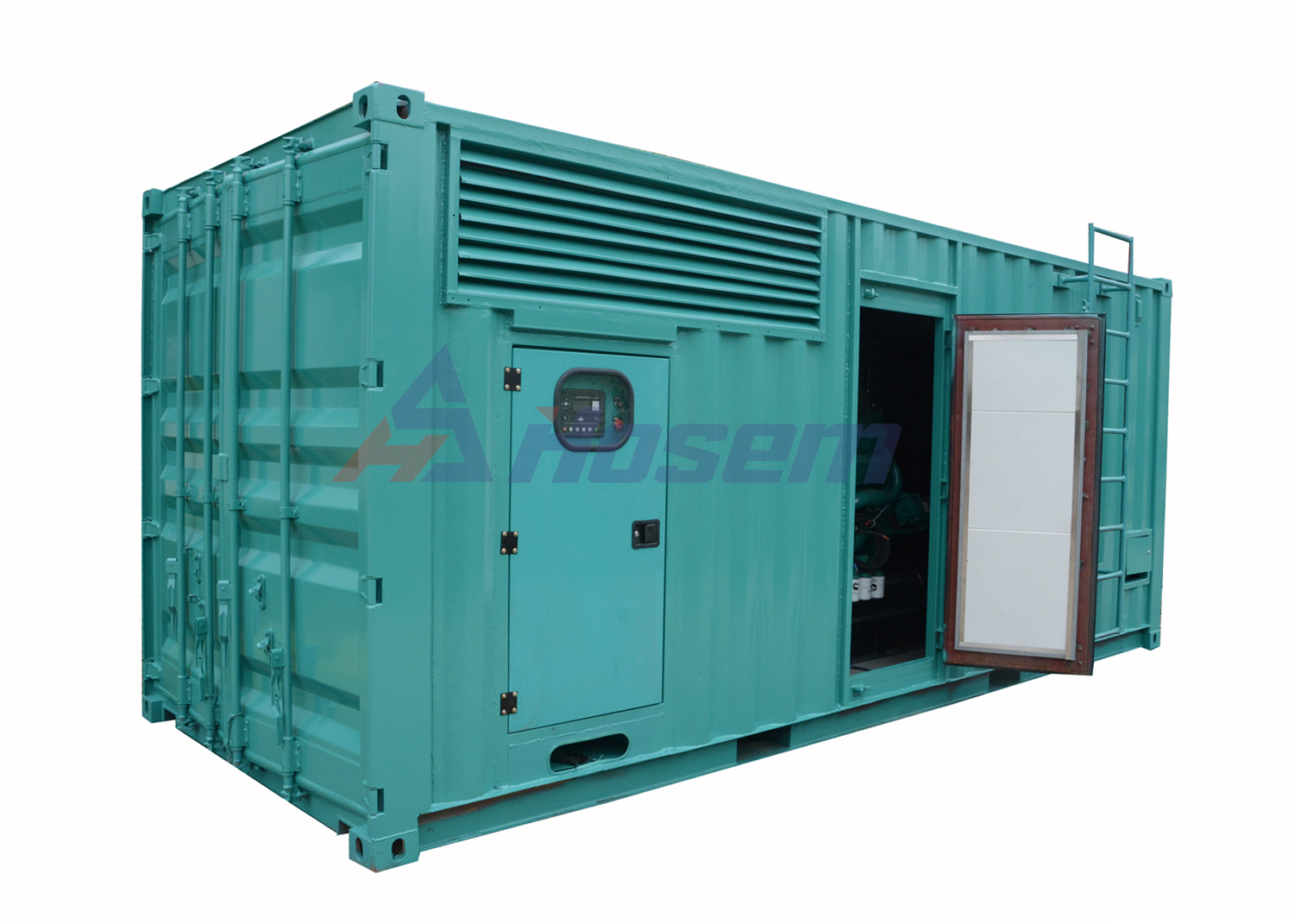

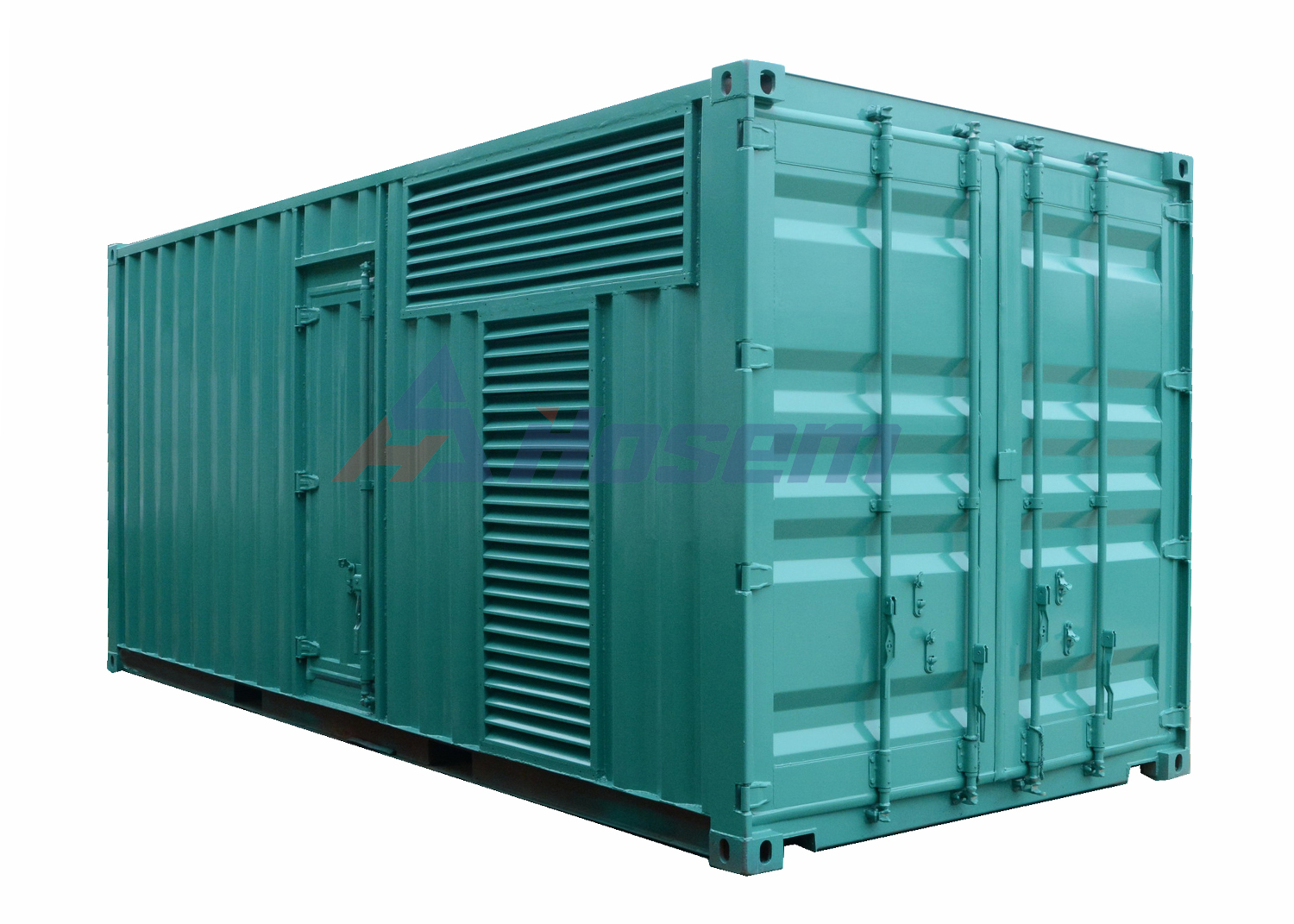

1000kVA Container Type Diesel Generator with Vman Diesel Engine

Specification of Vman Diesel Engine D30A1:

Engine Brand		Vman
Engine Model		D30A1
No. of Cylinder		16Cylinder V type
Aspiration		Turbocharged and Air to Air Aftercooled
Governor		Electric
Engine Max. Output Power	kW	960
Displacement	L	29.2
Compression Ratio		14.6 : 1
Starting Voltage	V	24
Bore	mm	128
Stroke	mm	142
Lubrication Oil Capacity	L	60-78
Intake Air Flow	M³/Min	71.1-116.6
Fuel Consumption at 100% Load	L/H	223.0

1000kVA Vman Diesel Generator with Brushless Alternator For Standby Power

Specification of Stamford Brushless Alternator:

Alternator Manufacturer		Cummins Generator Technologies
Alternator Model		HCI634J
Alternator Brand		Hosem
Rate Output	kVA	1000
Frequency	Hz	50Hz
Altitude	M	≤1000
Insulation		Class H
Phase		1850
Working Temperature without power decrease		≤40℃
Working Altitude without power decrease		≤1000m
Automatic Voltage Regulation		MX321
Protection Grade		IP23
Alternator for optional	Stamford, Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

Control Panel of 1000kVA Vman Diesel Generator:

Controller Brand	Deepsea
Controller Model	DSE7320
Breaker Brand	Delixi
Breaker Capacity (A)	1600A
Battery Charger	Smartgen Model BAC06A
Emergency Stop Button	Supply
Automatic Mains Fail (AMF)	Supply
Fuel Level	Supply
Automatic Transfer Switch	ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).


Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

1000kVA Vman Diesel Generator with Brushless Alternator For Standby Power
