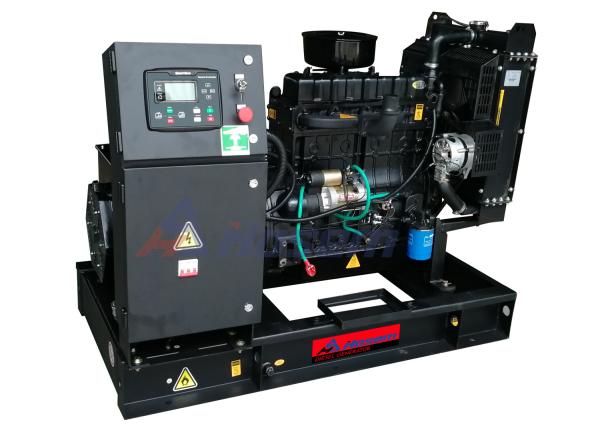

Single Phase Generator Set with Ricardo Diesel Engine And Brushless
Alternator Rate Output 20kVA
Supply 20kVA single phase diesel generator powered by Ricardo
diesel engine, with Ricardo engine model N4100DS and Hosem
brushless alternator model ASF184H, which is produced the same
technologies as Stamford brand. The diesel generator set with the
automatic control panel for automatic start and stop.
Specification of 20kVA Single Phase Diesel Generator:
| Model | A-KF22-1 |
| Max. Power | kVA | 22.0 |
| kW | 17.6 |
| Rate Power | kVA | 20.0 |
| kW | 16.0 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 220 |
| Rate Current | A | 90A |
| Dimension For Open-type Genset | mm | 1550 X 800 X 1350 |
| Weight For Open-type Genset | kg | 530 |
| Dimension For Soundproof Genset | mm | 2050 X 900 X 1150 |
| Weight For Soundproof Generator | kg | 790 |
| Noise Level at 7 Meters | dBA | 75 |
| Fuel Tank Capacity | Litres | 60 |
| Battery | One of 80A Free Maintenance Battery |
Diesel Engine Introduction:
Ricardo diesel engine model N4100DS with rate output 30kW at
1500R.P.M, the diesel engine with naturally aspirated, water
cooling with radiator and fan, Oil sump capacity at 7litres,
starting system with an electric motor start, displacement at 2.040
liters.
Specification of Diesel Engine:
| Engine Manufacturer | Kofo |
| Engine Brand | Ricardo |
| Engine Model | N4100DS |
| No. of Cylinder | 4 Cylinder in line |
| Aspiration | Naturally Aspirated |
| Governor | Mechanical |
| Engine Max. Output Power | kW | 30 |
| Displacement | L | 2.040 |
| Starting Voltage | V | 12 |
| Bore | mm | 85 |
| Stroke | mm | 90 |
| Lubrication Oil Capacity | L | 7 |
| Compression Ratio | 17 : 1 |
| Fuel Tank Capacity | L | 60Litres |
| Fuel Consumption at 100% Load | L | 5.1 |
Alternator Introduction:
The Hosem brand alternator model ASF184H with rated output 16kW /
20kVA at 50Hz, the output voltage at 220V, single phase, and
optional voltage from 110V 240V with single phase as client
optional. The alternator with brushless, self-excitation and
automatic voltage regulation (AVR), the voltage adjustment range
within +-1% from no-load to full load.
Specification of Alternator:
| Alternator Manufacturer | Fuzhou Hosem Power Co., Ltd. |
| Alternator Model | ASF184H |
| Alternator Brand | Hosem |
| Rate Output | kVA | 20 |
| Frequency | Hz | 50Hz |
| Current | A | 90A |
| Insulation | Class H |
| Voltage Regulation | SX460 |
| Protection Grade | IP23 |
| Working Temperature without Output Decrease | ≤1000m |
| Phase | 1 Phase |
| Temperature Rise | 125 Degree Celsius |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for
optional |
|
Specification of Control Panel:
| Controller Brand | Smartgen |
| Controller Model | HGM6120N |
| Breaker Brand | Delixi |
| Breaker Capacity | A | 125 |
| Battery Charger | Smartgen Model BAC06A |
| Emergency Stop Button | Supply |
| Automatic Mains Fail (AMF) | Supply |
| Fuel Level | Supply |
| Automatic Transfer Switch | ATS as optional part |
| Mains Monitor | Supply with AMF Function |
| The control panel supply the full protection with alarm and
shutdown of the diesel generator include Start-up fault (generator
set shutdown), High coolant temperature (alarm and generator set
shutdown), Low oil pressure (alarm and generator set shutdown), Low
fuel level (alarm), Low cooling fluid level alarm (as optional),
Overload (alarm and generator set shutdown), Battery voltage high
(alarm). |
|
|
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand
controller. |
Single Phase 20kVA Diesel Generator with Soundproof Canopy for
Optional.
FAQ:
Q: What the supply range of Ricardo Diesel Generator?
A: The supply range from 15kVA to 400kVA with 50Hz or 60Hz.
Q: What the MOQ?
A: 1 Set.
Q: What the payment term?
A: 30% of total amount paid by T/T for deposit, and 70% of total
amount paid before shipment. Or the L/C payment.
Q: What the delivery time?
A: 20 Days for 1-3Units Order, 35days for 4-20Units Order.
Q: Which seaport you can ship the diesel generator to oversea
country?
A: We can ship the diesel generator from Fuzhou Port, China. And
Fuzhou port is a international seaport in China.
Q: What kind of the trade term you can offer?
A: We can offer with FOB, CNF, CIF or CIP.
Q: Do you have other voltage for optional?
A: Yes, we can customized made from 110V to 690V for client's
optional.
Q: How many kinds of the diesel generator you have for optional?
A: We have open-type, soundproof type, waterproof type and trailer
type diesel generator for optional.
Q: Does your generator have global warranty?
A: Yes. Gensets powered by global brand engine which with the
global warranty service. And the alterntors Stamford, Leroy somer,
Meccalte, Marathon also have the global warranty service.If you use
the Chinese brand diesel engine and alternator, we will undertake
the warranty, and during the warranty period, if there is any
quality problem, we will supply the spare parts to replacement
without charges. and the courier charges by air of spare parts will
be paid by us.
Q: Can you customized made the diesel generator?
A: Yes. Our generators can be customized depending on customers'
detailed requirements. We can supply diesel generators for rental
business, home use, inudstrial projects, army projects, power
station, etc. The diesel generators we supply are suitable for
indoor and outdoor use, lower and high temperature environment.
