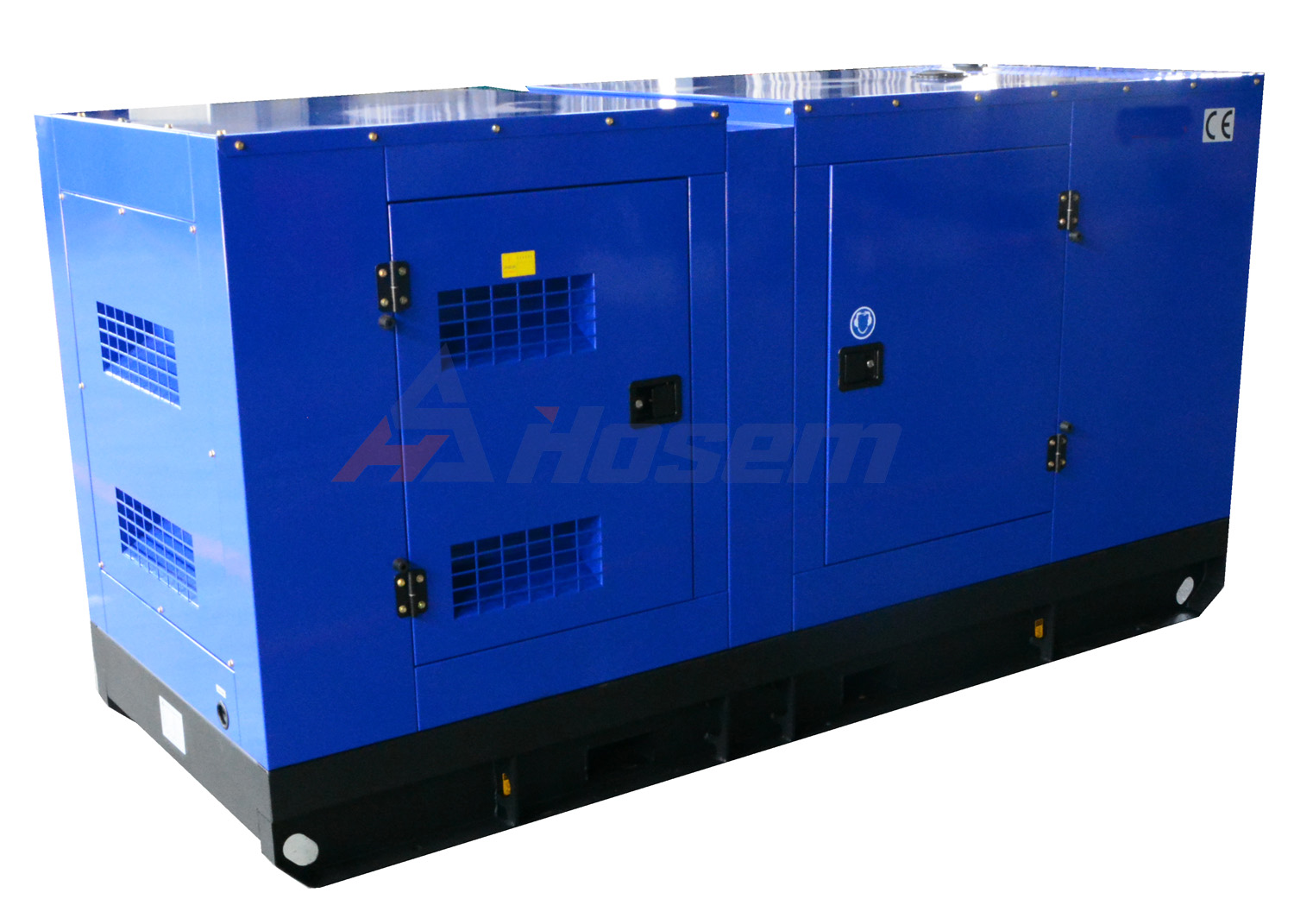

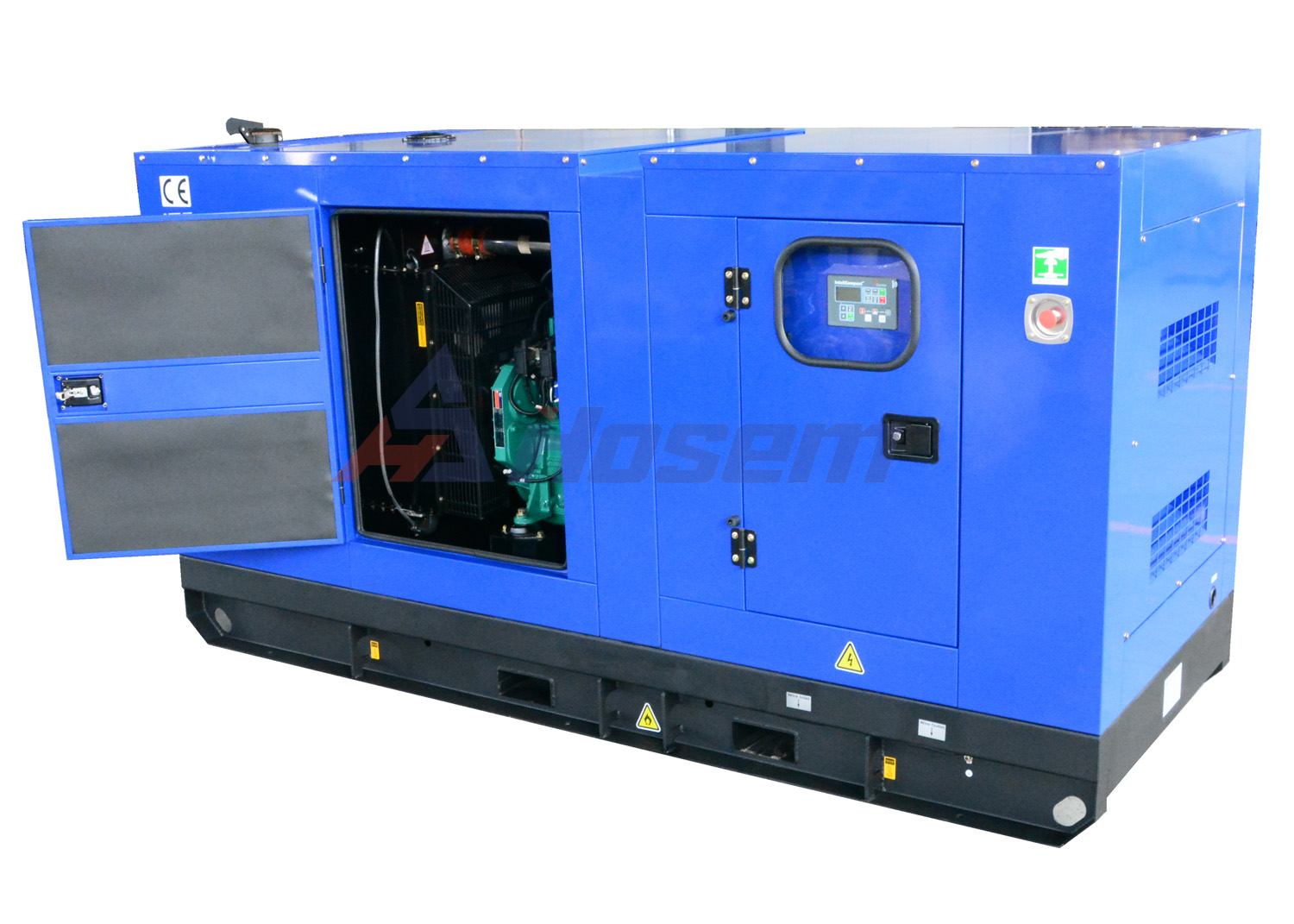

Fawde Engine 30kW 38kVA Silent Diesel Generator

Product Categories

Fuzhou Hosem Power Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Fawde Engine 30kW 38kVA Silent Diesel Generator
Brand: Hosem
Price: 3300.0 USD

Add to Cart

30kW Silent Diesel Generator Drived by Fawde Diesel Engine and Brushless Alternator

Specificiation of 30kW Silent Diesel Generator:

Model		A-XC41
Max. Power	kVA	41.0
Max. Power	kW	33.0
Rate Power	kVA	38.0
Rate Power	kW	30.0
Frequency	Hz	50
Rate Voltage	V	400/230
Rate Current	A	54.1
Dimension For Open-type Genset	mm	1750 X 800 X 1150
Weight For Open-type Genset	kg	780
Dimension For Soundproof Genset	mm	2100 X900 X 1200
Weight For Soundproof Generator	kg	1100
Noise Level at 7 Meters	dBA	72
Fuel Tank Capacity	Litres	80
Battery		One of 80A Free Maintenace Battery

30kW Silent Diesel Generator Drived by Fawde Diesel Engine and Brushless Alternator

Technical Data of Fawde Diesel Engine 4DX22-50D:

Engine Manufacturer		Faw Jiefang Automotive Co., Ltd. Wuxi Diesel Engine Works
Engine Brand		Fawde
Engine Model		4DX22-50D
No. of Cylinder		4 Cylinder in line
Aspiration		Turbocharged
Governor		Mechanical
Engine Max. Output Power	kW	41
Displacement	L	3.860
Starting Voltage	V	24
Bore	mm	102
Stroke	mm	118
Lubrication Oil Capacity	L	13
Compression Ratio		17 : 1
Intake Air Flow	M³/Min	3.2
Fuel Consumption at 100% Load	L/H	9.9

Technical Data of Brushless Alternator:

Alternator Manufacturer		Fuzhou Hosem Power Co., Ltd.
Alternator Model		ASF184H
Alternator Brand		Hosem
Rate Output	kVA	38
Frequency	Hz	50Hz
Current	A	53.4
Insulation		Class H
Voltage Regulation		SX460
Protection Grade		IP23
Working Temperature without Output Decrease		≤1000 m
Phase		3 Phase
Temperature Rise		125 Degree Celsius
Alternator for optional	Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

30kW Silent Diesel Generator Drived by Fawde Diesel Engine and Brushless Alternator

Technical Data of Control Panel of Diesel Generator:

Controller Brand	ComAp
Controller Model	IL-AMF9
Breaker Brand	Delixi
Breaker Capacity	A	63
Battery Charger	Smartgen Model BAC06A
Emergency Stop Button	Supply
Automatic Mains Fail (AMF)	Supply
Fuel Level	Supply
Automatic Transfer Switch	ATS as optional part
Mains Monitor	Supply with AMF Function
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).


Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Spare Parts are available for the Hosem Diesel Generator from Hosem Power for the whole life time of diesel generator.
