Name: 450kVA Emergency Standby Generator
Brand: Hosem
Price: 1 USD

Add to Cart

Emergency Standby Generator 450kVA Powered by Doosan DP158LC Diesel Engine

Specification of 500kVA Emergency Standby Generator:

Model		A-D500
Max. Power	kVA	500
Max. Power	kW	400
Rate Power	kVA	450
Rate Power	kW	360
Frequency	Hz	50
Rate Voltage	V	415/240V
Rate Current	A	626.0
Fuel Tank Capacity	L	600L
Dimension For Open-type Genset	mm	3050 X 1400 X 1980
Weight For Open-type Genset	kg	4000
Dimension For Soundproof Genset	mm	4350 X 1450 X 2180
Weight For Soundproof Generator	kg	5100
Noise Level for Soundproof Generator at 7M	dBA	78
Battery		Four of 120Ah Free Maintenance Battery

Emergency Standby Generator 500kVA Powered by Doosan DP158LC Diesel Engine

Specification of Doosan Diesel Engine DP158LC:

Emergency Standby Generator 500kVA Powered by Doosan DP158LC Diesel Engine

Specification of Stamford Brushless Alternator:

Alternator Manufacturer		Cummins Generator Technologies
Alternator Model		HCI 544 C
Alternator Brand		Stamford
Rate Output	kVA	500
Frequency	Hz	50Hz
Altitude	M	≤1000
Insulation		Class H
Phase		3 Phase
Working Temperature without power decrease		≤40℃
Working Altitude without power decrease		≤1000m
Automatic Voltage Regulation		AS440
Protection Grade		IP23
Alternator for optional	Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

Specification of Control Panel for 500kVA Emergency Standby Generator:

Controller Brand	Smartgen
Controller Model	HGM6120N
Breaker Brand	Delixi
Breaker Capacity (A)	800
Battery Charger	Smartgen Model BAC06A
Emergency Stop Button	Supply
Automatic Mains Fail (AMF)	Supply
Fuel Level	Supply
Automatic Transfer Switch	ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).


Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Emergency Standby Generator 500kVA Powered by Doosan DP158LC Diesel Engine

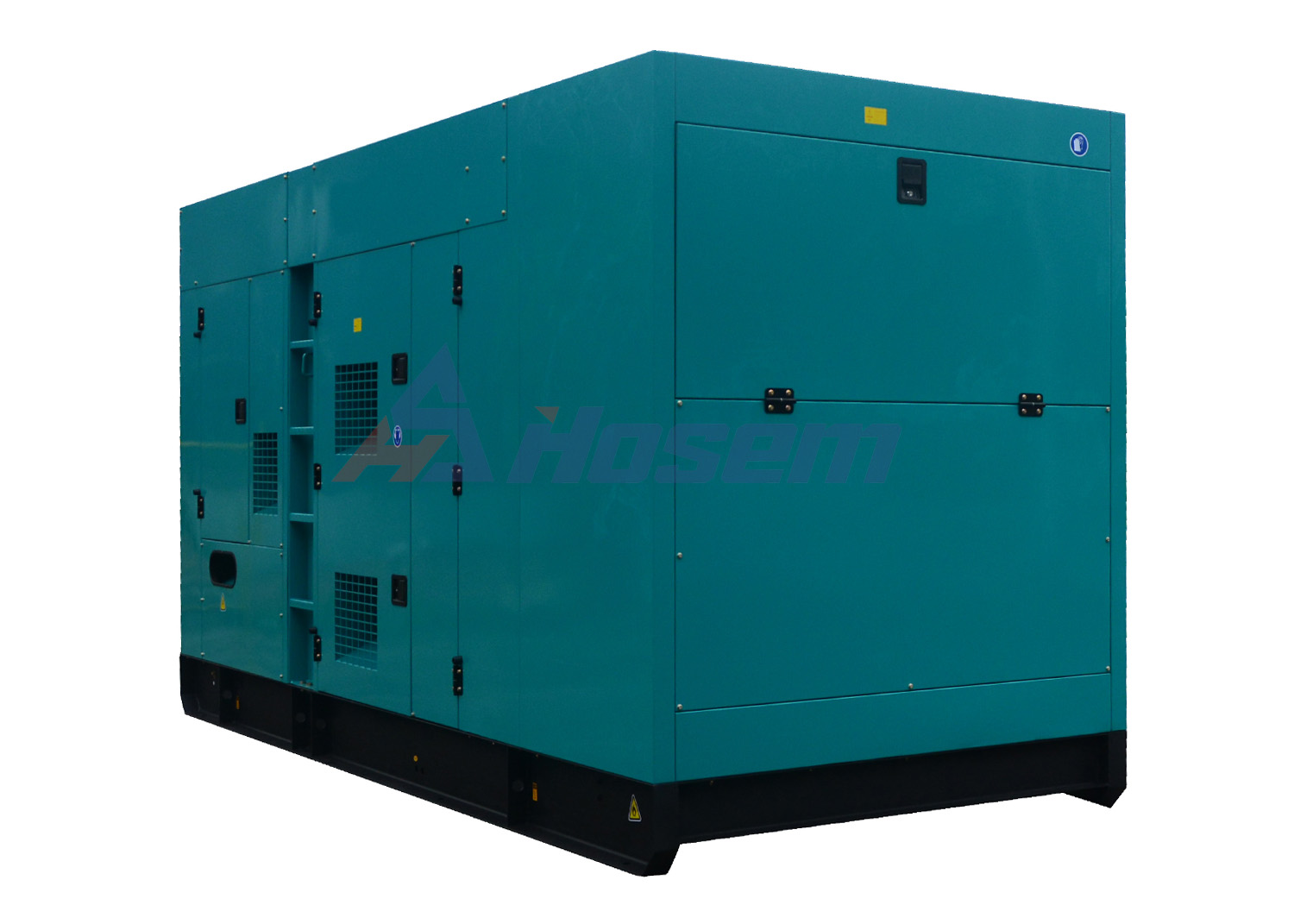

Design of 500kVA Emergency Standby Generator with Soundproof Canopy
