50kVA Brushless Alternator

Ask Lasest Price
Brand Name :	Hosem
Model Number :	ASF224D
Certification :	CE and ISO9001 Certificate
Price :	USD700.00
Supply Ability :	2000 Sets Per Month
Delivery Time :	15-20Days

Add to Cart

Product Details
Company Profile

50kVA Brushless Alternator

Supply A.C. Brushless Alternator Rate Output 50kVA for Diesel Generator

Products features:
1. The technical performance and mounting dimension of ASF series alternators are international IEC 60034, NEMA MG1-32, ISO8528, CSA C22.2-100, VDE0530 and national GB755 standards compliant, the quality of prodcts can reach current international standard.
2. Excellent compatibility with drive systems: standard mounting dimensions can be coupled to any diesel engines from worldwide, each kinds of S.A.E flanges and S.A.E drive discs can be easily interchangealble.
3. Easy access for installation and maintenance, including: coupling to engines, connecting for lead wire, connecting for rectifier, integrating with current transformers.
4. For balanced rotor with two sealed and quality ball bearing, Hosem alternator have the featues of less vibration and less noise.
5. Standard AVR model SX460 for the alternator, have SX440, MX321, MX341 AVR for optional.
6. The standard enclosure protection is IP23.
7. Permanent magnet generator excitation system (PMG) for optional.

300kVA Alternator for Diesel Generator

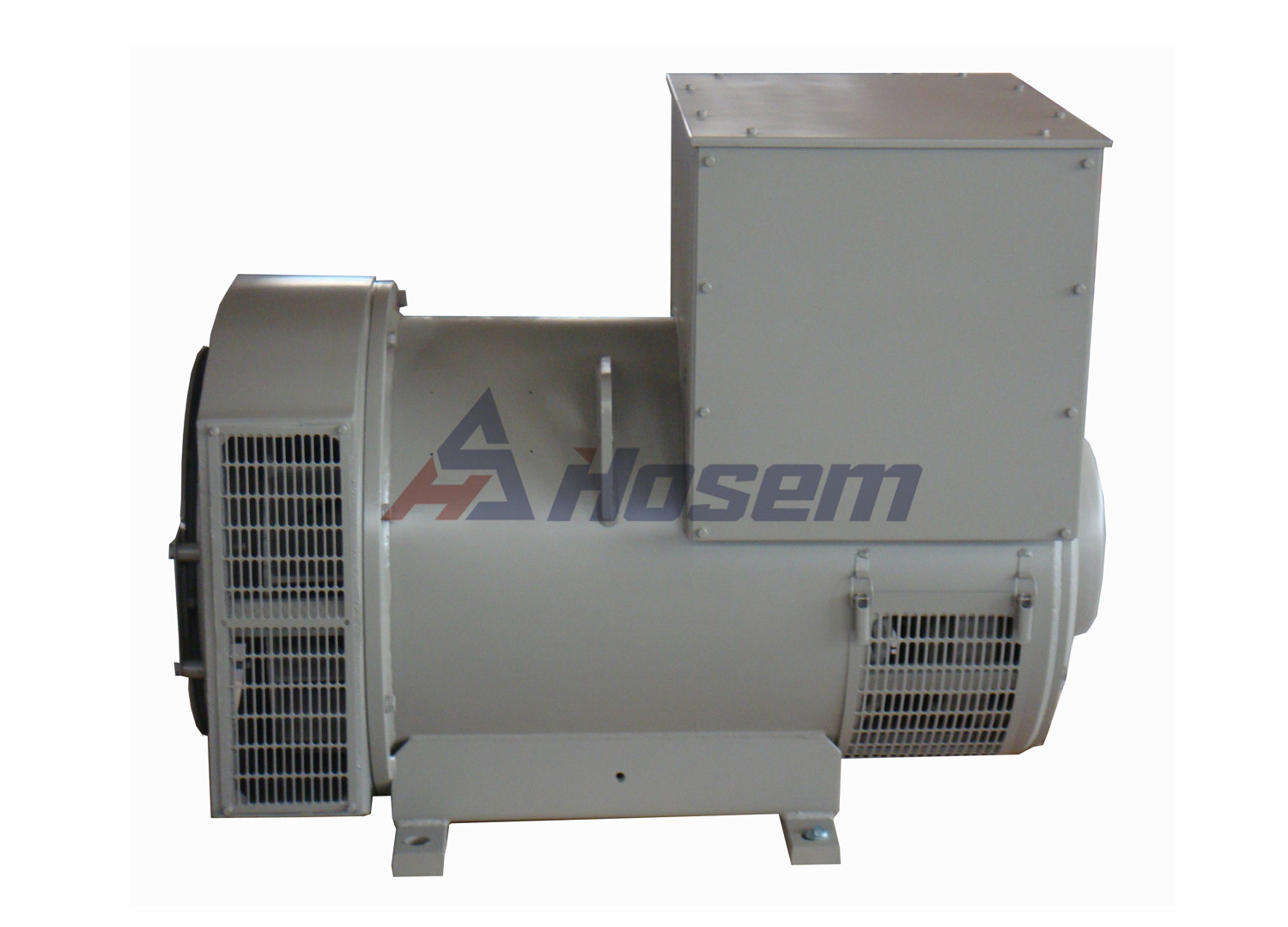

Photos of Hosem Brushless Alternator

Supply Range of the Hosem Brushless Alternator:

Alternator Model	Continue Output 50Hz		Continue Output 60Hz		Efficiency (%)	Leads	AVR
Alternator Model	KVA	KW	KVA	KW	Efficiency (%)	Leads	AVR
ASF164A	6	5	10	8.2	78.0%	12	SX460
ASF164B	10	8	14	11	78.0%	12	SX460
ASF164C	13	10	17	13.5	80.0%	12	SX460
ASF164D	15	12	20	16	81.7%	12	SX460
ASF184ES	19	15	24	19	85.1%	12	SX460
ASF184E	23	18	29	23	86.3%	12	SX460
ASF184FS	25	20	31	25	86.3%	12	SX460
ASF184F	28	22	34	27.5	86.5%	12	SX460
ASF184G	31	25	38	30	87.6%	12	SX460
ASF184H	38	30	45	36	87.9%	12	SX460
ASF184J	40	32	50	40	88.0%	12	SX460
ASF224C	43	34	53	42	87.1%	12	SX460
ASF224D	50	40	63	50	88.2%	12	SX460
ASF224E	63	50	73	58	88.8%	12	SX460
ASF224F	73	58	88	70	89.9%	12	SX460
ASF224GS	80	64	94	75	89.9%	12	SX460
ASF224G	85	68	101	81	90.0%	12	SX460
ASF224GL	94	75	113	90	90.0%	12	SX460
ASF274C	100	80	119	95	90.3%	12	SX460
ASF274DS	113	90	131	105	90.6%	12	SX460
ASF274D	125	100	150	120	91.2%	12	SX460
ASF274E	140	112	168	134	91.0%	12	SX460
ASF274FS	150	120	178	142	92.3%	12	SX460
ASF274F	165	132	190	152	93.3%	12	SX460
ASF274GS	175	140	210	168	93.0%	12	SX460
ASF274G	188	150	225	180	93.5%	12	SX460
ASF274H	200	160	238	190	93.4%	12	SX460
ASF274J	225	180	275	220	93.7%	12	SX460
ASF274K	250	200	300	240	93.5%	12	SX460
ASF314C	250	200	300	240	92.5%	12	SX440
ASF314DS	275	220	325	260	92.7%	12	SX440
ASF314D	300	240	350	280	93.7%	12	SX440
ASF314ES1	313	250	356	285	93.5%	12	SX440
ASF314ES	325	260	388	310	93.4%	12	SX440
ASF314E	350	280	419	335	93.2%	12	SX440
ASF314FS	375	300	463	370	93.0%	12	SX440
ASF314F	400	320	481	385	94.0%	12	SX440
ASF354CS	450	360	563	450	94.0%	6	SX440
ASF354C	500	400	594	475	94.7%	6	SX440
ASF354D	563	450	625	500	95.0%	6	SX440
ASF354E	600	480	706	565	94.8%	6	SX440
ASF354FS1	625	500	725	580	93.9%	6	SX440
ASF354FS	650	520	750	600	94.1%	6	SX440
ASF354F	675	540	775	620	94.0%	6	SX440
ASF354G	700	560	800	640	93.8%	6	MX341
ASF404B	750	600	900	720	93.2%	6	MX341
ASF404C	800	640	960	768	93.3%	6	MX341
ASF404D	900	720	1080	864	92.1%	6	MX341
ASF404E	1000	800	1200	960	94.9%	6	MX341
ASF404F	1125	900	1350	1080	94.7%	6	MX341
ASF404G	1250	1000	1500	1200	95.5%	6	MX341
ASF404H	1375	1100	1650	1320	95.6%	6	MX341

350kVA Brushless Alternator

Output Decrease Work at Difference Temperature and Altitude

Altitude	Environment Temperature
Altitude	25 ℃	40 ℃	45 ℃	50 ℃	55 ℃	60 ℃
0 - 1000 M	1.02	1.00	0.95	0.92	0.89	0.86
1001 - 1500 M	0.99	0.98	0.92	0.89	0.86	0.83
1501 - 2000 M	0.96	0.92	0.89	0.86	0.84	0.81
2001 - 2500 M	0.93	0.89	0.86	0.84	0.81	0.78
2501 - 3000 M	0.89	0.85	0.80	0.80	0.77	0.75
3001 - 3500 M	0.86	0.81	0.79	0.77	0.74	0.72
3501 - 4000 M	0.83	0.77	0.76	0.74	0.71	0.69

Note: Output Revised = Rate Output X RevisedX Coefficient
