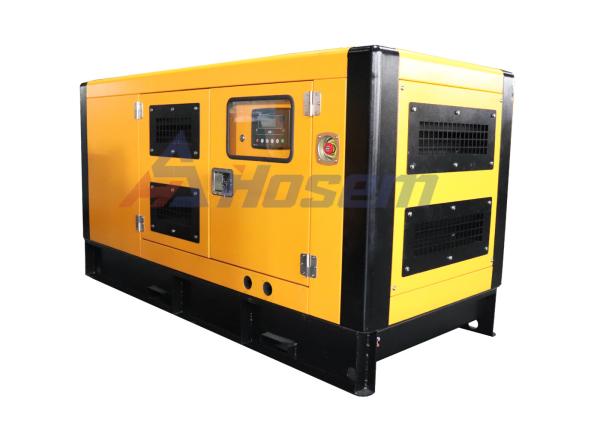

    Industrial 50Hz 30kVA Ricardo Diesel Generator

    Ask Lasest Price
    Brand Name : Hosem Power
    Certification : CE/ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500 unit per month
    Delivery Time : 30 days
    Model Number : A-WH33
    • Product Details
    • Company Profile

    Industrial 50Hz 30kVA Ricardo Diesel Generator

    Diesel Generator Sets , Weichai Ricardo Generator Set , Industrial Diesel Generators , Industrial Generator Set


    Hosem Power Ricardo Series Diesel Generators' Features:

    1. Power From 20kVA up to 200kVA, with compacted structure and best configuration.
    2. Engine and alternator mounted on the same frame steel skid.
    3. Built-in damper for anti-vibration.
    4. Small size, low weight, easy to operate, installation and maintenance.
    5. World most famous brand diesel engine. Ricardo series engine.
    6. World famous brand AC alternator: Stamford, Marathon, Leroy Somer, etc.
    7. Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485.
    8. Full range protect function and alarm shutdown feature.
    9. ATS, Base Fuel Tank as Options


    Specification for 30kVA Weifang Ricardo Diesel Generator Set:

    ModelA-WH33
    Standby PowerkVA33
    kW26
    Prime PowerkVA30
    kW24
    FrequencyHz50
    Output VoltageV400/230
    Oil ConsumptionL/H≤0.07
    Dimension For Open-typemm1450 X 730 X 1120
    Weight For Open-typekg750
    Dimension For Soundproofmm2300 X 900 X 1250
    Weight For Soundprofkg1200
    Noise For SoundproofdBA72
    Engine ManufacturerHuafeng Power
    Engine BrandWeichai Huafeng
    Engine ModelK4100D5-1
    No.of Cylinder4 Cylinder in line
    Boremm100
    Strokemm115
    DisplacementL3.61
    AspirationNaturally Aspirated
    Rate SpeedR.P.M.1500
    GovernorMechanical
    Lubrication Oil CapacityL13
    Starting VoltageV12
    Engine Max.Output PowerkW33
    Alternator ManufacturerFuzhou Hosem Power Co., Ltd.
    Alternator BrandHosem Power
    Alternator ModelASF184G
    Rate OutputkVA31
    FrequencyHz50
    AltitudeM≤1000
    InsulationClass H
    Protection GradeIP23
    Alternator for choiceWe also have Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator for your choice.
    Control Panel ModelAF500
    ControllerSmartgen Brand Model HGM6110U
    Function of control panelAutomatic genset start/stop
    Automatic battery charger
    Emergency stop
    LED alarm indication and Sound alarm
    Display of the controllerGenerator voltage: Uab, Ubc, Uca
    Generator current: Ua, Ub, Uc
    Generator temp.: ℃/℉ both display
    Generator frequency: Hz
    Generator power: kW, kVA, kWh, kVAr, kVArh, kVAh
    Generator starts count: 999999 times (Max)
    Generator pressure: kPa/Psi/Bar both display
    Charging Voltage: V
    Battery Voltage: V DC
    Protection of Diesel GeneratorOver / Under Speed Alarm and Shutdown
    Start / Stop Failure Alarm
    Over Current Alarm and Shutdown
    Under / Over Generator Voltage Alarm and Shutdown
    Low Oil Pressure Alarm and Shutdown
    High Engine Temperature Alarm and Shutdown
    Over Load Alarm and Shutdown
    Low and High Battery Voltage Alarm
    Lose of Speed Signal Alarm and Shutdown
    Charge Fail Alarm

    FAQ
    Q: Do you offer OEM service?
    A: Yes
    Q: What is your payment term?
    A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.
    Q: What is your lead time?
    A: About 20-30 days after receiving advance deposit or original L/C.
    Q: What certificates do you have?
    A: We have CE, ISO. And we can apply for specific certificates for different countries such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.
    Q: What warranty do you provide?
    A: One year, during the guarantee period, we will supply free of the easily damaged parts for the possible problems except for the incorrect operation. After expiration, we supply cost spare parts for Genset maintenance.
