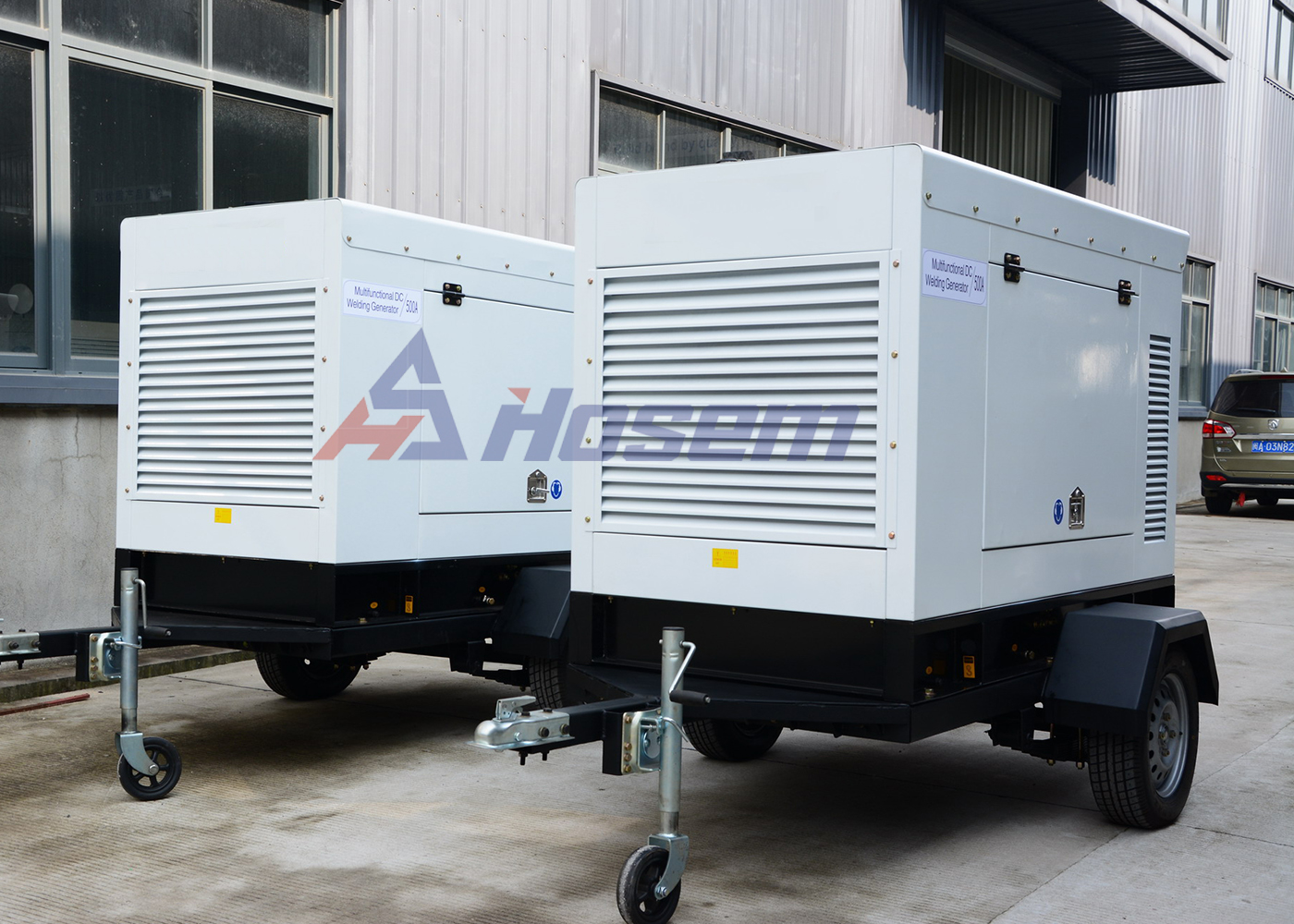

Trailer Type Soundproof 30kVA Deutz Engine Generator

    Buy cheap Trailer Type Soundproof 30kVA Deutz Engine Generator from wholesalers

    Buy cheap Trailer Type Soundproof 30kVA Deutz Engine Generator from wholesalers
    • Buy cheap Trailer Type Soundproof 30kVA Deutz Engine Generator from wholesalers
    • Buy cheap Trailer Type Soundproof 30kVA Deutz Engine Generator from wholesalers
    • Buy cheap Trailer Type Soundproof 30kVA Deutz Engine Generator from wholesalers

    Trailer Type Soundproof 30kVA Deutz Engine Generator

    Ask Lasest Price
    Brand Name : Hosem Power
    Certification : CE/ISO9001
    Payment Terms : L/C, T/T
    Supply Ability : 500 unit per month
    Delivery Time : 30 days
    Model Number : A-DEW33
    • Product Details
    • Company Profile

    Trailer Type Soundproof 30kVA Deutz Engine Generator

    Trailer Type Deutz Generator, Deutz Soundproof Generator, Silent Diesel Generator Set


    Hosempower Deutz Series generator powered by the original Perkins engine, it enjoys high stability, reliability, durability, and long life with a wide range of power output. It is widely used in the area of the port, railway, industrial, and mining.



    Specifications:

    ModelA-DEW33
    Standby PowerkVA33
    kW26
    Prime PowerkVA30
    kW24
    FrequencyHz50
    Output VoltageV400/230
    Oil ConsumptionL/H0.07
    Dimension For Open-typemm1650 X 650 X 1200
    Weight For Open-typekg650
    Dimension For Soundproofmm2300 X 900 X 1250
    Weight For Soundprofkg1090
    Engine ManufacturerWeichai Deutz diesel engine Co., Ltd
    Engine BrandDeutz
    Engine ModelD226B-3D
    No.of Cylinder3 Cylinder in line
    Boremm105
    Strokemm120
    DisplacementL3.12
    Cooling Fan Air Flowm3/min155
    Compress Air Flowm3/min2.83
    Exhaust Gas Flowm3/min6
    Exhaust Gas Temperature470
    Lubrication Oil CapacityL7.75
    Cooling Water CapacityL17
    Starting VoltageV12月24日
    Engine Max.Output PowerkW33
    Alternator ManufacturerCummins Generator Technolgoies
    Alternator BrandStamford
    Alternator ModelPI 142F
    Rate OutputkVA32
    FrequencyHz50Hz
    AltitudeM≤1000
    InsulationClass H
    Protection GradeIP23
    Alternator for choiceWe also have Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator for your choice.
    Control Panel ModelAF500
    ControllerDeepsea Brand Model DSE7320
    Function of control panelAutomatic genset start/stop
    Automatic battery charger
    Emergency stop
    AMF (Automatic Mains Fault)
    Remote control
    Micro-processor based design
    LED alarm indication and Sound alarm
    Display of the controllerGenerator voltage: Uab, Ubc, Uca
    Generator current: Ua, Ub, Uc
    Generator temp.: ℃/℉ both display
    Generator frequency: Hz
    Generator power: kW, kVA, kWh, kVAr, kVArh, kVAh
    Generator starts count: 999999 times (Max)
    Generator pressure: kPa/Psi/Bar both display
    Charging Voltage: V
    Battery Voltage: V DC
    Protection of Diesel GeneratorOver / Under Speed Alarm and Shutdown
    Start / Stop Failure Alarm
    Over Current Alarm and Shutdown
    Under / Over Generator Voltage Alarm and Shutdown
    Low Oil Pressure Alarm and Shutdown
    High Engine Temperature Alarm and Shutdown
    Over Load Alarm and Shutdown
    Low and High Battery Voltage Alarm
    Lose of Speed Signal Alarm and Shutdown
    Charge Fail Alarm

    QC Items
    HOSEM provides a full line of brand new and high-quality products.
    Each and every unit is strictly factory tested before shipment.
    1) Parts faults testing
    2) Fuel tank pressure testing
    3) Bolt tightening torque testing
    4) Painting thickness testing
    5) Voltage bearing and insulation testing
    6) Noise testing
    7) Loading Testing: 25%, 50%, 75%, 100%, 110% load to check verify that all control systems, alarm and shut-down protection.


    Trailer Type Deutz Generator, Deutz Soundproof Generator, Silent Diesel Generator Set , Air Cooled Deutz Diesel Engine


    FAQ
    Q: Do you offer OEM service?
    A: Yes
    Q: What is your payment term?
    A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.
    Q: What is your lead time?
    A: About 20-30 days after receiving advance deposit or original L/C.
    Q: What certificates do you have?
    A: We have CE, ISO. And we can apply for specific certificates for different countries such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.
    Q: What warranty do you provide?
    A: One year, during the guarantee period, we will supply free of the easily damaged parts for the possible problems except for the incorrect operation. After expiration, we supply cost spare parts for Genset maintenance.
