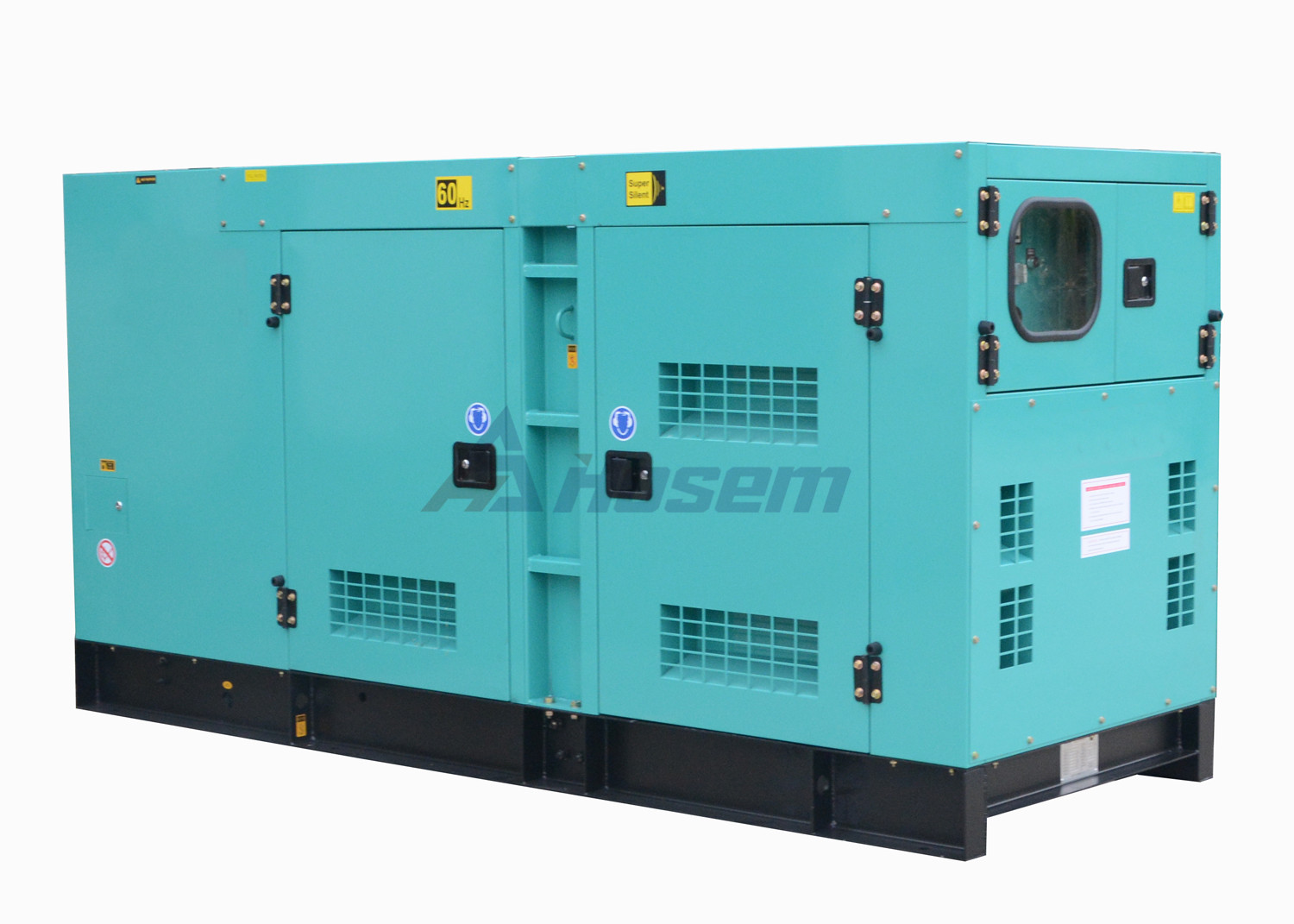

Silent Diesel Generator with SDEC Diesel Engine 4HTAA4.3-G21 For
Outdoor Use
Hosem Power A-SH series diesel generator set equipped with world
famous engine brand-SDEC. A-SH Sseries diesel generator of
advantages with high economy, low fuel consumption, the minimum
fuel consumption rate of 195g/kW.Hr., high relability,
multi-national heavy-duty diesel engine design experience, the
averageengine failure interval of 4000 hours or more, the
averageoverhaul period is geater than 12000 hours. Good disch-arge,
to meet the requirements of non-road discharge II stage.
Specification of 100kVA Diesel Generator:
| Model | A-SH110-II |
| Max. Power | kVA | 110.0 |
| kW | 88.0 |
| Rate Power | kVA | 100.0 |
| kW | 80.0 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 415/240 |
| Rate Current | A | 144.3 |
| Dimension For Open-type Genset | mm | 2150 X 900 X 1420 |
| Weight For Open-type Genset | kg | 1200 |
| Dimension For Soundproof Genset | mm | 2900 X 1080 X 1500 |
| Weight For Soundproof Generator | kg | 1900 |
| Noise Level at 7 Meters | dBA | 75 |
| Fuel Tank Capacity | Litres | 200 |
| Battery | Two of 120A Free Maintenance Battery |
Specification of SDEC Diesel Engine:
| Engine Manufacturer | Shanghai Diesel Engine Co., Ltd. |
| Engine Brand | SDEC |
| Engine Model | 4HTAA4.3-G21 |
| No. of Cylinder | 4 Cylinder in line |
| Aspiration | Turbocharged and Aftercooled |
| Governor | Electric |
| Engine Max. Output Power | kW | 105 |
| Displacement | L | 4.300 |
| Starting Voltage | V | 24 |
| Bore | mm | 105 |
| Stroke | mm | 124 |
| Lubrication Oil Capacity | L | 11-13 |
| Compression Ratio | 16 : 1 |
| Fuel Tank Capactiy | L | 200 |
| Fuel Consumption at 100% Load | L/H | 23.0 |

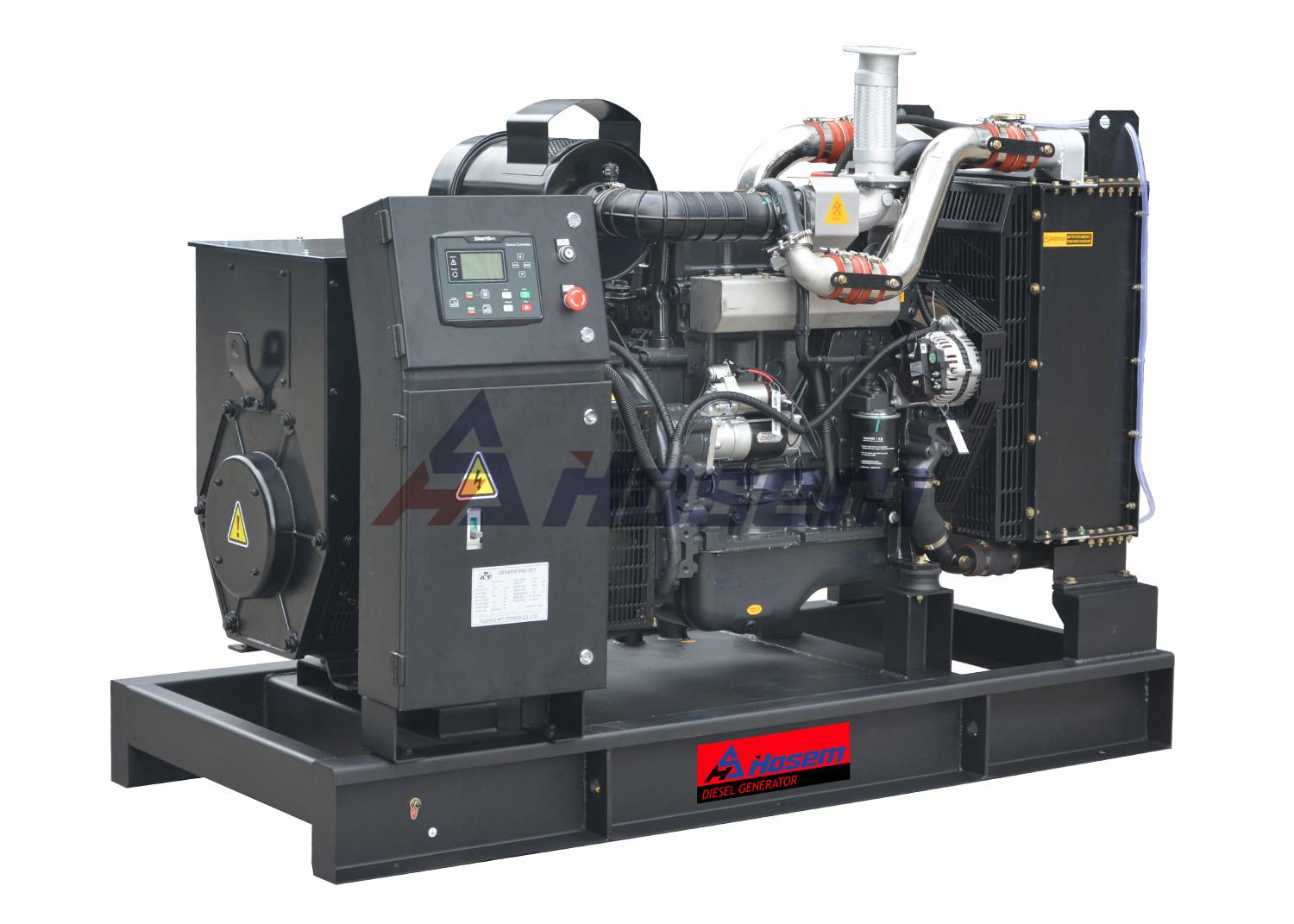

Open-type Diesel Generator with SDEC Diesel Engine for Optional.
Specification of Brushless Alternator:
| Alternator Manufacturer | Fuzhou Hosem Power Co., Ltd. |
| Alternator Model | ASF274C |
| Alternator Brand | Hosem |
| Rate Output | kVA | 125 |
| Frequency | Hz | 50Hz |
| Current | A | 180.4 |
| Insulation | Class H |
| Voltage Regulation | SX440 |
| Protection Grade | IP23 |
| Working Temperature without Output Decrease | ≤1000m |
| Phase | 3 Phase |
| Temperature Rise | 125 Degree Celsius |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for
optional |
|
Hosem Power supply the open-type diesel generator, soundproof
diesel generator, trailer diesel generator with SDE Diesel Engine
for optional.
Specification of Automatic Control Panel:
| Controller Brand | Smartgen |
| Controller Model | HGM6120N |
| Breaker Brand | Delixi |
| Breaker Capacity | A | 125 |
| Battery Charger | Smartgen Model BAC06A |
| Emergency Stop Button | Supply |
| Automatic Mains Fail (AMF) | Supply |
| Fuel Level | Supply |
| Automatic Transfer Switch | ATS as optional part |
| Mains Monitor | Supply with AMF Function |
| The control panel supply the full protection with alarm and
shutdown of the diesel generator include Start-up fault (generator
set shutdown), High coolant temperature (alarm and generator set
shutdown), Low oil pressure (alarm and generator set shutdown), Low
fuel level (alarm), Low cooling fluid level alarm (as optional),
Overload (alarm and generator set shutdown), Battery voltage high
(alarm). |
|
|
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand
controller. |
FAQ:
Q: What the supply range of SDEC Diesel Generator?
A: The supply range from 25kVA to 1000kVA with 50Hz, and 25kVA to
413kVA for 60Hz.
Q: What the MOQ?
A: 1 Set.
Q: What the payment term?
A: 30% of total amount paid by T/T for deposit, and 70% of total
amount paid before shipment. Or the L/C payment.
Q: What the delivery time?
A: 20 Days for 1-3Units Order, 35days for 4-20Units Order.
Q: Which seaport you can ship the diesel generator to oversea
country?
A: We can ship the diesel generator from Fuzhou Port, China. And
Fuzhou port is a international seaport in China.
Q: What kind of the trade term you can offer?
A: We can offer with FOB, CNF, CIF or CIP.
Q: Do you have other voltage for optional?
A: Yes, we can customized made from 110V to 690V for client's
optional.
Q: How many kinds of the diesel generator you have for optional?
A: We have open-type, soundproof type, waterproof type and trailer
type diesel generator for optional.
Q: Does your generator have global warranty?
A: Yes. Gensets powered by global brand engine which with the
global warranty service. And the alterntors Stamford, Leroy somer,
Meccalte, Marathon also have the global warranty service.If you use
the Chinese brand diesel engine and alternator, we will undertake
the warranty, and during the warranty period, if there is any
quality problem, we will supply the spare parts to replacement
without charges. and the courier charges by air of spare parts will
be paid by us.
Q: Can you customized made the diesel generator?
A: Yes. Our generators can be customized depending on customers'
detailed requirements. We can supply diesel generators for rental
business, home use, inudstrial projects, army projects, power
station, etc. The diesel generators we supply are suitable for
indoor and outdoor use, lower and high temperature environment.
