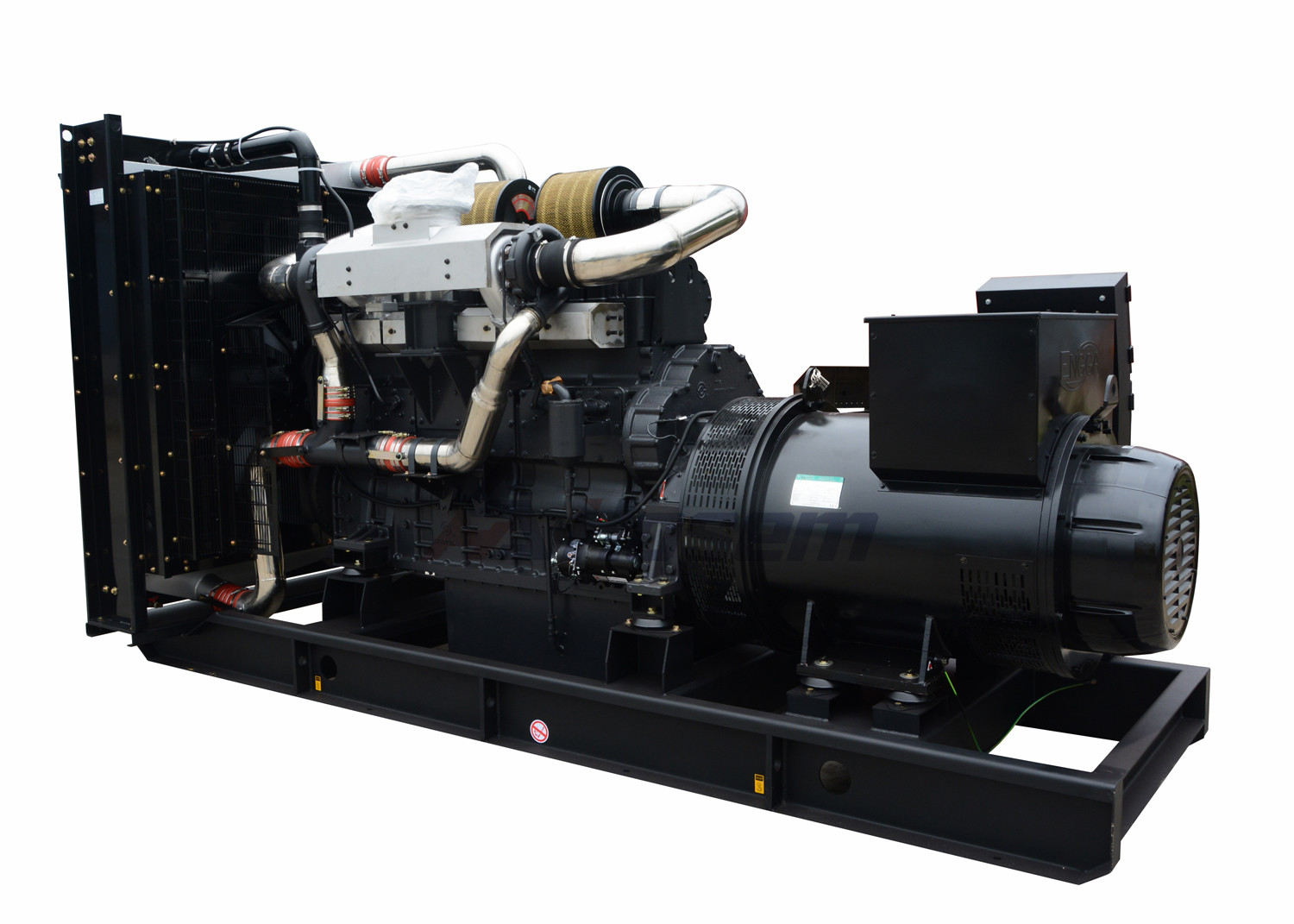

Continue Power 500kVA China Diesel Generator with SDEC Diesel
Engine for Industrial
Continue Power: There is no time limit in the case of variable load operation. In
any 250hours of continuous operation period, the variable load of
average work load less than 70%of the prime power. The operation
time in the situation of 100%prime power no more than 500 hours.
Permit 10%overload running1hours in any 12 hours of continuous
operation period. The overload 10% power running time of every year
no more than 25 hours.
Standby Power: The annual total standby power load should be less than 80%and the
average running time shall be less than200 hours. Among them the
standby power point should be no more than 25 hours a year.
Specification of 500kVA China Diesel Generator:
| Model | A-SH550 |
| Max. Power | kVA | 550.0 |
| kW | 440.0 |
| Rate Power | kVA | 500.0 |
| kW | 400.0 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 721.7 |
| Dimension For Open-type Genset | mm | 3600 X 1800 X 2150 |
| Weight For Open-type Genset | kg | 4250 |
| Dimension For Soundproof Genset | mm | 4700 X 1900 X 2300 |
| Weight For Soundproof Generator | kg | 4980 |
| Noise Level at 7 Meters | dBA | 78 |
| Fuel Tank Capacity | Litres | 650 |
| Battery | Two of 200A Free Maintenance Battery |
The 500kVA China diesel generator set powered by SDEC diesel engine
model SC25G690D2, produced by Shangchai Diesel Engine Co., Ltd.
which have more than 70years experience for produce the diesel
engine. It is one of the most popular diesel engine brand in China.
Specification of SDEC Diesel Engine:
| Engine Manufacturer | Shanghai Diesel Engine Co., Ltd. |
| Engine Brand | SDEC |
| Engine Model | SC25G690D2 |
| No. of Cylinder | 6 Cylinder in line |
| Aspiration | Turbocharged and Air to Air Aftercooled |
| Governor | Electric |
| Engine Max. Output Power | kW | 505 |
| Displacement | L | 25.800 |
| Starting Voltage | V | 24 |
| Bore | mm | 135 |
| Stroke | mm | 150 |
| Lubrication Oil Capacity | L | 65 |
| Compression Ratio | 16 : 1 |
| Coolant Capacity | L | 48 |
| Fuel Consumption at 100% Load | L/H | 105.2 |
Use Hosem brand brushless alternator model ASF354C, produced by
Fuzhou Hosem Power Co., Ltd. for the 500kVA diesel generator, the
rate power of the alternator is 500kVA at 50Hz, and standby power
is 550kVA at 50Hz. The Hosem alternator with automatic voltage
regulation (AVR), self-excitation and 12 leads can be changed the
voltage of alternator from 110VA to 690V depend on users' demand.
Specification of Hosem Brushless Alternator:
| Alternator Manufacturer | Fuzhou Hosem Power Co., Ltd. |
| Alternator Model | ASF354C |
| Alternator Brand | Hosem |
| Rate Output | kVA | 500 |
| Frequency | Hz | 50Hz |
| Current | A | 721.7 |
| Insulation | Class H |
| Voltage Regulation | SX440 |
| Protection Grade | IP23 |
| Working Temperature without Output Decrease | ≤1000m |
| Phase | 3 Phase |
| Temperature Rise | 125 Degree Celsius |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for
optional |
|
Specification of Control Panel:
| Controller Brand | Smartgen |
| Controller Model | HGM6120N |
| Breaker Brand | Delixi |
| Breaker Capacity | A | 800 |
| Battery Charger | Smartgen Model BAC06A |
| Emergency Stop Button | Supply |
| Automatic Mains Fail (AMF) | Supply |
| Fuel Level | Supply |
| Automatic Transfer Switch | ATS as optional part |
| Mains Monitor | Supply with AMF Function |
| The control panel supply the full protection with alarm and
shutdown of the diesel generator include Start-up fault (generator
set shutdown), High coolant temperature (alarm and generator set
shutdown), Low oil pressure (alarm and generator set shutdown), Low
fuel level (alarm), Low cooling fluid level alarm (as optional),
Overload (alarm and generator set shutdown), Battery voltage high
(alarm). |
|
|
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand
controller. |
FAQ:
Q: What the supply range of SDEC Diesel Generator?
A: The supply range from 25kVA to 1000kVA with 50Hz, and 25kVA to
413kVA for 60Hz.
Q: What the MOQ?
A: 1 Set.
Q: What the payment term?
A: 30% of total amount paid by T/T for deposit, and 70% of total
amount paid before shipment. Or the L/C payment.
Q: What the delivery time?
A: 20 Days for 1-3Units Order, 35days for 4-20Units Order.
Q: Which seaport you can ship the diesel generator to oversea
country?
A: We can ship the diesel generator from Fuzhou Port, China. And
Fuzhou port is a international seaport in China.
Q: What kind of the trade term you can offer?
A: We can offer with FOB, CNF, CIF or CIP.
Q: Do you have other voltage for optional?
A: Yes, we can customized made from 110V to 690V for client's
optional.
Q: How many kinds of the diesel generator you have for optional?
A: We have open-type, soundproof type, waterproof type and trailer
type diesel generator for optional.
