Diesel Generator Set For Home , Yuchai Generator , Diesel Power
Generator Set , Diesel Powered Generator

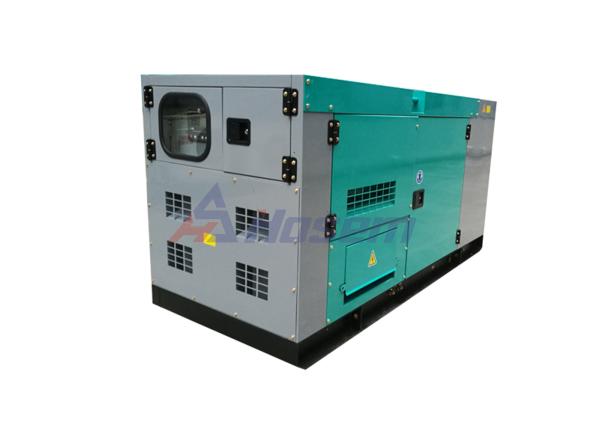

Yuchai Diesel Generator Set
| Model | A-YC28 |
| Standby Power | kVA | 28 |
| kW | 22 |
| Prime Power | kVA | 25 |
| kW | 20 |
| Frequency | Hz | 50 |
| Output Voltage | V | 400/230 |
| Oil Consumption | L/H | 0.005 |
| Dimension For Open-type | mm | 1450X750X1100 |
| Weight For Open-type | kg | 780 |
| Dimension For Soundproof | mm | 2100X800 X 1250 |
| Weight For Soundprof | kg | 1200 |
| Noise For Soundproof | dBA | 70 |
Engine Data
| Engine Manufacturer | Guangxi Yuchai Machinery Co., Ltd. |
| Engine Brand | Yuchai |
| Engine Model | YC4FA40Z-D20 |
| No.of Cylinder | 4 Cylinder in line |
| Bore | mm | 92 |
| Stroke | mm | 100 |
| Displacement | L | 2.66 |
| Aspiration | Turbocharged |
| Rate Speed | R.P.M. | 1500 |
| Governor | Mechanical |
| Lubrication Oil Capacity | L | 9 |
| Starting Voltage | V | 24 |
| Engine Max.Output Power | kW | 30.8 |
Alternator Data
| Alternator Manufacturer | Fuzhou Hosem Power Co., Ltd. |
| Alternator Brand | Hosem Power |
| Alternator Model | ASF184FS |
| Rate Output | kVA | 25 |
| Frequency | Hz | 50 |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Protection Grade | IP23 |
| Alternator for choice | We also have Leroy Somer, Marathon, Mecc Alte and Chinese brand
Brushless alternator for your choice. |
Controller Data
| Controller | Deepsea Brand Model DSE7320 |
| Function of control panel | Automatic genset start/stop |
| Automatic battery charger |
| Emergency stop |
| AMF (Automatic Mains Fault) |
| Remote control |
| Micro-processor based design |
| LED alarm indication and Sound alarm |
| Display of the controller | Generator voltage: Uab, Ubc, Uca |
| Generator current: Ua, Ub, Uc |
| Generator temp.: ℃/℉ both display |
| Generator frequency: Hz |
| Generator power: kW, kVA, kWh, kVAr, kVArh, kVAh |
| Generator starts count: 999999 times (Max) |
| Generator pressure: kPa/Psi/Bar both display |
| Charging Voltage: V |
| Battery Voltage: V DC |
| Protection of Diesel Generator | Over / Under Speed Alarm and Shutdown |
| Start / Stop Failure Alarm |
| Over Current Alarm and Shutdown |
| Under / Over Generator Voltage Alarm and Shutdown |
| Low Oil Pressure Alarm and Shutdown |
| High Engine Temperature Alarm and Shutdown |
| Over Load Alarm and Shutdown |
| Low and High Battery Voltage Alarm |
| Lose of Speed Signal Alarm and Shutdown |
| Charge Fail Alarm |
Our Adervantage:
1. We are the original supplier of Yuchai engine assembly and engine parts.
2. We can give strong technical support.
3. We can matching the engine assembly and parts quickly and
accurately.
4. We can produce according to the special requirements of the
customers.
FQL:
Q1. Can you provide technical support?
A: Yes, As an OEM branch of DCEC, we can provide strong technical
support for you. and we can
provide other brands of generators and lister.
Q2: If I only had the engine NO, Can you find the matching parts
quickly for me?
A: Yes, we are equipped with DCEC QuickService Online System that
enables us to provide information of DCEC engine assembly and parts
quickly and accurately.
Q3: How long is the production time of the goods?
A: We have a lot of regular inventory of the parts, it will take
3-7 days after receiving your advance payment. and the engine
assembly delivery time depends on the items and specification of
customers.
Q4: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We will show you
the photos of the goods and packages before you pay the balance.
Q5. What is your packing method?
A: Generally, the engine assembly is packed in wooden case, the
parts is packed in carton. And we can also according to customers
requests.
