Yuchai 1000kW Diesel Generator For Building , 1MW Diesel Generator
For Sale

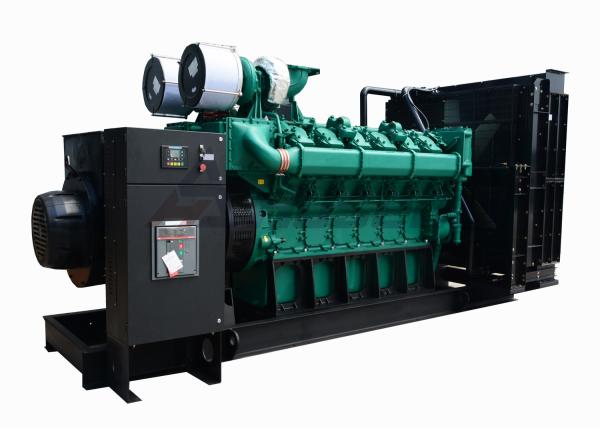

The 1000kW diesel generator powered by Yuchai brand diesel engine
model YC12VC1680L and Hosem brand alternator model ASF404G. The
diesel generator set with heavy-duty type, can be use as the
continuous power. The diesel generator standby power is 1100kW /
1375kVA.
Specification of 1000kW Diesel Generator:
| Model | A-YC1375 |
| Max. Power | kVA | 1375.0 |
| kW | 1100.0 |
| Rate Power | kVA | 1250.0 |
| kW | 1000.0 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 1804.3 |
| Dimension For Open-type Genset | mm | 4950 X 1800 X 2300 |
| Weight For Open-type Genset | kg | 11850 |
| Dimension For Soundproof Genset | mm | 12192 X 2438 X 2896 |
| Weight For Soundproof Generator | kg | 15500 |
| Noise Level at 7 Meters | dBA | 85 |
| Fuel Tank Capacity | Litres | 700 |
| Battery | Four of 150A Free Maintenance Battery |
YC12VC series diesel engine is a classic product independently
developed by Yuchai. It has the advantages of energy saving and
environmental protection, excellent performance, compact structure,
reliable and durable, etc. The pollutant emission, power, economy,
and reliability indicators have reached the international advanced
level.
Specification of the Yuchai Diesel Engine:
| Engine Manufacturer | Guangxi Yuchai Machinery Group Co., Ltd. |
| Engine Brand | Yuchai |
| Engine Model | YC12VC1680L-D20 |
| No. of Cylinder | 12Cylinder V Type |
| Aspiration | Turbocharged & Aftercooled |
| Governor | Electric |
| Engine Max. Output Power | kW | 1230 |
| Displacement | L | 79.170 |
| Starting Voltage | V | 24 |
| Bore | mm | 200 |
| Stroke | mm | 210 |
| Lubrication Oil Capacity | L | 280 |
| Compression Ratio | 13.5 : 1 |
| Fuel Tank Capacity | L | 700 |
| Fuel Consumption at 100% Load | L/H | 263.1 |

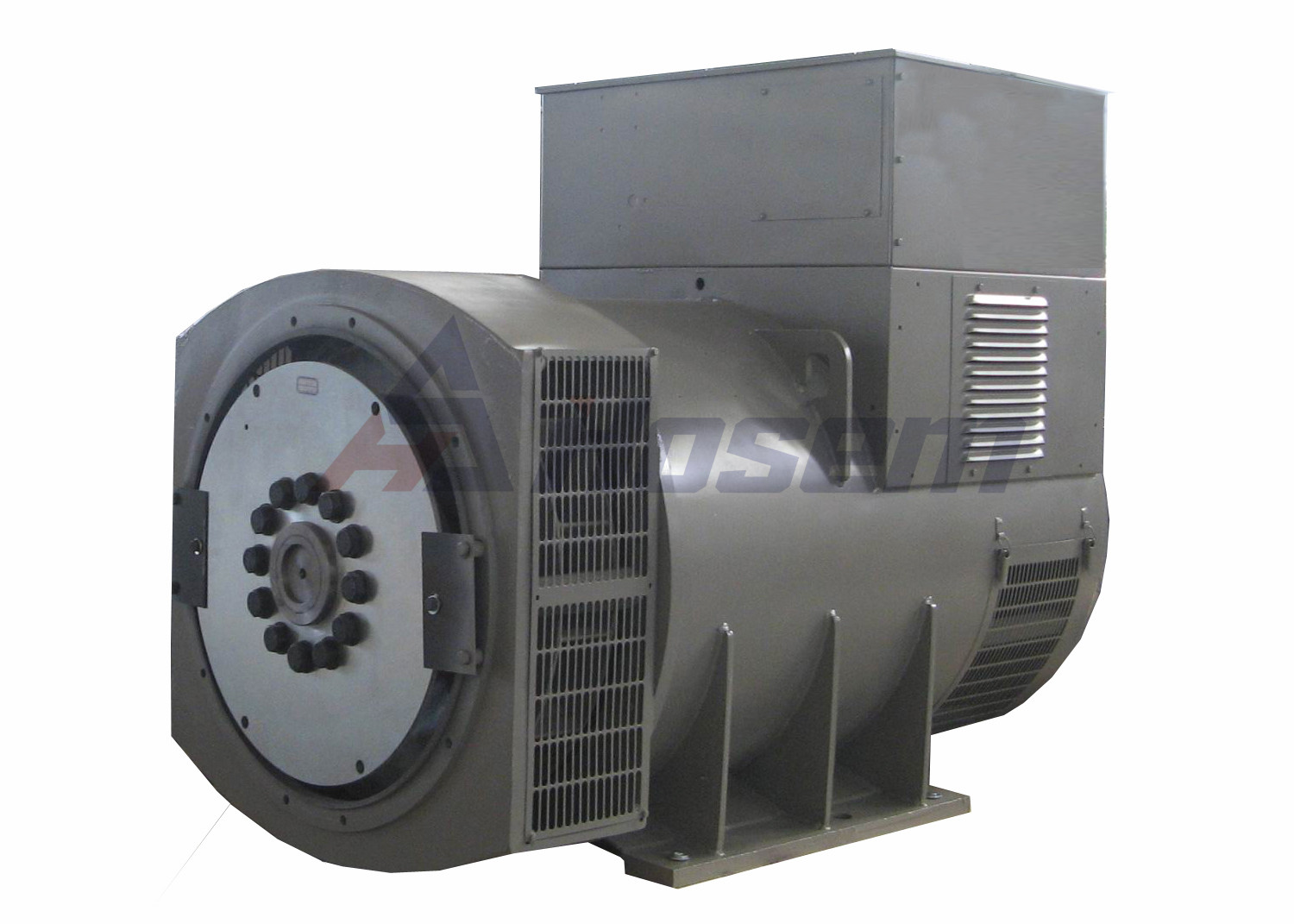

Features of Hosem Brushless Alternator:
- Meets all global leading generator standards;
- Class H insulation meets harsh environmental requirements;
- 2/3 winding endings suppress excessive neutral current;
- Single bearing or double bearing structure for optional;
- Easy to install and maintain;
- Standard maintenance-free sealed bearings;
- Standard IP23 protection level;
- Standard MX321 AVR permanent magnet generator excitation isolates
the control system from the output;
- Three-phase induction detection and +-0.5% voltage adjustment rate.
Specification of Hosem Brushless Alternator:
| Alternator Manufacturer | Fuzhou Hosem Power Co., Ltd. |
| Alternator Model | ASF404G |
| Alternator Brand | Hosem |
| Rate Output | kVA | 1250 |
| Frequency | Hz | 50Hz |
| Current | A | 1804 |
| Insulation | Class H |
| Voltage Regulation | MX321 |
| Protection Grade | IP23 |
| Working Temperature without Output Decrease | ≤1000m |
| Phase | 3 Phase |
| Temperature Rise | 125 Degree Celsius |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for
optional |
|
Specification of Control Panel for 1000kW Diesel Generator:
| Controller Brand | Deepsea |
| Controller Model | DSE7320 |
| Breaker Brand | Delixi |
| Breaker Capacity | A | 2000 |
| Battery Charger | Smartgen Model BAC06A |
| Emergency Stop Button | Supply |
| Automatic Mains Fail (AMF) | Supply |
| Fuel Level | Supply |
| Automatic Transfer Switch | ATS as optional part |
| Mains Monitor | Supply with AMF Function |
| The control panel supply the full protection with alarm and
shutdown of the diesel generator include Start-up fault (generator
set shutdown), High coolant temperature (alarm and generator set
shutdown), Low oil pressure (alarm and generator set shutdown), Low
fuel level (alarm), Low cooling fluid level alarm (as optional),
Overload (alarm and generator set shutdown), Battery voltage high
(alarm). |
|
|
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand
controller. |
FAQ:
Q: What the supply range of Yuchai Diesel Generator?
A: The supply range from 20kVA to 2000kVA with 50Hz or 60Hz.
Q: What the MOQ?
A: 1 Set.
Q: What the payment term?
A: 30% of total amount paid by T/T for deposit, and 70% of total
amount paid before shipment. Or the L/C payment.
Q: What the normally delivery time?
A: 20 Days for 1-3Units Order, 35days for 4-20Units Order.
Q: Which seaport you can ship the diesel generator to oversea
country?
A: We can ship the diesel generator from Fuzhou Port, China. And
Fuzhou port is a international seaport in China.
Q: What kind of the trade term you can offer?
A: We can offer with FOB, CFR, CIF or CIP.
Q: Do you have other voltage for optional?
A: Yes, we can customized made from 110V to 690V for client's
optional.
Q: How many kinds of the diesel generator you have for optional?
A: We have open-type, soundproof type, waterproof type and trailer
type diesel generator for optional.
Q: Does your generator have global warranty?
A: Yes. Gensets powered by global brand engine which with the
global warranty service. And the alterntors Stamford, Leroy somer,
Meccalte, Marathon also have the global warranty service.If you use
the Chinese brand diesel engine and alternator, we will undertake
the warranty, and during the warranty period, if there is any
quality problem, we will supply the spare parts to replacement
without charges. and the courier charges by air of spare parts will
be paid by us.
Q: Can you customized made the diesel generator?
A: Yes. Our generators can be customized depending on customers'
detailed requirements. We can supply diesel generators for rental
business, home use, inudstrial projects, army projects, power
station, etc. The diesel generators we supply are suitable for
indoor and outdoor use, lower and high temperature environment.
