Name: Waterproof 500kW DP180LB Doosan Diesel Generator Set
Brand: Hosem
Price: 34500.0 USD

Add to Cart

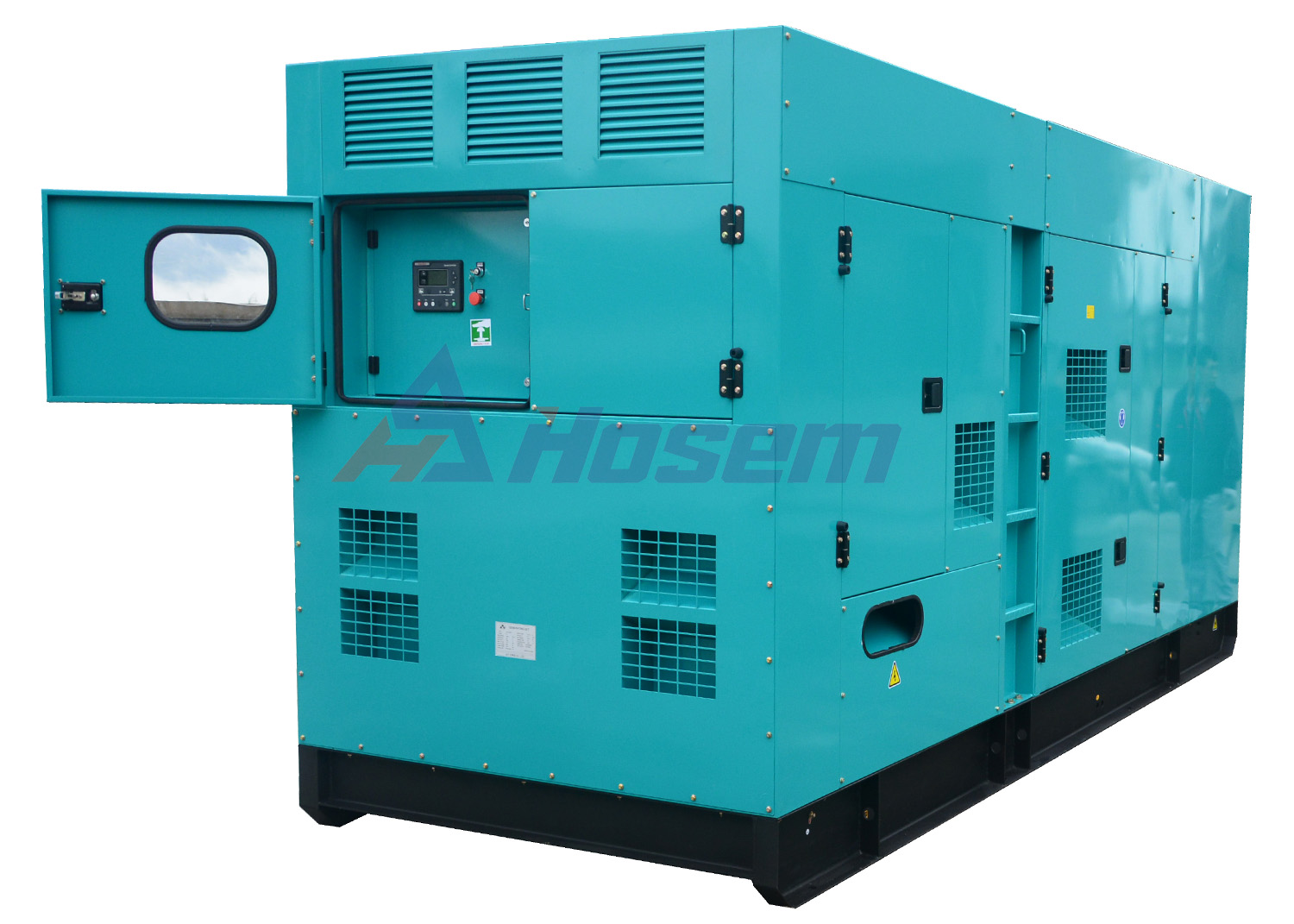

Waterproof and Soundproof Diesel Generator Set Powered by Doosan Engine DP180LB for Continue Working

Technical Data of Continuous Power 500kW Doosan Diesel Generator:

Model		A-D688
Max. Power	kVA	688
Max. Power	kW	550
Rate Power	kVA	625
Rate Power	kW	500
Frequency	Hz	50
Rate Voltage	V	400/230
Rate Current	A	902.1
Fuel Tank Capacity	L	800
Dimension For Open-type Genset	mm	3250X 1400 X 2100
Weight For Open-type Genset	kg	5200
Dimension For Soundproof Genset	mm	4500 X 1550 X 2400
Weight For Soundproof Generator	kg	6200
Noise Level for Soundproof Generator at 7M	dBA	80
Battery		Four of 150Ah Free Maintenance Battery

Waterproof and Soundproof Diesel Generator Set Powered by Doosan Engine DP180LB for Continue Working

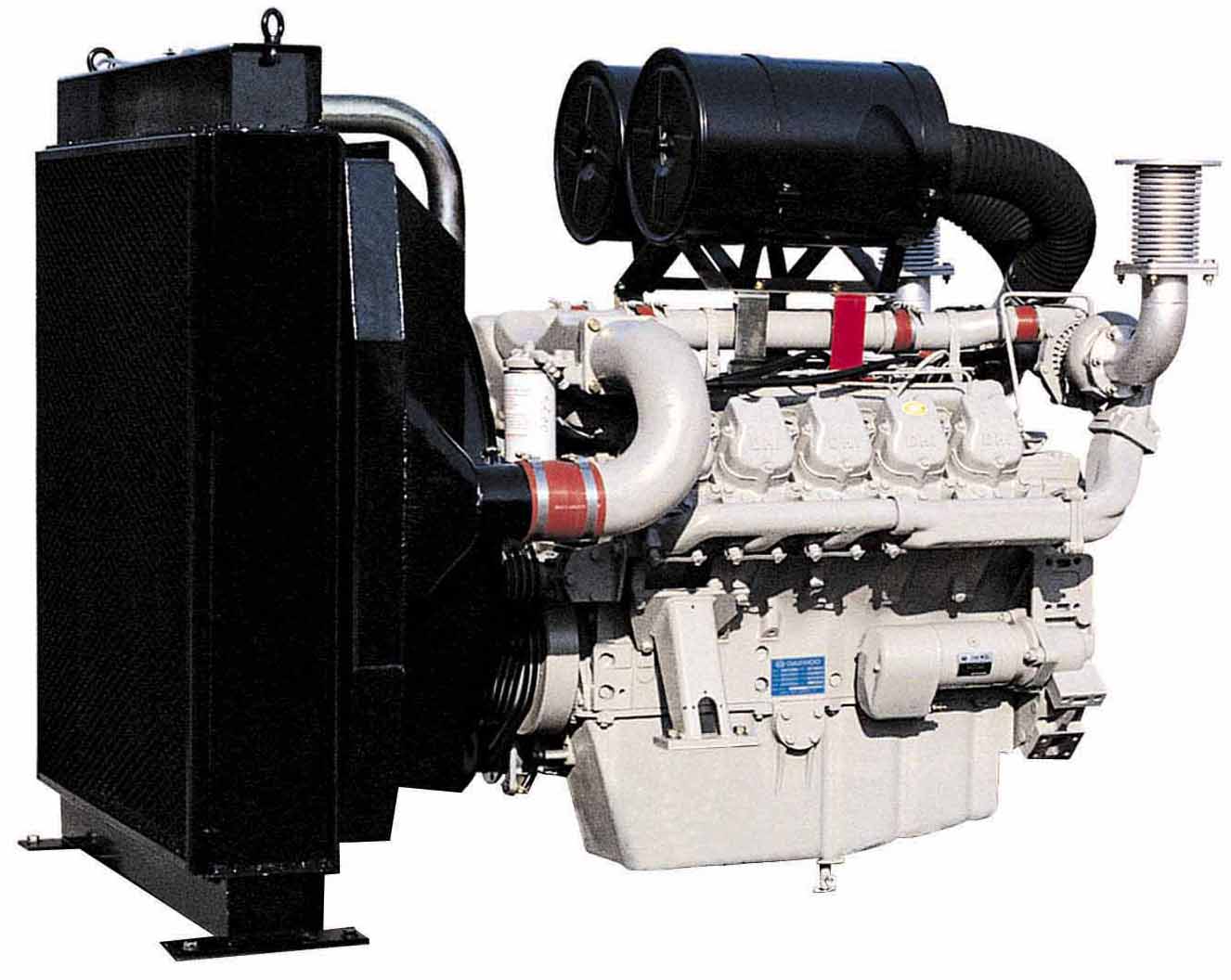

Technical Data of Doosan Diesel Engine DP180LB:

Waterproof and Soundproof Diesel Generator Set Powered by Doosan Engine DP180LB for Continue Working

Technical Data of Stamford Alternator HCI 544 FS:

Alternator Manufacturer		Cummins Generator Technologies
Alternator Model		HCI 544 F-S
Alternator Brand		Stamford
Rate Output	kVA	625
Frequency	Hz	50Hz
Altitude	M	≤1000
Insulation		Class H
Phase		3 Phase
Working Temperature without power decrease		≤40℃
Working Altitude without power decrease		≤1000m
Automatic Voltage Regulation		SX440
Protection Grade		IP23
Alternator for optional	Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

Waterproof and Soundproof Diesel Generator Set Powered by Doosan Engine DP180LB for Continue Working

Technical Data of Automatic Control Panel:

Controller Brand	ComAp
Controller Model	IL-NT AMF9
Breaker Brand	Delixi
Breaker Capacity (A)	1000
Battery Charger	Smartgen Model BAC06A
Emergency Stop Button	Supply
Automatic Mains Fail (AMF)	Supply
Fuel Level	Supply
Automatic Transfer Switch	ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).


Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Waterproof and Soundproof Diesel Generator Set Powered by Doosan Engine DP180LB for Continue Working
