Stamford Alternator P086TI Engine 200kVA Doosan Generator Set

Ask Lasest Price
Brand Name :	Hosem
Model Number :	A-D220S
Certification :	ISO9001 Certificate
Price :	USD12000.00 to USD16000.00
Delivery Time :	20 Days

Add to Cart

Product Details
Company Profile

Stamford Alternator P086TI Engine 200kVA Doosan Generator Set

200kVA Dooan Diesel Generator with Engine Model P086TI and Stamford Alternator

Doosan diesel generator rated output 160kW / 200kVA with Doosan diesel engine P086TI and Stamford brushless alternator UCI 274 H. The Doosan diesel engine is imported from Korea, produced by Doosan Infracore Co., Ltd. And the Doosan diesel engine is made with the most advanced technologies, the diesel engine with Euro Stage II emission standard.
Doosan industrial generator uses the Stamford alternator model UCI 274 H with rated output 200kVA, produced by Cummins Generator Technologies. It is one of the best quality, most famous brand and the most popular alternators brand in the world. The alternator is the brushless type with self-excitation and AVR (Automatic Voltage Regulation)

Doosan diesel generator control panel uses the Deepsea brand controller model DSE7320, made in the U.K. The control panel supply the automatic operation function, AMF and fully monitor & protection of the diesel generator.

Specification of the 200kVA Doosan Diesel Generator:

Model		A-D220
Max. Power	kVA	220
Max. Power	kW	176
Rate Power	kVA	200
Rate Power	kW	160
Frequency	Hz	50
Rate Voltage	V	400/230
Rate Current	A	288.7
Dimension For Open-type Genset	mm	2590 X 950 X 1600
Weight For Open-type Genset	kg	1900
Dimension For Soundproof Genset	mm	3350 X 1180 X 1900
Weight For Soundproof Generator	kg	2690

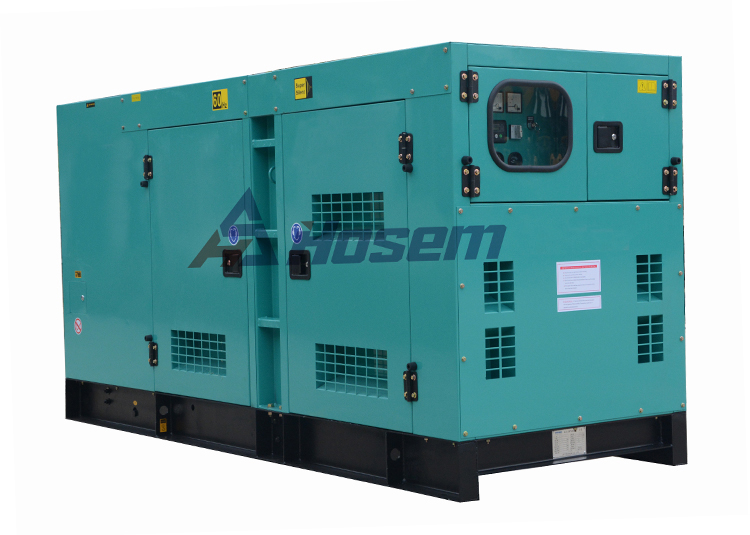

200kVA Soundproof Doosan Diesel Generator
Doosan Diesel Engine for 200kVA Diesel Generator

Specification of 200kVA Doosan Diesel Generator:

Engine Manufacturer		Doosan Infracore Co., Ltd
Engine Brand		Doosan
Engine Model		P086TI
No. of Cylinder		6 Cylinder in line
Aspiration		Turbocarged
Governor		Electric
Engine Max. Output Power	kW	199
Displacement	L	8.1
Starting Voltage	V	24
Bore	mm	111
Stroke	mm	139
Lubrication Oil Capacity	L	19

Alternator for 200kVA Doosan Diesel Generator
Specification of Stamford Alternator for 200kVA Diesel Generator:

Alternator Manufacturer		Cummins Generator Technologies
Alternator Model		UCI 274 H
Alternator Brand		Stamford
Rate Output	kVA	200
Frequency	Hz	50Hz
Altitude	M	≤1000
Insulation		Class H
Voltage Regulation		AVR Model SX440
Protection Grade		IP23
Alternator for optional	Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

Control Panel Connection of 200kVA Doosan Diesel Generator

Specification of Control Panel:

Controller Brand	Deepsea
Controller Model	DSE7320
Breaker Brand	Delixi
Breaker Capacity	400A
Battery Charger	Supply
Emergency Stop Button	Supply
Automatic Mains Fail (AMF)	Supply
The control panel supply the full protection with Alarm and Shutdown of the diesel generator include High Temp, Low Oil Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under / Over Voltage etc.


Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.
