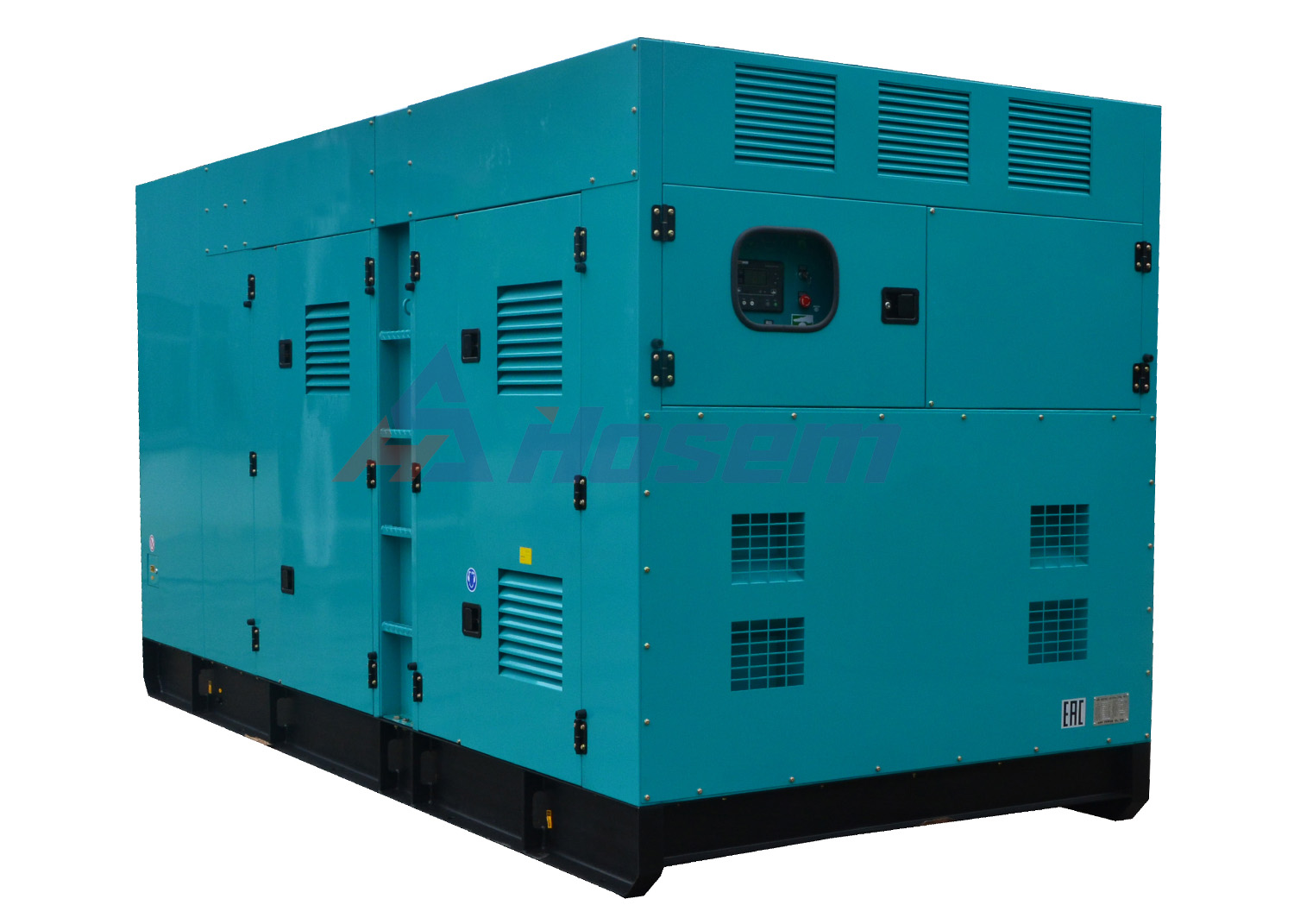

Silent Volvo Diesel Generator Set Rated Output 400kVA 50Hz 400V for
Outdoor
400kVA Volvo silent diesel generator set assembles with Volvo
diesel engine model TAD1344GE with Leroy Somer alternator model
TAL-A47-A. The Volvo diesel engine produced by Volvo Penta
Industrial in Sweden. which is one of the most brand diesel engine
brand in the world.
The TAD1344GE diesel engine is used the most advance Volvo engine
technologies with 6 cylinders and turbocharger, the emission
standard of the engine is Euro Stage II.
Each Volvo diesel generators with two of free maintenance batteries
for starting. And the battery charger is the standard configuration
of Volvo diesel generator set.
Technical Data of 400kVA Silent Volvo Diesel Generator Set:
| Model | A-V440 |
| Max. Power | kVA | 440 |
| kW | 360 |
| Rate Power | kVA | 400 |
| kW | 320 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 415/240 |
| Rate Current | A | 556A |
| Fuel Tank Capacity | L | 450 |
| Dimension For Open-type Genset | mm | 3200 X 1150X 1650 |
| Weight For Open-type Genset | kg | 2850 |
| Dimension For Soundproof Genset | mm | 3900 X 1300 X 1900 |
| Weight For Soundproof Generator | kg | 3700 |
| Noise Level for Soundproof Generator at 7M | dBA | 80 |
| Battery | Two of 150A Free Maintenance Battery |

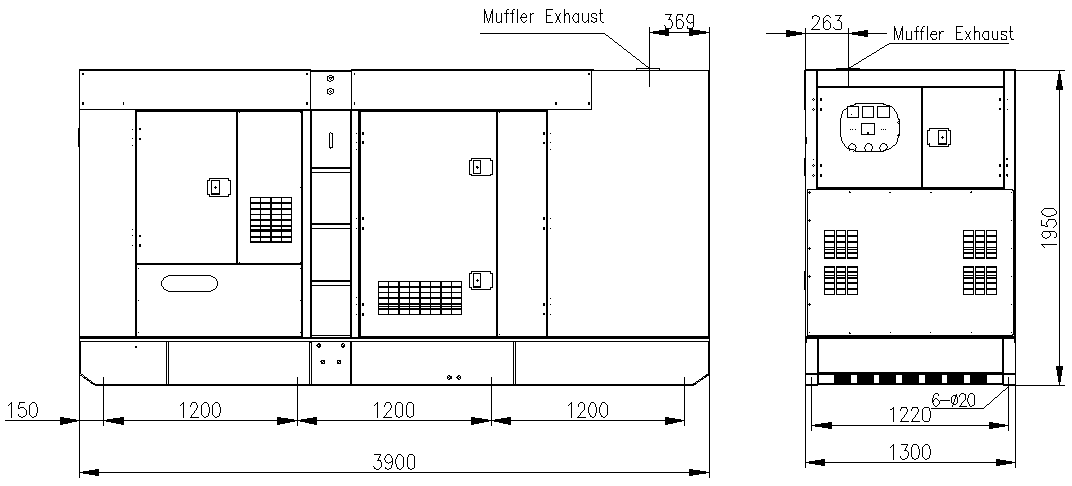

Design of 400kVA Silent Volvo Diesel Generator Set
Technical Data of Volvo Diesel Engine:
| Engine Manufacturer | Volvo Penta Industrial |
| Engine Brand | Volvo |
| Engine Model | TAD1344GE |
| No. of Cylinder | 6 Cylinder in line |
| Aspiration | Turbocharged |
| Governor | ECU |
| Engine Max. Output Power | kW | 387 |
| Displacement | L | 12.1 |
| Compression Ratio | 18.1 : 1 |
| Starting Voltage | V | 24 |
| Bore | mm | 131 |
| Stroke | mm | 150 |
| Lubrication Oil Capacity | L | 35 |
| Intake Air Flow | M3/Min | 25 |
| Fuel Consumption at 100% Load | L/H | 87.3 |
Technical Data of Leroy Somer Alternator:
| Alternator Manufacturer | Leroy Somer |
| Alternator Model | TAL-A47-A |
| Alternator Brand | Leroy Somer |
| Rate Output | kVA | 415 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Phase | 3 Phase |
| Working Temperature without power decrease | ≤40℃ |
| Working Altitude without power decrease | ≤1000m |
| Automatic Voltage Regulation | R205 |
| Protection Grade | IP23 |
| Alternator for optional | Stamford, Marathon, Mecc Alte and Hosem Brushless alternator for
optional |
|
Technical Data of Control Panel:
| Controller Brand | ComAp |
| Controller Model | AMF25 |
| Breaker Brand | Delixi |
| Breaker Capacity (A) | 630 |
| Battery Charger | Smartgen Model BAC06A |
| Emergency Stop Button | Supply |
| Automatic Mains Fail (AMF) | Supply |
| Fuel Level | Supply |
| Automatic Transfer Switch | ATS as optional part |
| The control panel supply the full protection with alarm and
shutdown of the diesel generator include Start-up fault (generator
set shutdown), High coolant temperature (alarm and generator set
shutdown), Low oil pressure (alarm and generator set shutdown), Low
fuel level (alarm), Low cooling fluid level alarm (as optional),
Overload (alarm and generator set shutdown), Battery voltage high
(alarm). |
|
|
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand
controller. |
FAQ:
Q: What the supply range of Volvo Diesel Generator Set?
A: The supply range from 94kVA to 756kVA with 50Hz or 60Hz for
optional.
Q: What the emission standard for the Volvo diesel engine?
A: The emission standard is Euro Stage II or Euro Stage III for
your optional.
Q: What the MOQ?
A: 1 Set.
Q: What the payment term?
A: 30% of total amount paid by T/T for deposit, and 70% of total
amount paid before shipment. Or the L/C payment.
Q: What the delivery time?
A: 20 Days for 1-3Units Order, 35days for 4-20Units Order.
Q: Which seaport you can ship the diesel generator to oversea
country?
A: We can ship the diesel generator from Fuzhou Port, China. And
Fuzhou port is a international seaport in China.
Q: What kind of the trade term you can offer?
A: We can offer with FOB, CNF, CIF or CIP.
Q: Do you have other voltage for optional?
A: Yes, we can customized made from 110V to 690V for client's
optional.
Q: How many kinds of the diesel generator you have for optional?
A: We have open-type, soundproof type, waterproof type and trailer
type diesel generator for optional.
Q: Does your generator have global warranty?
A: Yes. Gensets powered by global brand engine which with the
global warranty service, such as the Cummins, Perkins, Volvo, Deutz
brand diesel engine. And the alterntors Stamford, Leroy somer,
Meccalte, Marathon also have the global warranty service. If you
use the Chinese brand diesel engine and Hosem brand alternator, we
will undertake the warranty, and during the warranty period, if
there is any quality problem, we will supply the spare parts to
replacement without charges. and the courier charges by air of
spare parts will be paid by us.
Q: Can you customized made the diesel generator?
A: Yes. Our generators can be customized depending on customers'
detailed requirements. We can supply diesel generators for rental
business, home use, inudstrial projects, army projects, power
station, etc. The diesel generators we supply are suitable for
indoor and outdoor use, lower and high temperature environment.
