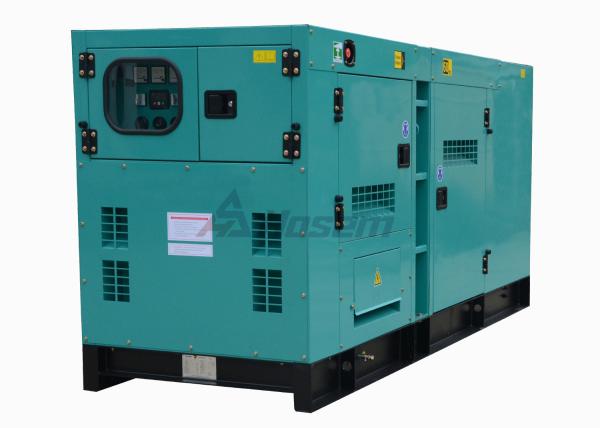

250kW Volvo Power Generator with Soundproof Canopy for Outdoor Use
Supply the 250kW Volvo power generator with Volvo diesel engine
model TAD1341GE produced by Volvo Penta Industrial in Sweden, and
Stamford brushless alternator with self-excitation model HCI 444
ES, produced by Cummins Generator Technologies.
Specification of 250kW Volvo Power Generator:
| Model | A-V344 |
| Max. Power | kVA | 344 |
| kW | 275 |
| Rate Power | kVA | 313 |
| kW | 250 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 451.0A |
| Fuel Tank Capacity | L | 500 |
| Dimension For Open-type Genset | mm | 3100 X 1150X 1650 |
| Weight For Open-type Genset | kg | 3150 |
| Dimension For Soundproof Genset | mm | 3900 X 1300 X 1900 |
| Weight For Soundproof Generator | kg | 3850 |
| Noise Level for Soundproof Generator at 7M | dBA | 78 |
| Battery | Two of 150A Free Maintenance Battery |
Technical Data of Volvo Diesel Generator:
| Engine Manufacturer | Volvo Penta Industrial |
| Engine Brand | Volvo |
| Engine Model | TAD1341GE |
| No. of Cylinder | 6 Cylinder in line |
| Aspiration | Turbocharged |
| Governor | ECU |
| Engine Max. Output Power | kW | 308 |
| Displacement | L | 9.4 |
| Compression Ratio | 18.1 : 1 |
| Starting Voltage | V | 24 |
| Bore | mm | 120 |
| Stroke | mm | 138 |
| Lubrication Oil Capacity | L | 35 |
| Intake Air Flow | M3/Min | 20 |
| Fuel Consumption at 100% Load | L/H | 64.7 |

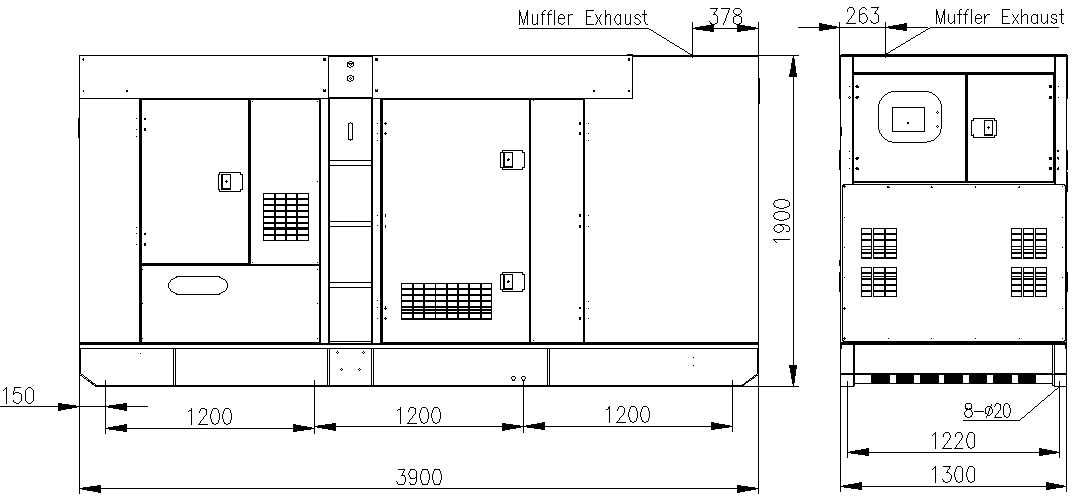

Design of 350kVA Volvo Power Generator with Soundproof Canopy
Specification of Stamford Alternator:
| Alternator Manufacturer | Cummins Generator Technologies |
| Alternator Model | HCI 444 ES |
| Alternator Brand | Stamford |
| Rate Output | kVA | 325 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Phase | 3 Phase |
| Working Temperature without power decrease | ≤40℃ |
| Working Altitude without power decrease | ≤1000m |
| Automatic Voltage Regulation | SX440 |
| Protection Grade | IP23 |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for
optional |
|
Specification of Control Panel for 250kW Volvo Power Generator:
| Controller Brand | Smartgen |
| Controller Model | HGM6120N |
| Breaker Brand | Delixi |
| Breaker Capacity (A) | 630 |
| Battery Charger | Smartgen Model BAC06A |
| Emergency Stop Button | Supply |
| Automatic Mains Fail (AMF) | Supply |
| Fuel Level | Supply |
| Automatic Transfer Switch | ATS as optional part |
| The control panel supply the full protection with alarm and
shutdown of the diesel generator include Start-up fault (generator
set shutdown), High coolant temperature (alarm and generator set
shutdown), Low oil pressure (alarm and generator set shutdown), Low
fuel level (alarm), Low cooling fluid level alarm (as optional),
Overload (alarm and generator set shutdown), Battery voltage high
(alarm). |
|
|
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand
controller. |
Controller Connection of Diesel Generator
The details supply scope of the 250kW Volvo Power Generator as
follows:
Volvo diesel generator with rated output 250kW / 313kVA, standby
output 275kW / 344kVA at 50Hz, 400/230V.
Volvo diesel engine model TAD1341GE with max. output 308kW at 1500
RPM, the diesel engine with Euro II emission standard.
Stamford brand brushless alternator with self-excitation and
automatic voltage regulation ( AVR SX440 ), rated output at 325kVA
at 50Hz, 400/230V.
Control panel with Smartgen controller HGM6120N and 630A circuit
breaker. The control panel has the manual control mode and
automatic control mode, when you put to automatic control mode, the
control panel will control the Volvo generator set automatic start
and stop. And the control panel has the complete protection of the
diesel engine and alternator.
Steel base frame with 500Litres base fuel tank for 250kW Volvo
diesel generator about 8hours continues running with 100% load.
Supply the soundproof diesel generator and open-type diesel
generator with China engine for users' optional.
Supply 50Hz diesel generator and 60Hz diesel generator for
difference country demand.
The voltage of the diesel generator from 110V to 690V for optional.
