50 Kw Diesel Generator , Cummins Industrial Generators , Cummins Open-Type Generator , Dongfeng Cummins Engine

Specification of Cummins Diesel Generator Set

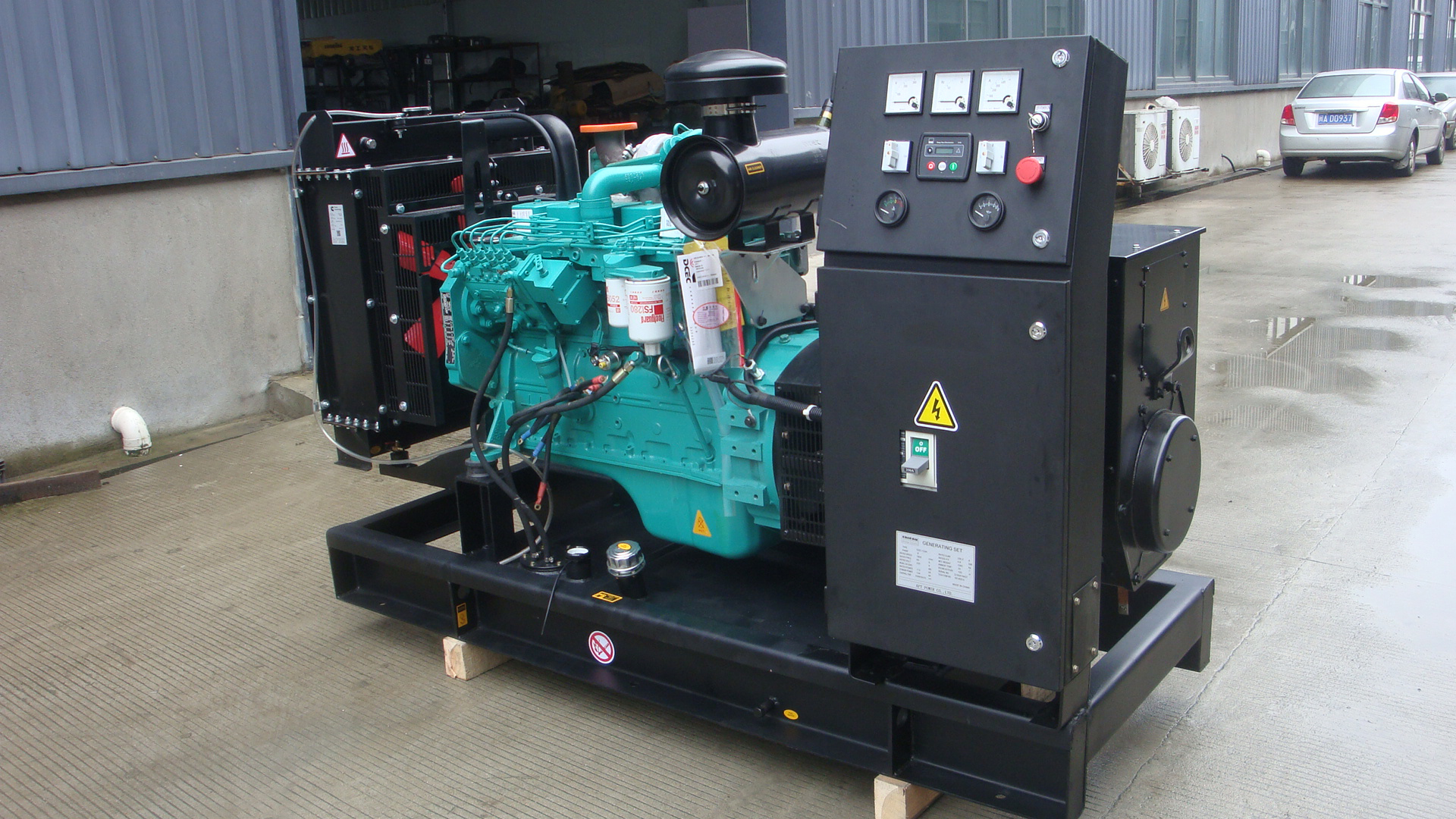

Standard Compose of 50kW Cummins Diesel Generator

Original Cummins Engine
Air Cleaner(Dry-cartridge type)
Fuel Pump
Fuel Filter
Thermostat and Housing
Dry Exhaust Manifold
Blower Fan & Fan Drive
Radiator - Unit Mounted
Electric Starting Motor
Housing & Flywheel
Charging Alternator
Battery Rack & Cables
First filling of oil and filters
First filling of coolant

Brushless Alternator
Self-ventilated and drip-proof construction
Synchronous, Brush-less, Self Exciting, Self Regulating
Direct Coupled With Flex Disk
12 Leads winding
Class H Insulation
Drip-Proof Construction

Exhaust
Built-in Industrial Muffler for Open generators
Built-in Residential Muffler for Silent generators
Rain Cap

Handling
Forklift facilities
Lifting and holding down points
Base Frame
Heavy duty quality steel fabricated welded base plate
Heavy-duty anti-vibration mountings
Stub-up area
Electrical System

Battery (for 50HZ is supplied as standard)
Battery rack and cables
Engine driven battery charger
Battery disconnect switch
32A/4P CHINT MCCB

Canopy(for silent units)
Heavy-duty lockable handles in each door
Large doors for easy access for service and monitoring
Coolant refilling specific hatch
Sound foam
Modular bolted assembly after painting.
Powder coating paint for outdoor usage.
Weatherproof sealed joints.
Cut using high precision numeric control technology.
Bent using high precision numeric control technology.
Glazed acoustic sealed control panel door.
Fuel filter outside enclosure.
In base oil and coolant drains.

Control Panel
HT2000 Control System
Automatic Start Control Panel
* Compact gen-set controller for gen-sets operating for automatic start/stop, data measure and alarming.
* Battery Charger(to be supplied by mains into the 208-240V range)
* On/Off button
* Emergency stop button

Packing
EVA Foam Plastic wrap protection package
Alternator, Engine, and Generating set operator's manual are supplied together with electrical drawings.

Why Choose Hosem Power Generator?
Reasons1: We are More Professional
Most members of Hosem Power have more than 10 years of experience in the generator area, Our mechanical engineers, electrical engineers have more than 20 years of experience in the generator ara. We are always ready to serve to your needs.
Reasons2: Outstanding Quality
Our advantage lies in:
1. Good shock absorption performance: Optimal design of shock absorption system based on computer dynamic simulation.
2. Advanced control system: Full monitoring system control strategy found on reliability design.
3. Low noise: Tailor custom-engineered exhaust silencer system for each set.
4. Green environmental protection: Diesel generator set combined energy-saving and low emission in one.
Reasons3: Strictly QC Before EX-Factory.
Each and every unit is strictly factory tested before shipment.
1) Parts faults testing
2) Fuel tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insulation testing
6) Noise testing
7) Loading Testing: 25%, 50%, 75%, 100%, 110% load to check verify that all control systems, alarm and shut-down protection.

Fuzhou Hosem Power Co., Ltd. is one of the most famous diesel generator manufacturers in China. The Hosem brand generator set output range from 3kVA to 3000kVA with frequency at 50Hz or 60Hz, the voltage of the diesel generator from 110kVA to 690V for client options.

The diesel generator powered by Cummins diesel engine, Deutz diesel engine, Perkins diesel engine, Volvo diesel engine, Fawde diesel engine, Yuchai diesel engine, Ricardo diesel engine and other famous brand diesel engine, Coupled with Stamford alternator, Leroy Somer alternator, Marathon alternator, Mecc Alte alternator and Hosem brand alternator for optional.

Hosem Power uses the most famous brand controller for our diesel generator, include Deepsea brand with model DSE7320, DSE6020 and DSE7420 controller, ComAp brand with model MSR10, AMF25, Nano and IC-NT controller, Smartgen brand with HGM6110, HGM6120, HGM7110, HGM7210 and other models.

Hosem Power can supply the open-type industrial generator, marine generator, natural gas generator, biogas generator, soundproof diesel generator, trailer diesel Generator and Ground Power Unit. The Hosem Power diesel generators are widely used in the Island as the continuing power, hospital, highway, airport, factories and big mall.

We supply one year or 1000 working hours warranty for all of our generator set.
