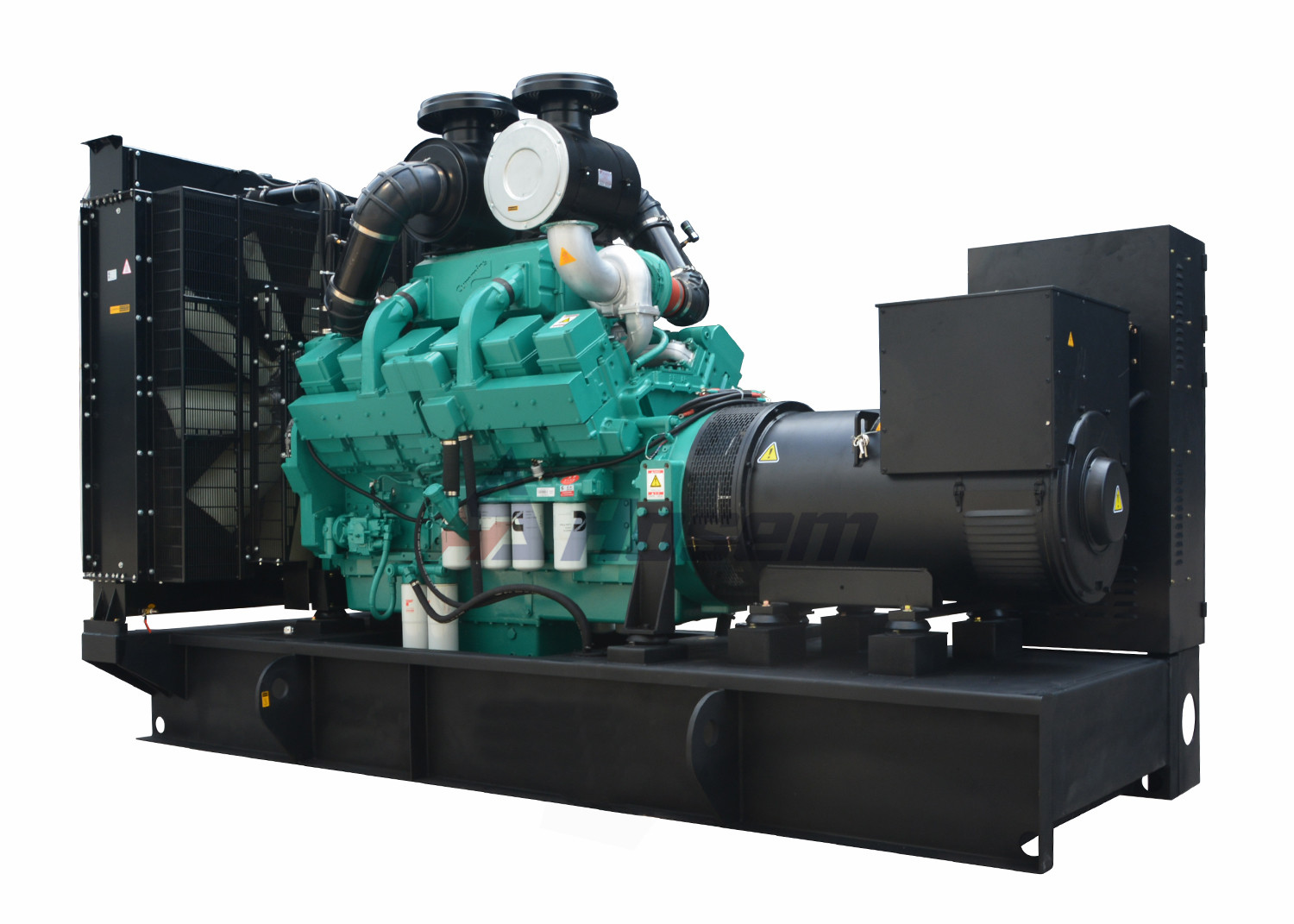

750kVA Open Industrial Power Generator Drived by Cummins Diesel
Engine KTA38-G2
Supply Scope of 750kVA Open Industrial Power Generator:
- Cummins Diesel Engine Model KTA38-G2, Max. Output of Diesel Engine
at 731kW;
- Stamford Alternator LVI 634 B, Rated Output of Alternator at
750kVA;
- Automatic Control Pane with Deepsea DSE7320 Controller;
- 500Litres Base Frame Fuel Tank for Open Type Cummins Generator;
- 50 Degree Celsius Radiator for Diesel Generator Work in High
Temperature;
- 1250A Breaker 750kVA Power Generator.
- Smartgen Brand Automatic Battery Charger;
- Electric Speed Controller for KTA38-G2 Diesel Engine;
- Four of 150A Free Maintenance Battery with Cable Rack;
- MX321 AVR for Stamford Alternator LVI 634 C;
- Control Panel with Electric Components.
- Complete Set of Manual for Diesel Engine, Alternator, Control Panel
and Diesel Generator.
Technical Data of 750kVA Industrial Power Generator:
| Model | A-C825 |
| Max. Power | kVA | 825 |
| kW | 660 |
| Rate Power | kVA | 750 |
| kW | 600 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 1082.6 |
| Fuel Tank Capacity | L | 1000 |
| Dimension For Open-type Genset | mm | 4250 X 1850 X 2400 |
| Weight For Open-type Genset | kg | 7350 |
| Dimension For Soundproof Genset | mm | 6058 X 2438 X 2591 |
| Weight For Soundproof Generator | kg | 9500 |
| Noise Level for Soundproof Generator at 7M | dBA | 80 |
| Battery | Four of 150Amps Free Maintenance Battery |
Technical Data of Cummins Diesel Engine KTA38-G2:
| Engine Brand | Cummins |
| Engine Model | KTA38-G2 |
| No. of Cylinder | 12 Cylinder V Type |
| Aspiration | Turbocharged & Aftercooled |
| Governor | Electric |
| Engine Max. Output Power | kW | 731 |
| Displacement | L | 37.8 |
| Compression Ratio | 14.5 : 1 |
| Starting Voltage | V | 24 |
| Bore | mm | 159 |
| Stroke | mm | 159 |
| Lubrication Oil Capacity | L | 114 |
| Intake Air Flow | M3/Min | 55.2 |
| Fuel Consumption at 100% Load | L/H | 167 |

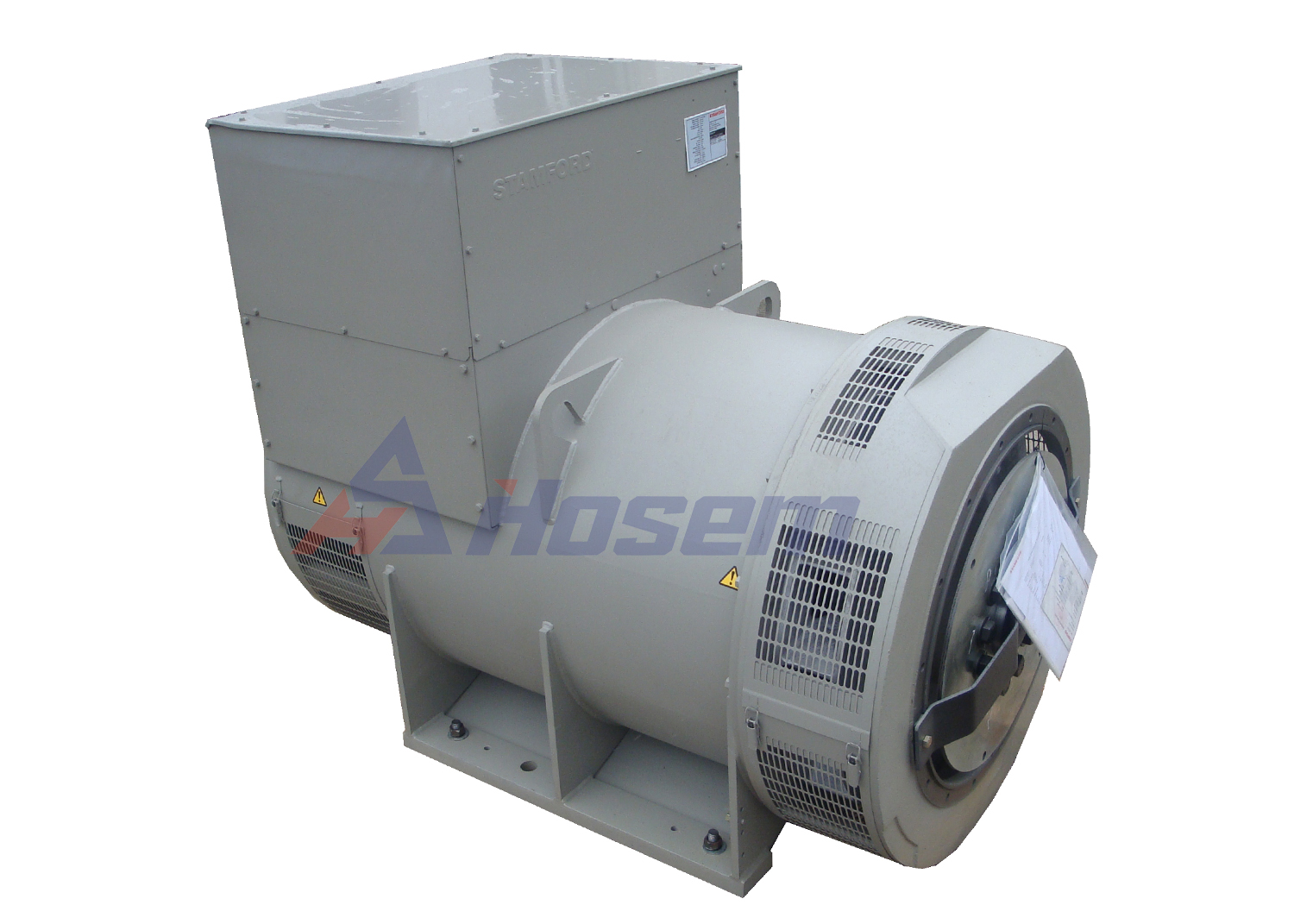

Technical Data of Stamford Alternator:
| Alternator Manufacturer | Cummins Generator Technologies |
| Alternator Model | LVI 634 B |
| Alternator Brand | Stamford |
| Rate Output | kVA | 750 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Phase | 3 Phase |
| Working Temperature without power decrease | ≤40℃ |
| Working Altitude without power decrease | ≤1000m |
| Automatic Voltage Regulation | MX321 |
| Protection Grade | IP23 |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for
optional |
|
Technical Data of Control Panel:
| Controller Brand | Deepsea |
| Controller Model | DSE7320 |
| Breaker Brand | Delixi |
| Breaker Capacity (A) | 1250 |
| Battery Charger | Smartgen Model BAC06A |
| Emergency Stop Button | Supply |
| Automatic Mains Fail (AMF) | Supply |
| Fuel Level | Supply |
| Automatic Transfer Switch | ATS as optional part |
| The control panel supply the full protection with alarm and
shutdown of the diesel generator include Start-up fault (generator
set shutdown), High coolant temperature (alarm and generator set
shutdown), Low oil pressure (alarm and generator set shutdown), Low
fuel level (alarm), Low cooling fluid level alarm (as optional),
Overload (alarm and generator set shutdown), Battery voltage high
(alarm). |
|
|
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand
controller. |
FAQ:
Q: What the supply range of Cummins Diesel Generator?
A: The supply range from 20kVA to 1875kVA with 50Hz or 60Hz.
Q: What the MOQ?
A: 1 Set.
Q: What the payment term?
A: 30% of total amount paid by T/T for deposit, and 70% of total
amount paid before shipment. Or the L/C payment.
Q: What the delivery time?
A: 30 Days for 1-3Units Order, 45days for 4-20Units Order.
Q: Which seaport you can ship the diesel generator to oversea
country?
A: We can ship the diesel generator from Fuzhou Port, China. And
Fuzhou port is a international seaport in China.
Q: What kind of the trade term you can offer?
A: We can offer with FOB, CNF, CIF or CIP.
Q: Do you have other voltage for optional?
A: Yes, we can customized made from 110V to 690V for client's
optional.
Q: How many kinds of the diesel generator you have for optional?
A: We have open-type, soundproof type, waterproof type and trailer
type diesel generator for optional.
Q: Does your generator have global warranty?
A: Yes. Gensets powered by global brand engine which with the
global warranty service. And the alterntors Stamford, Leroy somer,
Meccalte, Marathon also have the global warranty service.If you use
the Chinese brand diesel engine and alternator, we will undertake
the warranty, and during the warranty period, if there is any
quality problem, we will supply the spare parts to replacement
without charges. and the courier charges by air of spare parts will
be paid by us.
Q: Can you customized made the diesel generator?
A: Yes. Our generators can be customized depending on customers'
detailed requirements. We can supply diesel generators for rental
business, home use, inudstrial projects, army projects, power
station, etc. The diesel generators we supply are suitable for
indoor and outdoor use, lower and high temperature environment.
