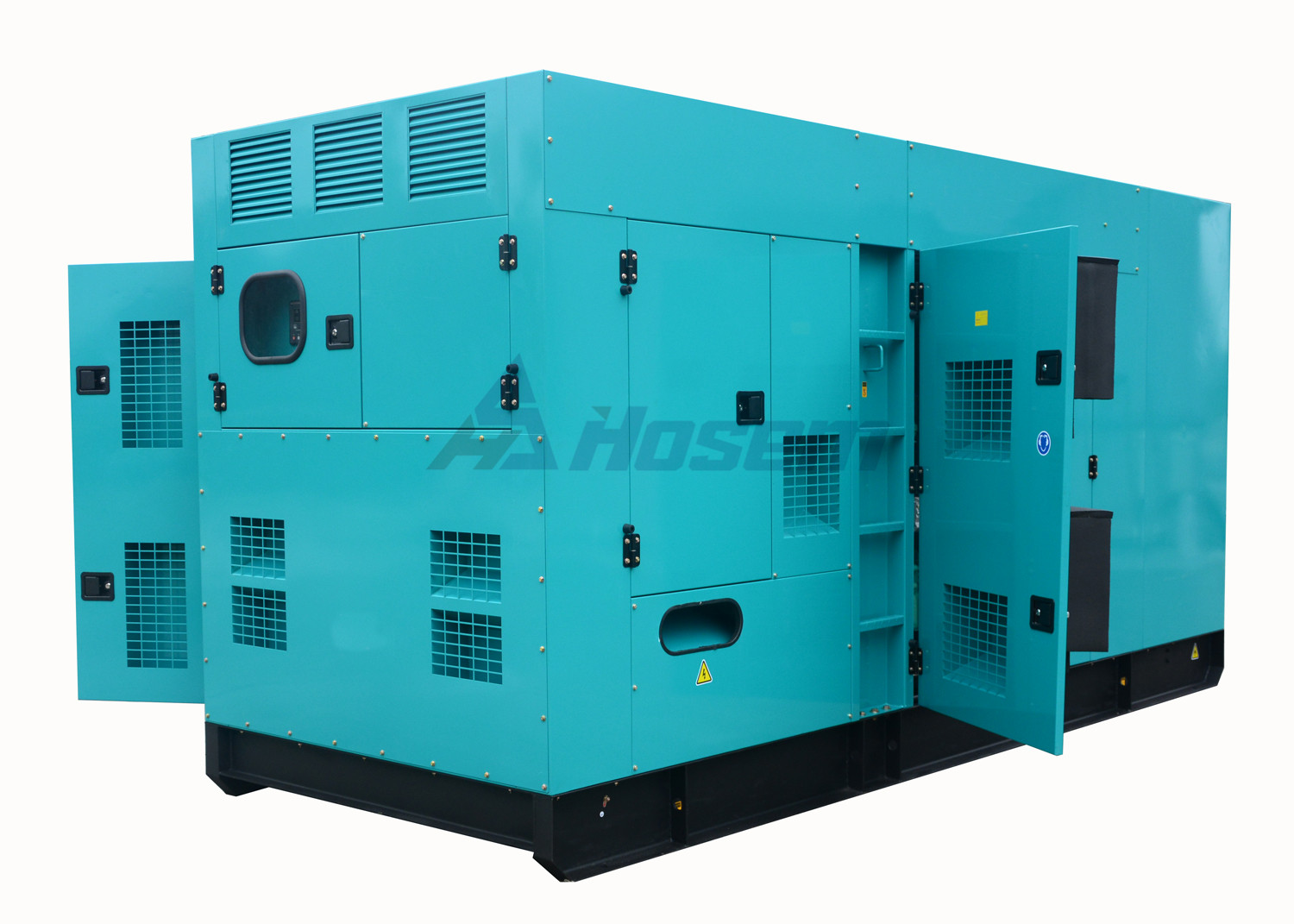

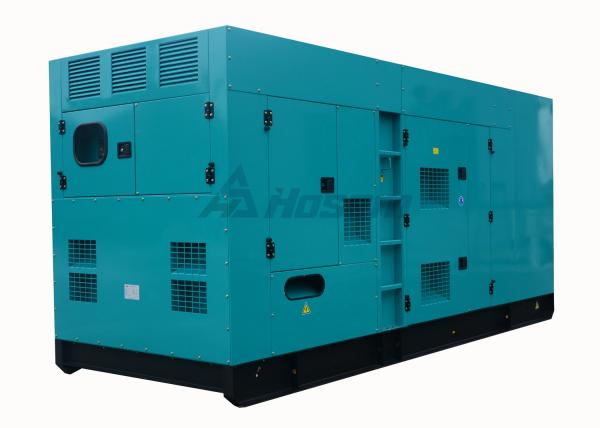

A-C688 500kW Diesel Generator Set Powered by Cummins Diesel Engine KTAA19-G6A for Industrial

Specifically developed for the industrial applications, this stationary soundproof generator set is easy to use and straightforward to maintain. The available features & options are designed to fully meet the requirements of all industrial applications. The generator set will automatically start on mains failure and cool down and stop as soon as the mains come back. The generator set also controls the load transfer between mains (utility) and generator set. It can also be start-up by means of an external signal.

Technical Data for 500kW Diesel Generator Set:

Cummins Diesel Engine:

• KTA19 Series Cummins diesel 4 stroke engine with 6 Cylinders in line, with turbocharger, with direct injection and engine regulation via electronic management.
• Cooling of the sleeves using cooling fluid comprised of water and glycol at 50% in a closed circuit driven by the engine pump.
• Engine driven exhaust fan, radiator and expansion tank; original from the engine manufacturer.
• The circuit is completed with the cooling purge system towards the outside of the bedplate and protections of all running surfaces
• A boiler system with heating element is available as an option.
• An adjustable thermostat is included to maintain the temperature at optimum range and facilitate the starting of the engine.

Specification of Cummins Diesel Engine KTAA19-G6A:

Brushless Alternator:

• Stamford alternator with 4 poles, with a lifetime lasting greased bearing, H class insulation, without brushes, 2/3 coil and AVR (Automatic Voltage Regulator)
• Protection of all the windings by means of 2-part high quality polyester resin impregnation. The stator windings receive a double impregnation.
• Joining of engine and alternator through flexible disc coupling.

Specification of Stamford Alternator:

PROFORMANCE CLASS

Execution class in accordance with ISO 8528/5 (2005) taking into account the behaviour of the generator set in a permanent mode of operation with different load levels, as well as in a temporary mode of operation due to shocks in the load.

FAQ:

Q: What the MOQ?

A: 1 Set

Q: What the payment term?

A: We can accept the T/T or L/C payment.

Q: Do you supply peripheral products of diesel generator?

A: Yes, We can supply the peripheral products, like the ATS, Parallel Panel, Distribution Panel for our diesel generator.

Fuzhou Hosem Power Co., Ltd. is one of the most famous diesel generator manufacturers in China. The Hosem brand generator set output range from 3kVA to 3000kVA with frequency at 50Hz or 60Hz, the voltage of the diesel generator from 110kVA to 690V for client options.

The diesel generator powered by Cummins diesel engine, Deutz diesel engine, Perkins diesel engine, Volvo diesel engine, Fawde diesel engine, Yuchai diesel engine, Ricardo diesel engine and other famous brand diesel engine, Coupled with Stamford alternator, Leroy Somer alternator, Marathon alternator, Mecc Alte alternator and Hosem brand alternator for optional.

Hosem Power uses the most famous brand controller for our diesel generator, include Deepsea brand with model DSE7320, DSE6020 and DSE7420 controller, ComAp brand with model MSR10, AMF25, Nano and IC-NT controller, Smartgen brand with HGM6110, HGM6120, HGM7110, HGM7210 and other models.

Hosem Power can supply the open-type industrial generator, marine generator, natural gas generator, biogas generator, soundproof diesel generator, trailer diesel Generator and Ground Power Unit. The Hosem Power diesel generators are widely used in the Island as the continuing power, hospital, highway, airport, factories and big mall.

We supply one year or 1000 working hours warranty for all of our generator set.
