1000kVA Perkins Generator Set Powered by 4008TAG2A Diesel Engine
for Industrial
Technical Data of 1000kVA Perkins Generator Set:
| Model | A-P1100 |
| Max. Power | kVA | 1100 |
| kW | 880 |
| Rate Power | kVA | 1000 |
| kW | 800 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 1443.4 |
| Fuel Tank Capacity | L | 1000 |
| Dimension For Open-type Genset | mm | 4627 X 2040 X 2500 |
| Weight For Open-type Genset | kg | 7050 |
| Dimension For Soundproof Genset | mm | 6058 X 2438 X 2591 |
| Weight For Soundproof Generator | kg | 9950 |
| Noise Level for Soundproof Generator at 7M | dBA | 80 |
| Battery | Two of 200A Free Maintenance Battery |
Technical Data of Perkins Diesel Engine:
| Engine Manufacturer | Perkins |
| Engine Brand | Perkins |
| Engine Model | 4008-TAG2A |
| No. of Cylinder | 8 Cylinders In line |
| Aspiration | Turbocharged and Air to Air Aftercooled |
| Governor | Electric |
| Engine Max. Output Power | kW | 962 |
| Displacement | L | 22.9 |
| Compression Ratio | 13.6 : 1 |
| Starting Voltage | V | 24 |
| Bore | mm | 160 |
| Stroke | mm | 190 |
| Lubrication Oil Capacity | L | 165.6 |
| Intake Air Flow | M3/Min | 44.4 |
| Fuel Consumption at 100% Load | L/H | 226 |
Stamford alternator for the 1000kVA Perkins Generator Set
Technical Data of Stamford Alternator:
| Alternator Manufacturer | Cummins Generator Technologies |
| Alternator Model | LVI 634 E |
| Alternator Brand | Stamford |
| Rate Output | kVA | 1000 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Phase | 3 Phase |
| Working Temperature without power decrease | ≤40℃ |
| Working Altitude without power decrease | ≤1000m |
| Automatic Voltage Regulation | MX321 |
| Protection Grade | IP23 |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for
optional |
|
Technical Data of Automatic Control Panel:
| Controller Brand | Deepsea |
| Controller Model | DSE7320 |
| Breaker Brand | Delixi |
| Breaker Capacity (A) | 1600 |
| Battery Charger | Smartgen Model BAC06A |
| Emergency Stop Button | Supply |
| Automatic Mains Fail (AMF) | Supply |
| Fuel Level | Supply |
| Automatic Transfer Switch | ATS as optional part |
| The control panel supply the full protection with alarm and
shutdown of the diesel generator include Start-up fault (generator
set shutdown), High coolant temperature (alarm and generator set
shutdown), Low oil pressure (alarm and generator set shutdown), Low
fuel level (alarm), Low cooling fluid level alarm (as optional),
Overload (alarm and generator set shutdown), Battery voltage high
(alarm). |
|
|
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand
controller. |

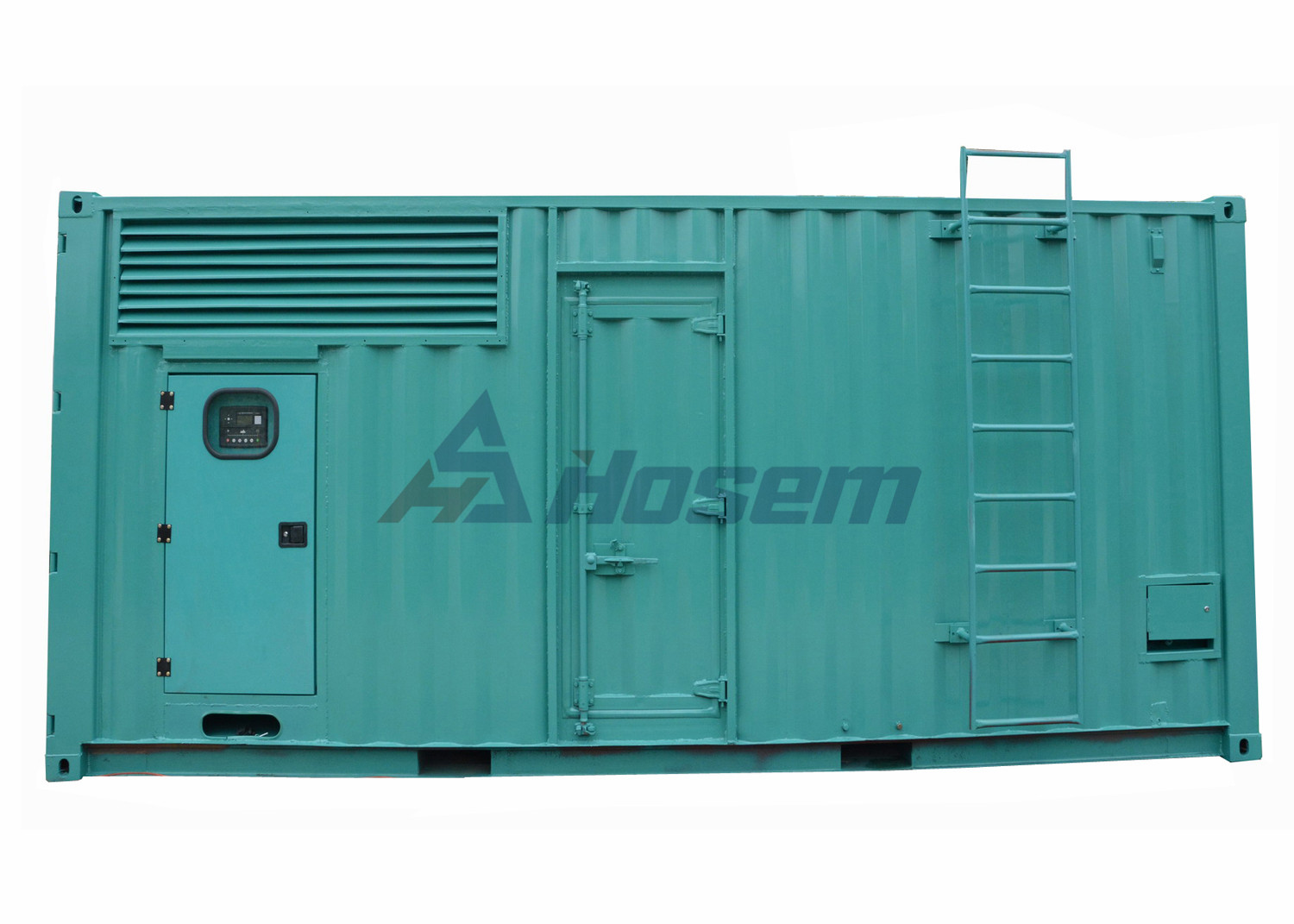

Supply the 1000kVA Perkins Generator Set with Denyo design
soundproof canopy or 20fts container soundproof canopy for
optional.
FAQ:
Q: What the supply range of Perkins Generator Set?
A: The supply range from 10kVA to 2450kVA with 50Hz or 60Hz.
Q: What the MOQ?
A: 1 Set.
Q: What the payment term?
A: 30% of total amount paid by T/T for deposit, and 70% of total
amount paid before shipment. Or the L/C payment.
Q: What the delivery time?
A: 35 Days for 1-3Units Order, 45days for 4-10Units Order.
Q: Which seaport you can ship the diesel generator to oversea
country?
A: We can ship the diesel generator from Fuzhou Port, China. And
Fuzhou port is a international seaport in China.
Q: What kind of the trade term you can offer?
A: We can offer with FOB, CNF, CIF or CIP.
Q: Do you have other voltage for optional?
A: Yes, we can customized made from 110V to 690V for client's
optional.
Q: How many kinds of the diesel generator you have for optional?
A: We have open-type, soundproof type, waterproof type and trailer
type diesel generator for optional.
Q: Does your generator have global warranty?
A: Yes. Gensets powered by global brand engine which with the
global warranty service. And the alterntors Stamford, Leroy somer,
Meccalte, Marathon also have the global warranty service.If you use
the Chinese brand diesel engine and alternator, we will undertake
the warranty, and during the warranty period, if there is any
quality problem, we will supply the spare parts to replacement
without charges. and the courier charges by air of spare parts will
be paid by us.
Q: Can you customized made the diesel generator?
A: Yes. Our generators can be customized depending on customers'
detailed requirements. We can supply diesel generators for rental
business, home use, inudstrial projects, army projects, power
station, etc. The diesel generators we supply are suitable for
indoor and outdoor use, lower and high temperature environment.
