Super Quite Diesel Generator Set Powered by Deutz Engine BF6M1013EC
for Continue Working
The Hosem brand 182kVA super quite diesel generator set is made up
of Deutz engine model BF6M1013EC G2 with rate output 167.8kW at
1500RPM , produced by Deutz (Dalian) Engine Co., Ltd. and Stamford
alternator model UCI 274 G with rate output 182kVA / 145.6kW at
50Hz , produced by Cummins Generator Technologies, which are of
superior performance and can be used as emergency power supply and
commonly used power supply in fields of telecommunications,
highways, skyscrapers, hospitals, airports, armies and factories.
Specification of Super Quite Diesel Generator Set:
| Model | A-DE200 |
| Max. Power | kVA | 200 |
| kW | 160 |
| Rate Power | kVA | 182 |
| kW | 145.6 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 415/240 |
| Rate Current | A | 253A |
| Fuel Tank Capacity | L | 350 |
| Dimension For Open-type Genset | mm | 2350 X 980 X 1573 |
| Weight For Open-type Genset | kg | 1580 |
| Dimension For Soundproof Genset | mm | 3200 X 1080 X 1500 |
| Weight For Soundproof Generator | kg | 2280 |
| Noise Level for Soundproof Generator at 7M | dBA | 75 |
| Battery | Two of 120A Free Maintenance Battery |
Deutz (Dalian) Engine Co., Ltd is invested by Deutz German and
China Faw Group which produce the BF series water cooled , three
cylinders , four cylinders and six cylinders Deutz diesel engine ,
they are for diesel generator set output range from 20kVA to
220kVA.
Specification of Deutz Diesel Engine:
| Engine Manufacturer | Deutz (Dalian) Engine Co., Ltd. |
| Engine Brand | Deutz |
| Engine Model | BF6M1013EC G2 |
| No. of Cylinder | 6 Cylinder in line |
| Aspiration | Turbocharged & Aftercooled |
| Governor | Mechanical |
| Engine Max. Output Power | kW | 167.3 |
| Displacement | L | 7.15 |
| Compression Ratio | 19 : 1 |
| Starting Voltage | V | 24 |
| Bore | mm | 108 |
| Stroke | mm | 130 |
| Lubrication Oil Capacity | L | 20 |
| Fuel Tank Capacity | L | 350L for more than 8 Hours Working |
| Fuel Consumption at 100% Load | L/H | 39.2 |
Design of Super Quite Diesel Generator Set Powered by Deutz Engine
BF6M1013EC

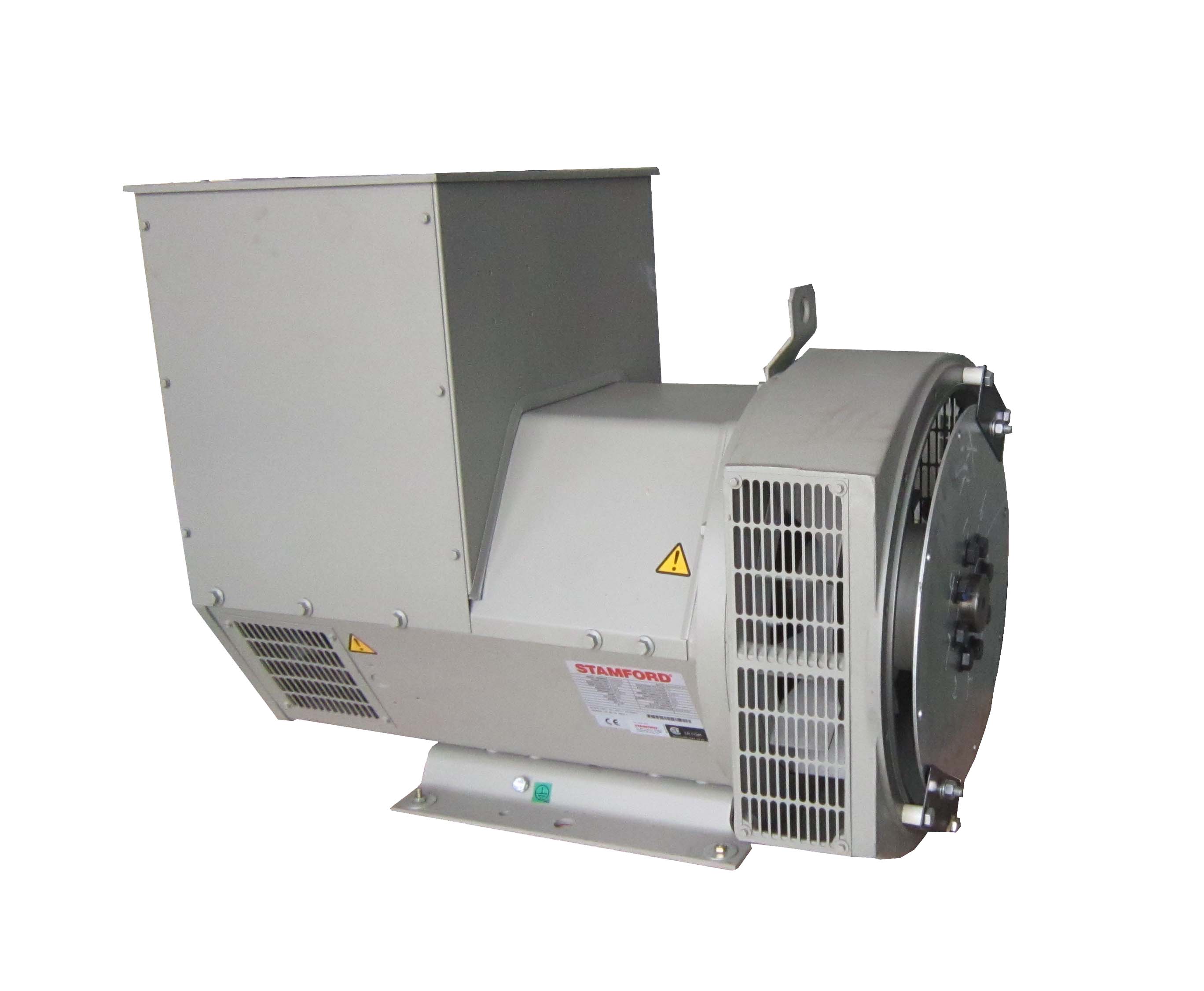

Specification of Stamford Alternator:
| Alternator Manufacturer | Cummins Generator Technologies |
| Alternator Model | UCI 274 G |
| Alternator Brand | Stamford |
| Rate Output | kVA | 182 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Phase | 3 Phase |
| Working Temperature without power decrease | ≤40℃ |
| Working Altitude without power decrease | ≤1000m |
| Automatic Voltage Regulation | AVR SX440 |
| Protection Grade | IP23 |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for
optional |
|
To meet demand of Clients, we can supply the diesel generator with
Leroy Somer, Marathon Mecc Alte and Chinese brand alternators for
your choice.
Specification of Automatic Control Panel:
| Controller Brand | Smartgen |
| Controller Model | HGM6120N |
| Breaker Brand | Delixi |
| Breaker Capacity (A) | 400A MCCB |
| Battery Charger | Smartgen Model BAC06A |
| Emergency Stop Button | Supply |
| Automatic Mains Fail (AMF) | Supply |
| Fuel Level | Supply |
| Automatic Transfer Switch | ATS as optional part |
| The control panel supply the full protection with alarm and
shutdown of the diesel generator include Start-up fault (generator
set shutdown), High coolant temperature (alarm and generator set
shutdown), Low oil pressure (alarm and generator set shutdown), Low
fuel level (alarm), Low cooling fluid level alarm (as optional),
Overload (alarm and generator set shutdown), Battery voltage high
(alarm). |
|
|
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand
controller. |
FAQ:
Q: What the supply range of Deutz Diesel Generator?
A: The supply range from 20kVA to 1650kVA with 50Hz or 60Hz.
Q: What the MOQ?
A: 1 Set.
Q: What the payment term?
A: 30% of total amount paid by T/T for deposit, and 70% of total
amount paid before shipment. Or the L/C payment.
Q: What the delivery time?
A: 20 Days for 1-3Units Order, 35days for 4-20Units Order.
Q: Which seaport you can ship the diesel generator to oversea
country?
A: We can ship the diesel generator from Fuzhou Port, China. And
Fuzhou port is a international seaport in China.
Q: What kind of the trade term you can offer?
A: We can offer with FOB, CNF, CIF or CIP.
Q: Do you have other voltage for optional?
A: Yes, we can customized made from 110V to 690V for client's
optional.
Q: How many kinds of the diesel generator you have for optional?
A: We have open-type, soundproof type, waterproof type and trailer
type diesel generator for optional.
Q: Does your generator have global warranty?
A: Yes. Gensets powered by global brand engine which with the
global warranty service. And the alterntors Stamford, Leroy somer,
Meccalte, Marathon also have the global warranty service.If you use
the Chinese brand diesel engine and alternator, we will undertake
the warranty, and during the warranty period, if there is any
quality problem, we will supply the spare parts to replacement
without charges. and the courier charges by air of spare parts will
be paid by us.
Q: Can you customized made the diesel generator?
A: Yes. Our generators can be customized depending on customers'
detailed requirements. We can supply diesel generators for rental
business, home use, inudstrial projects, army projects, power
station, etc. The diesel generators we supply are suitable for
indoor and outdoor use, lower and high temperature environment.
