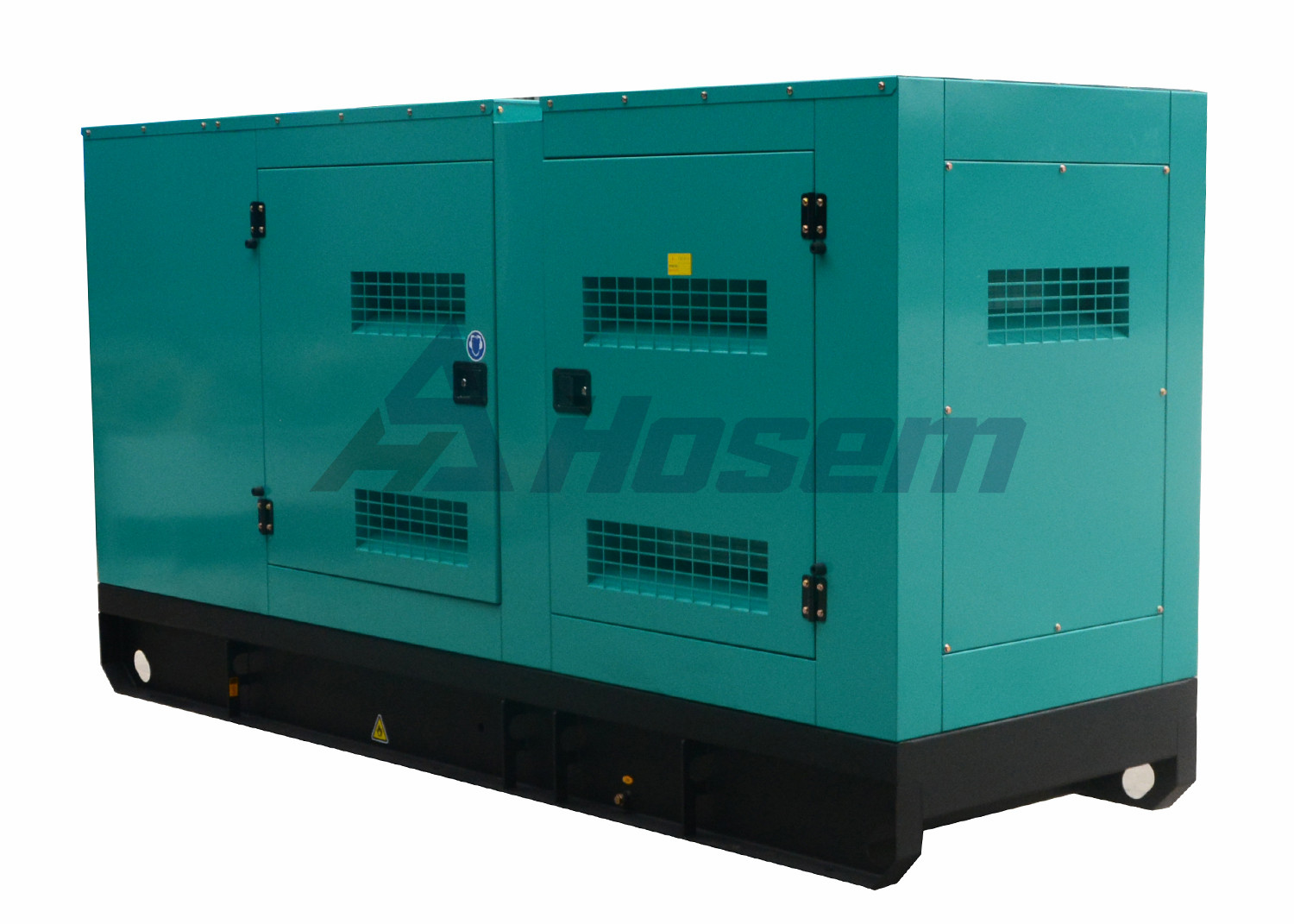

100kVA Perkins Diesel Generator with Engine 1104C-44TAG2 and
Stamford Alternator for Industrial
Hosem Power supply the rated power 100kVA Perkins diesel generator
powered by Perkins diesel engine model 1104C-44TAG2 and Stamford
alternator model UCI 274 C, controlled by Smartgen controller
HGM6120N with AMF function.
THe Perkins diesel engine 1104C-44TAG2 with four stroke, 4
cylinders in line. The industion system with turbocharged, air to
air charge cooled. And the engine prime power with 93.6kWb, standby
power with 103kWb at 1500R.P.M. The Perkins diesel engine with the
ISO/TR14396, ISO3046/1 standard reference conditions.
Emissions capability: Certified against the requirements of EU2007
legislation for non-road mobile machinery, powered by constant
speed engines (EU97/68/EC Stage II).
The Stamford alternator is made by Cummins Generator Technologies,
which is produced under GB755, BS5000 Part 3, VDE0530, NEMA MG1-22,
IEC-34, CSA C22-100 and AS1359. The model UCI 274 C Stamford
alternator with rated output 80kW / 100kVA with 50Hz, 400V, and the
standby power is 88kW / 110kVA at 50Hz. The alternator with
Stamford standard AVR AS460 with +-0.5% votlage regulation, IP23
protection and 12 leads.
Specification of 100kVA Perkins Diesel Generator:
| Generator Set Specification |
| Model | A-P110-II |
| Max. Power | kVA | 110 |
| kW | 88 |
| Rate Power | kVA | 100 |
| kW | 80 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 144.3 |
| Dimension For Open-type Genset | mm | 1860 X 750 X 1200 |
| Weight For Open-type Genset | kg | 1090 |
| Dimension For Soundproof Genset | mm | 2500 X 1080 X 1500 |
| Weight For Soundproof Generator | kg | 1790 |
Specification of Perkins Diesel Engine:
| Engine Manufacturer | Perkins U.K. |
| Engine Brand | Perkins |
| Engine Model | 1104C-44TAG2 |
| No. of Cylinder | 4 Cylinder in line |
| Aspiration | Turbocharged and Air to Air Aftercooled |
| Governor | Electric |
| Engine Max. Output Power | kW | 105 |
| Displacement | L | 4.4 |
| Starting Voltage | V | 12 |
| Bore | mm | 105 |
| Stroke | mm | 127 |
| Lubrication Oil Capacity | L | 7 |
Specification of Stamford Alternator:
| Alternator Manufacturer | Cummins Generator Technologies |
| Alternator Model | UCI 274 C |
| Alternator Brand | Stamford |
| Rate Output | kVA | 100 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000m |
| Insulation | Class H |
| Voltage Regulation | SX460 |
| Protection Grade | IP23 |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for
optional |
|
FAQ For Referance:
Q: Is the engine genuine Perkins brand?
A: Yes, the engine is genuine Perkins made by Perkins factory in
U.K. or China.
Q: Is the alternator genuine Stamford brand?
A: Yes, the alternator is made by Cummins Generator Technologies
with Stamford brand.
Q: What's your minimum order quantity?
A: Hosem Power accept the MOQ with 1 units quantity.
Q: How many times bigger of the starting current for a electric
motor?
A: Usually, starting current of a electric motor will be 3times of
rate power. I.E. If you have a 5kW motor need the diesel generator
to supply the power, then we advise you buy a 15kW or bigger.
