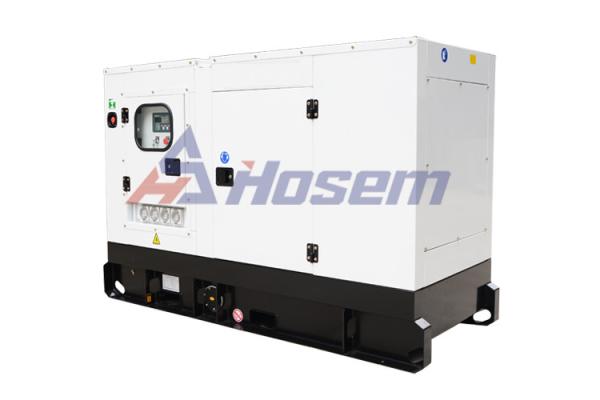

Cummins Generator Set For Australia , Cummins Commercial Generator
, Cummins Residential Generators, 1500rpm Generator
Why Choose Hosem Power Generator?
Reasons1: We are More Professional
Most members of Hosem Power have more than 10 years of experience
in the generator area, Our mechanical engineers, electrical
engineers have more than 20 years of experience in the generator
ara. We are always ready to serve to your needs.
Reasons2: Outstanding Quality
Our advantage lies in:
1. Good shock absorption performance: Optimal design of shock
absorption system based on computer dynamic simulation.
2. Advanced control system: Full monitoring system control strategy
found on reliability design.
3. Low noise: Tailor custom-engineered exhaust silencer system for
each set.
4. Green environmental protection: Diesel generator set combined
energy-saving and low emission in one.
Reasons3: Strictly QC Before EX-Factory.
Each and every unit is strictly factory tested before shipment.
1) Parts faults testing
2) Fuel tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insulation testing
6) Noise testing
7) Loading Testing: 25%, 50%, 75%, 100%, 110% load to check verify
that all control systems, alarm and shut-down protection.
Specification:
| Generator Set Specification |
| Model | A-C33 |
| Max. Power | kVA | 33 |
| kW | 26.4 |
| Rate Power | kVA | 30 |
| kW | 24 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 43.3 |
| Fuel Tank Capacity | L | 86 |
| Dimension For Open-type Genset | mm | 1770 X 830 X 1350 |
| Weight For Open-type Genset | kg | 880 |
| Dimension For Soundproof Genset | mm | 2300 X 900 X 1250 |
| Weight For Soundproof Generator | kg | 1200 |
| Noise Level for Soundproof Generator at 7M | dBA | 72 |
| Battery | Two of 60Amps Free Maintenance Battery |
| Engine Specification |
| Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd. |
| Engine Brand | Cummins |
| Engine Model | 4BT3.9-G1 |
| No. of Cylinder | 4 Cylinder in line |
| Aspiration | Turbocharged |
| Governor | Mechanical |
| Engine Max. Output Power | kW | 39.6 |
| Displacement | L | 3.9 |
| Compression Ratio | 17.3 : 1 |
| Starting Voltage | V | 24 |
| Bore | mm | 102 |
| Stroke | mm | 120 |
| Lubrication Oil Capacity | L | 11 |
| Intake Air Flow | L/S | 43.6 |
| Fuel Consumption at 100% Load | L/H | 9.3 |
| Alternator Specification |
| Alternator Manufacturer | Cummins Generator Technologies |
| Alternator Model | PI 144G |
| Alternator Brand | Stamford |
| Rate Output | kVA | 30 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Automatic Voltage Regulation | SX440 |
| Protection Grade | IP23 |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for
optional |
|
Control Panel
Automatic Start Control Panel
* Compact gen-set controller for gen-sets operating for automatic
start/stop, data measure and alarming.
* Battery Charger(to be supplied by mains into the 208-240V range)
* On/Off button
* Emergency stop button
Basic components of this Genset
* Diesel engine with 3 filters and other accessories
* AC synchronous generator
* Water tank & radiator assembly
* The cooling fan and fan guard
* Heavy-duty steel channel base frame
* Genset control system
* Genset circuit breaker
* 24V DC starting motor and charging alternator
* Vibration-damping supports between engine/alternator and the base
frame
* Base fuel tank for 8 hours operation
FAQ
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100%
irrevocable L/C at sight.
Q: What is your lead time?
A: About 20-30 days after receiving advance deposit or original
L/C.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificates for
different countries such as SONCAP for Nigeria, COI for Iran, SASO
for Saudi Arabia, etc.
Q: What warranty do you provide?
A: One year, during the guarantee period, we will supply free of the easily damaged parts for the possible problems except for
the incorrect operation. After expiration, we supply cost spare parts for Genset maintenance.
