Cummins Home Generator, Cummins Silent Generator, Cummins 300kw
Generator, Cummins Dg Set, Cummins Diesel Engine Gen
Hosem Power Cummins Series Genset's Advantage
1. Outstanding shock absorption performance: Optimal design of
shock absorption system based on computer dynamic simulation.
2. Advanced control system: Full monitoring system control strategy
found on reliability design.
3. Green environmental protection: Diesel generator set combined
energy-saving and low emission in one.
4. Low noise: Tailor custom-engineered exhaust silencer system for
each set.
5. Excellent performance: stable operation, low vibration, low fuel
and oil consumption, long operating life, and overhaul time.
Specification:
| Generator Set Specification |
| Model | A-C375H |
| Max. Power | kVA | 375 |
| kW | 300 |
| Rate Power | kVA | 343 |
| kW | 274 |
| Frequency | Hz | 60 |
| Rate Voltage | V | 220/127 |
| Rate Current | A | 898.9 |
| Dimension For Open-type Genset | mm | 3300 X 970 X 1650 |
| Weight For Open-type Genset | kg | 4250 X 1550 X2180 |
| Dimension For Soundproof Genset | mm | 80 |
| Weight For Soundproof Generator | kg | 3200 |
| Engine Specification |
| Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd. |
| Engine Brand | Cummins |
| Engine Model | 6ZTAA13-G3 |
| No. of Cylinder | 6 Cylinder in line |
| Aspiration | | Turbocarged and Air to Air Aftercooed |
| Governor | Electric |
| Engine Max. Output Power | kW | 380 |
| Displacement | L | 13.0 |
| Starting Voltage | V | 24 |
| Bore | mm | 130 |
| Stroke | mm | 163 |
| Lubrication Oil Capacity | L | 45 |
Various brands of alternator for options
Brand: Stamford / Leroy somer / Marathon/ Mecc Alte/ Hosem
Self-ventilated and drip-proof construction
Synchronous, Brush-less, Self Exciting, Self Regulating
Direct Coupled With Flex Disk
12 Leads winding
Class H Insulation
Drip-Proof Construction

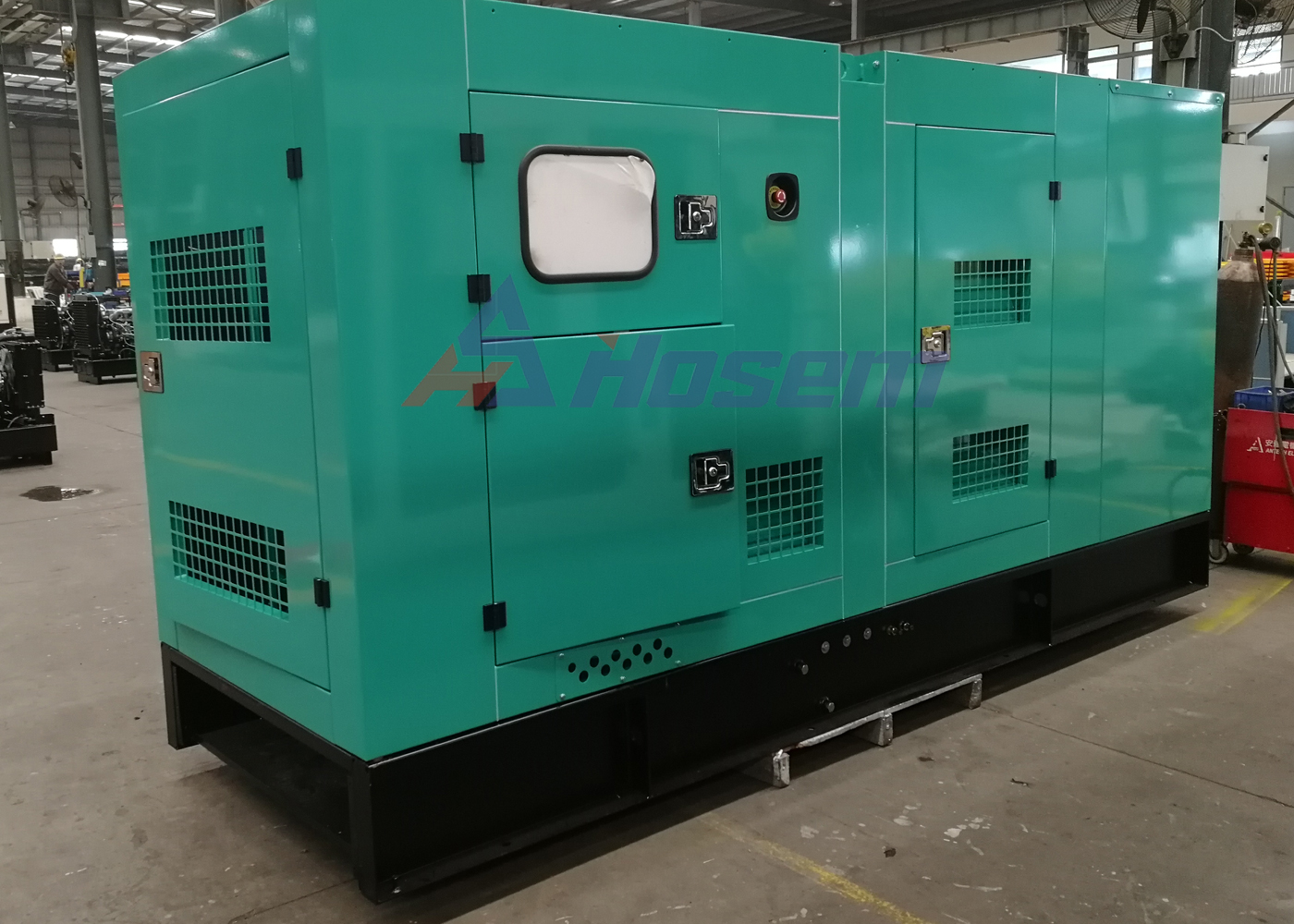

Canopy(for silent units)
Heavy duty lockable handles in each door
Large doors for easy access for service and monitoring
Coolant refilling specific hatch
Sound foam
Modular bolted assembly after painting.
Powder coating paint for outdoor usage.
Weatherproof sealed joints.
Cut using high precision numeric control technology.
Bent using high precision numeric control technology.
Glazed acoustic sealed control panel door.
Fuel filter outside enclosure.
In base oil and coolant drains.
Control Panel
Deepsea/ ComAp/ Smartgen Control System
Automatic Start Control Panel
* Compact gen-set controller for gensets operating for automatic
start/stop, data measure and alarming.
* Battery Charger(to be supplied by mains into the 208-240V range)
* On/Off button
* Emergency stop buttion
Line number auxiliary operation
FAQ
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy Or 100%
irrevocable L/C at sight.
Q: What is your lead time?
A: About 20-30 days after receiving advance deposit or original
L/C.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for
different country such as SONCAP for Nigeria, COI for Iran, SASO
for Saudi Arabia, etc.
Q: What warranty do you provide?
A: One year, during the guarantee period, we will supply freely of the easy damaged parts for the possible problems except for the
incorrect operation. After expiration, we supply cost spare parts for genset maintenance.
