KTA19-G3 60Hz 400kW Cummins Generator Set

Ask Lasest Price
Brand Name :	Hosem Power
Certification :	CE/ISO9001
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	500 unit per month
Delivery Time :	30 days

Add to Cart

Product Details
Company Profile

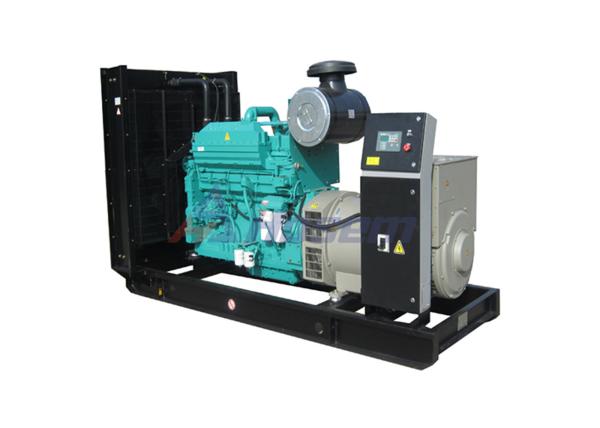

KTA19-G3 60Hz 400kW Cummins Generator Set

Cummins 400 Kw Diesel Generator , Cummins Power Generation , Open Generator Sets

Specification of Cummins Diesel Generator

Model		A-C563H
Standby Power	kVA	563
Standby Power	kW	450
Prime Power	kVA	513
Prime Power	kW	410
Frequency	Hz	60
Output Voltage	V	240
Oil Consumption	L/H	0.352157015
Dimension For Open-type	mm	3475 X 1250 X 1920
Weight For Open-type	kg	3650

Engine Data

Engine Model		KTA19-G3
No.of Cylinder		6 Cylinder in line
Bore	mm	159
Stroke	mm	159
Displacement	L	18.9
Cooling Fan Air Flow	m³/min	588
Compress Air Flow	m³/min	34.7
Exhaust Gas Flow	m³/min	96.2
Exhaust Gas Temperature	℃	557
Lubrication Oil Capacity	L	50
Cooling Water Capacity	L	91
Starting Voltage	V	24
Engine Max.Output Power	kW	511

Alternator Data

Alternator Model		HCI 444 F
Alternator Brand		Stamford
Rate Output	kVA	594
Frequency	Hz	60
Altitude	M	≤1000
Insulation		Class H
Protection Grade		IP23
Alternator for choice	We also have Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator for your choice.

Basic components of Cummins Genset

* Diesel engine with 3 filters and other accessories

* AC synchronous generator

* Water tank & radiator assembly

* The cooling fan and fan guard

* Heavy duty steel channel base frame

* Genset control system

* Genset circuit breaker

* 24V DC starting motor and charging alternator

* Vibration-damping supports between engine/alternator and the base frame

* Base fuel tank

FAQ For Your Reference:
Q: What is your MOQ of this item?
A: 1 Set
Q: What is your payment terms?
A: Price is based on FCL sale: T/T, L/C, D/P, O/A
Q: What is the lead time?
A: 25-30 workings days
Q: Where is your port of loading?
A: Fuzhou, China.
Q: Can I use my own brand name?
A: Yes, OEM and ODM are both supported.
Q: Your annual production capactiy?

Water-Cooled Genset	3,000 units
Air-Cooled Genset	100,000 units
GPU	500 units

Q: Available colors?
A: White, Blue, Red, Green, Yellow, Gray
Q: Which markets have you exported before?
A: Southeast Asia, the Middle East, Africa, Europe, North and South America, Oceania.
Q: Any certifications for your gensets?
A: ISO9001-2008, ISO14001-2004, CE, SASO, SONCAP, RETIE, etc.
Q: How is your packaging?
A: Stretching film as standard, plywood crate is optional
Q: The valid period of the offer?
A: 30 DAYS
