Cummins Industrial Generator 60kW with 4BTA3.9-G11 Engine and
Brushless Alternator for Building
Supply 60kW / 75kVA Cummins industrial generator powered by Cummins
diesel engine model 4BTA3.9-G11 and Hosem brushless alternator
model ASF224GS. The 60kW Cummins industrial generator use the
Smartgen brand controller model HGM6120N with automatic start and
stop.
Supply Scope of Cummins industrial generator:
1. Cummins diesel engine model 4BTA3.9-G11 standby power 77KW at
1500r/min.
2. Hosem brushless alternator model ASF224GS rated output at 75KVA
/ 60kW at 50Hz.
3. Control panel with Smartgen HGM6120N controller with automatic
start and stop.
4. Water cooling system with Cummins original radiator and fan.
5. Base frame with fuel tank capacity at 125Litres for continues
running for more than 8hours at 100% load.
6. Heavy-duty 3 pole circuit breaker with capacity at 125A for 60kW
Cummins industrial generator.
7. Soundproof and waterproof canopy with the noise level at 70dBA
at 7 meters for optional.
8. Dampers for anti-vibration for diesel engine and alternator.
9. Two of D.C. 12V 80Ah free maintenance for starting the diesel
engine.
10. Complete set of documents included diesel engine manual,
alternator manual, control panel manual, and diesel generator
manual.
Specification of the 60kW Cummins indistrial generator:
| Model | A-C83 |
| Max. Power | kVA | 83 |
| kW | 66 |
| Rate Power | kVA | 75 |
| kW | 60 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 108.3 |
| Fuel Tank Capacity | L | 120 |
| Dimension For Open-type Genset | mm | 1820 X 750 X 1050 |
| Weight For Open-type Genset | kg | 1050 |
| Dimension For Soundproof Genset | mm | 2450 X 900 X 1250 |
| Weight For Soundproof Generator | kg | 1360 |
| Noise Level for Soundproof Generator at 7M | dBA | 72 |
| Battery | Two of 80Amps Free Maintenance Battery |
Specification of Cummins 4BTA3.9-G11 Diesel Engine:
| Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd. |
| Engine Brand | Cummins |
| Engine Model | 4BTA3.9-G11 |
| No. of Cylinder | 4 Cylinder in line |
| Aspiration | Turbocharged & Aftercooled |
| Governor | Electric |
| Engine Max. Output Power | kW | 77 |
| Displacement | L | 3.9 |
| Compression Ratio | 17.3 : 1 |
| Starting Voltage | V | 24 |
| Bore | mm | 102 |
| Stroke | mm | 120 |
| Lubrication Oil Capacity | L | 11 |
| Intake Air Flow | L/S | 64 |
| Fuel Consumption at 100% Load | L/H | 17.6 |
Specification of Hosem Brushless Alternator Model ASF224GS:
| Alternator Manufacturer | Fuzhou Hosem Power Co., Ltd. |
| Alternator Model | ASF 224 GS |
| Alternator Brand | Hosem |
| Rate Output | kVA | 75 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Automatic Voltage Regulation | SX440 |
| Protection Grade | IP23 |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for
optional |
|

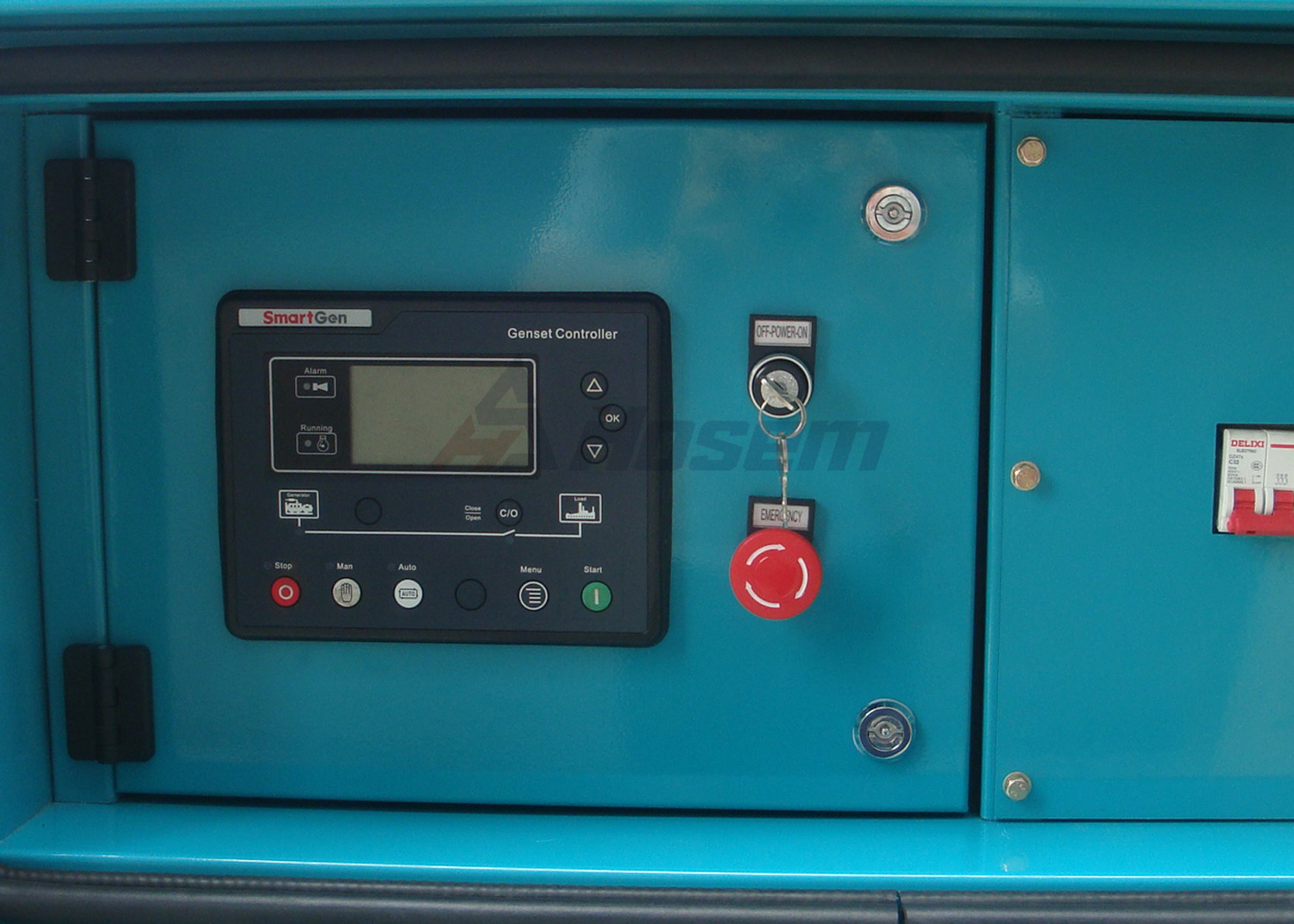

Specification of Control Panel:
| Control Panel Model | AF500 |
| Controller | Smartgen Brand Model HGM6120N |
| Function of control panel | Automatic genset start/stop |
| Automatic battery charger |
| Emergency stop |
| AMF (Automatic Mains Fault) |
| Remote control |
| Micro-processor based design |
| LED alarm indication and Sound alarm |
| Display of the controller | Generator voltage: Uab, Ubc, Uca |
| Generator current: Ua, Ub, Uc |
| Generator temp.: ℃/℉ both display |
| Generator frequency: Hz |
| Generator power: kW, kVA, kWh, kVAr, kVArh, kVAh |
| Generator starts count: 999999 times (Max) |
| Generator pressure: kPa/Psi/Bar both display |
| Charging Voltage: V |
| Battery Voltage: V DC |
| Protection of Diesel Generator | Over / Under Speed Alarm and Shutdown |
| Start / Stop Failure Alarm |
| Over Current Alarm and Shutdown |
| Under / Over Generator Voltage Alarm and Shutdown |
| Low Oil Pressure Alarm and Shutdown |
| High Engine Temperature Alarm and Shutdown |
| Over Load Alarm and Shutdown |
| Low and High Battery Voltage Alarm |
| Lose of Speed Signal Alarm and Shutdown |
| Charge Fail Alarm |
FAQ:
Q: What the Cummins engine manufacturer?
A: The Cummins engine is made by Dongfeng Cummins Engine Co., Ltd.
It is a factory which Cummins USA invested in China.
Q: What the voltage regulation of alternator?
A: The voltage regulation is automatic type by AVR model SX440.
Q: Does the control panel have the monitor of mains voltage for ATS
working?
A: Yes, the control panel with AMF fuction for monitor the mains,
if the mains under / over voltage, it will control the diesel
generator starting and supply the power to ATS, and ATS transfer to
genset to supply the power to load.
Q: If the design and color of the soundproof canopy can be
customized made?
A: Yes, Hosem Power supply customzied painting of the color, client
can give the color code for confirm the color. And Hosem Power have
a professional engineer team for design the soundproof canopy, we
can customzied made the sounbdproof canopy depend on users'
requested.
