1000kVA Cummins Generator Set Dirved by KTA38-G5 Diesel Engine For
Industrial
The 1000kVA diesel generator set powered by Cummins diesel engine
model KTA38-G5. It is an industrial diesel generator set with
outdoor type or indoor type for optional. Whether you require
continuous duty, stationary standby power or prime power, this
generator set offers the versatility and reliability we have come
to expect from Cummins - which is a company have mroe than 100years
experience of produce the diesel engine to brings commitment to
performance.
Specification of 1000kVA Cummins Diesel Generator:
| Model | A-C1100 |
| Max. Power | kVA | 1100 |
| kW | 880 |
| Rate Power | kVA | 1000 |
| kW | 800 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 1443.4 |
| Fuel Tank Capacity | L | 900 |
| Dimension For Open-type Genset | mm | 4243 X 1820 X 2500 |
| Weight For Open-type Genset | kg | 8120 |
| Dimension For Soundproof Genset | mm | 6058 X 2438 X 2591 |
| Weight For Soundproof Generator | kg | 10270 |
| Noise Level for Soundproof Generator | dBA | 80dBA |
| Battery | Four of 150Amps Free Maintenance Battery |
Rated for continuous use, for unlimited hours, this diesel
generator is rugged, reliable, quick to respond to load changes and
classified as low emission. With the simple to use, easily
programmable automatic control panel with Deepsea DSE7320
controller to bring the fully protection of diesel engine and
alternator.
Specification of Cummins Diesel Engine:
| Engine Manufacturer | Chongqing Cummins Engine Co., Ltd. |
| Engine Brand | Cummins |
| Engine Model | KTA38-G5 |
| No. of Cylinder | 12 Cylinder V Type |
| Aspiration | Turbocharged & Aftercooled |
| Governor | Electric |
| Engine Max. Output Power | kW | 970 |
| Displacement | L | 37.8 |
| Compression Ratio | 13.9 : 1 |
| Starting Voltage | V | 24 |
| Bore | mm | 159 |
| Stroke | mm | 159 |
| Lubrication Oil Capacity | L | 135 |
| Intake Air Flow | M3/Min | 72.8 |
| Fuel Consumption at 100% Load | L/H | 209 |

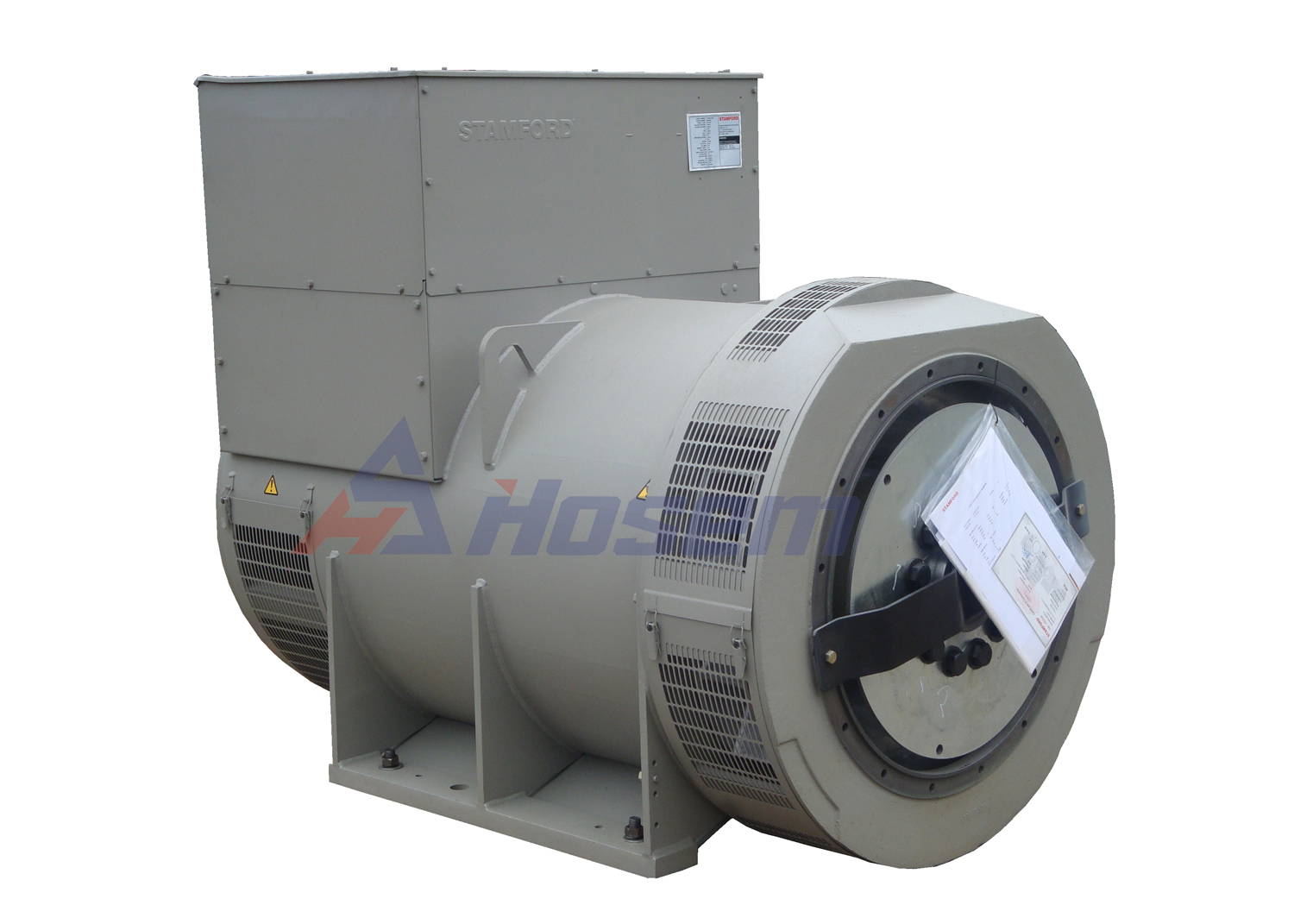

The 1000kVA Cummins Generator couple with Stamford alternator,
which is made by Cummins Generator Technologies. The alternator
with model LVI 634 E, rate output 1000kVA / 800kW at 50Hz, 400V. It
has the features with free maintenance, protection with IP23,
insulation with calss H, PMG, MX321 AVR, the voltage adjust rate
with +-0.5%.
Specification of Stamford Alternator:
| Alternator Manufacturer | Cummins Generator Technologies |
| Alternator Model | LVI 634 E |
| Alternator Brand | Stamford |
| Rate Output | kVA | 1000 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Phase | 3 Phase |
| Working Temperature without power decrease | ≤40℃ |
| Working Altitude without power decrease | ≤1000m |
| Automatic Voltage Regulation | MX321 |
| Protection Grade | IP23 |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for
optional |
|
The 1000kVA Cummins generator with automatic control panel, use the
Delixi brand air circuit breaker with 1600A for power output and
Deepsea DSE7320 controller for control the diesel generator
automatic start / stop. Supply the fully protection of the diesel
engine alternator, such as high temperature, low oil pressure,
overload, over / under speed, etc. You can rest assured to use the
diesel generator.
Specification of Control Panel:
| Controller Brand | Deepsea |
| Controller Model | DSE7320 |
| Breaker Brand | Delixi |
| Breaker Capacity (A) | 1600 |
| Battery Charger | Smartgen Model BAC06A |
| Emergency Stop Button | Supply |
| Automatic Mains Fail (AMF) | Supply |
| Fuel Level | Supply |
| Automatic Transfer Switch | ATS as optional part |
| The control panel supply the full protection with alarm and
shutdown of the diesel generator include Start-up fault (generator
set shutdown), High coolant temperature (alarm and generator set
shutdown), Low oil pressure (alarm and generator set shutdown), Low
fuel level (alarm), Low cooling fluid level alarm (as optional),
Overload (alarm and generator set shutdown), Battery voltage high
(alarm). |
|
|
|
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand
controller. |
Need more information on any of our extensive catalogue of diesel
generators - from Cummins, Deutz, Perkins, Doosan, SDEC - or about
any other products or services? Have a few questions about
available warranties, deployment types or functionality? Just need
general assistance? Our experts are available by email, phone and
online, so don’t hesitate to contact us today!
FAQ:
Q: What the supply range of Cummins Diesel Generator?
A: The supply range from 20kVA to 1875kVA with 50Hz or 60Hz.
Q: What the MOQ?
A: 1 Set.
Q: Do the Cummins diesel engine and Stamford alternator with
international warranty?
A: Yes, the Cummins diesel engine under the Cummins aftersale
warrnaty, and the Stamford alternator under the Stamford company
aftersale services in the world.
Q: What the payment term?
A: 30% of total amount paid by T/T for deposit, and 70% of total
amount paid before shipment. Or the L/C payment.
Q: What the delivery time?
A: 20 Days for 1-3Units Order, 35days for 4-20Units Order.
Q: Which seaport you can ship the diesel generator to oversea
country?
A: We can ship the diesel generator from Fuzhou Port, China. And
Fuzhou port is a international seaport in China.
Q: What kind of the trade term you can offer?
A: We can offer with FOB, CNF, CIF or CIP.
Q: Do you have other voltage for optional?
A: Yes, we can customized made from 110V to 690V for client's
optional.
Q: How many kinds of the diesel generator you have for optional?
A: We have open-type, soundproof type, waterproof type and trailer
type diesel generator for optional.
Q: Can you customized made the diesel generator?
A: Yes. Our generators can be customized depending on customers'
detailed requirements. We can supply diesel generators for rental
business, home use, inudstrial projects, army projects, power
station, etc. The diesel generators we supply are suitable for
indoor and outdoor use, lower and high temperature environment.
