150kVA Cummins Generator Set with 6BTAA5.9-G12 Diesel Engine and
Stamford Alternator for Factory
150kVA diesel generator with Cummins diesel engine model
6BTAA5.9-G12 and Stamford alternator model UCI 274 F prime output
at 150kVA, standby output 165kVA.
Datasheet of 150kVA Cummins Generator Set:
| Model | A-C165 |
| Max. Power | kVA | 165 |
| kW | 132 |
| Rate Power | kVA | 150 |
| kW | 120 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 216.5 |
| Fuel Tank Capacity | L | 250 |
| Dimension For Open-type Genset | mm | 2300 X 820 X 1450 |
| Weight For Open-type Genset | kg | 1400 |
| Dimension For Soundproof Genset | mm | 3200 X 1080 X 1500 |
| Weight For Soundproof Generator | kg | 1920 |
| Noise Level for Soundproof Generator at 7M | dBA | 75 |
| Battery | Two of 100Amps Free Maintenance Battery |
The Cummins diesel engine is produced by Dongfeng Cummins Engine
Co., Ltd. which is invested by USA Cummins in China. They special
produce the B series, C series, L sereis, 6ZTAA series and QSZ
series Cummins diesel engine for diesel generator rate output from
20kVA to 500kVA.
Datasheet of Cummins Diesel Engine:
| Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd. |
| Engine Brand | Cummins |
| Engine Model | 6BTAA5.9-G12 |
| No. of Cylinder | 6 Cylinder in line |
| Aspiration | Turbocharged and Air to Air Aftercooled |
| Governor | Electric |
| Engine Max. Output Power | kW | 154 |
| Displacement | L | 5.9 |
| Compression Ratio | 17.3 : 1 |
| Starting Voltage | V | 24 |
| Bore | mm | 102 |
| Stroke | mm | 120 |
| Lubrication Oil Capacity | L | 16.4 |
| Intake Air Flow | L/S | 137 |
| Fuel Consumption at 100% Load | L/H | 34 |

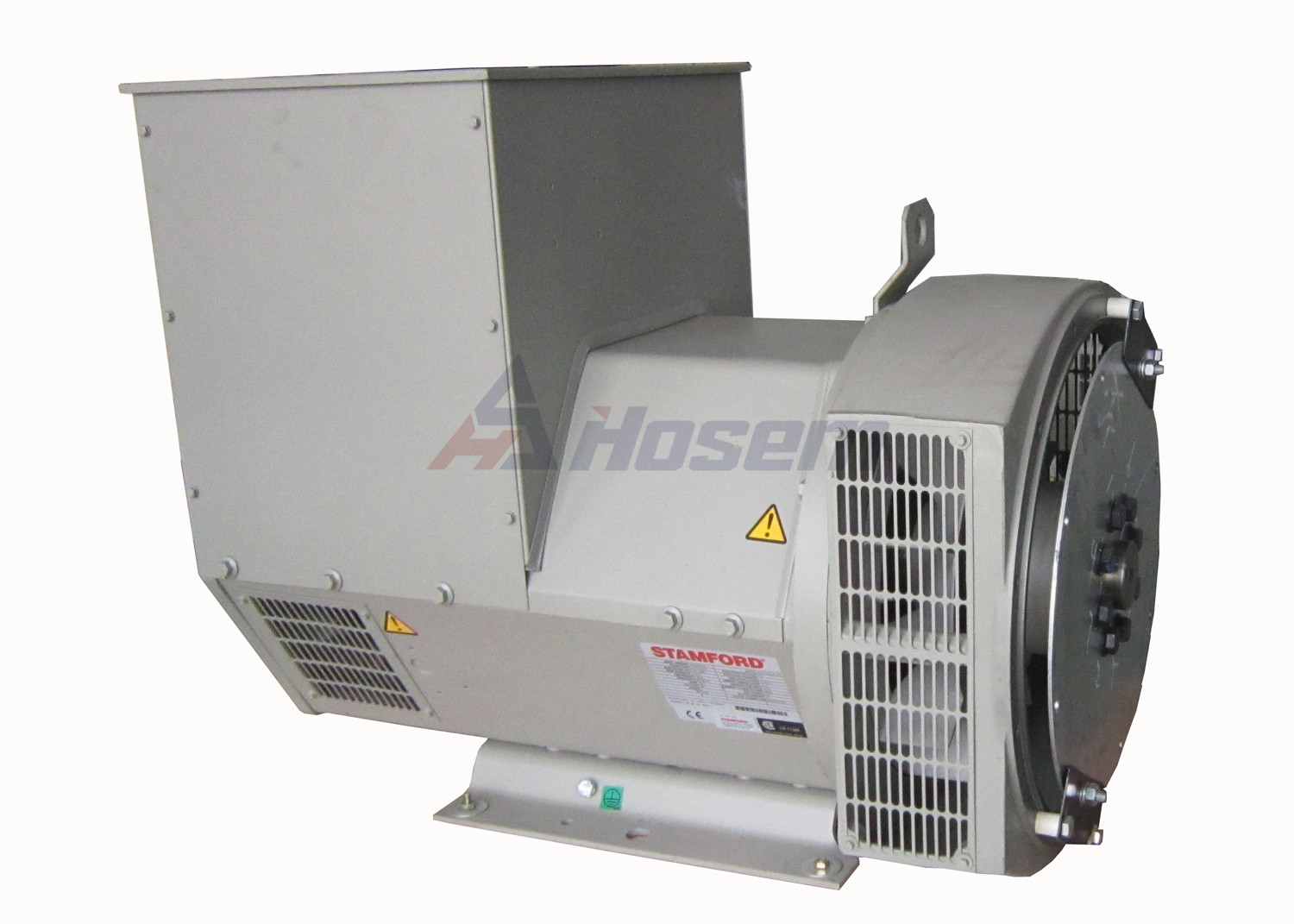

The Stamford alternator is produced by Cummins Generator
Technologies in China. with UCI274 series alternator, which is one
of the best quality and most famous brand alternator in the world.
Datasheet of Stamford Alternator:
| Alternator Manufacturer | Cummins Generator Technologies |
| Alternator Model | UCI 274 F |
| Alternator Brand | Stamford |
| Rate Output | kVA | 160 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Automatic Voltage Regulation | SX440 |
| Protection Grade | IP23 |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for
optional |
|
The 150kVA Cummins diesel generator with Deepsea brand model
DSE6020 controller with AMF function. It has the complete
protection of the diesel generator, such as over/under speed,
overload, over/under voltage, high water temperature, low oil
pressure etc. And it will monitor the mains power for control the
150kVA Cummins diesel generator automatic start and stop. We also
have the Deepsea brand and ComAp brand controller for users'
optional.
Supply Cummins generator set output from 20kVA to 1875kVA, it can
meet most of the electric demand in each place like the factories,
highway, school, hospital, mall and other places.
All the supplied diesel generator under the ISO9001-2015
certificate, CE certificate and produce under ISO8528 standard.
Open-type diesel generator, silent diesel generator and trailer
diesel generator for clients' optional.
