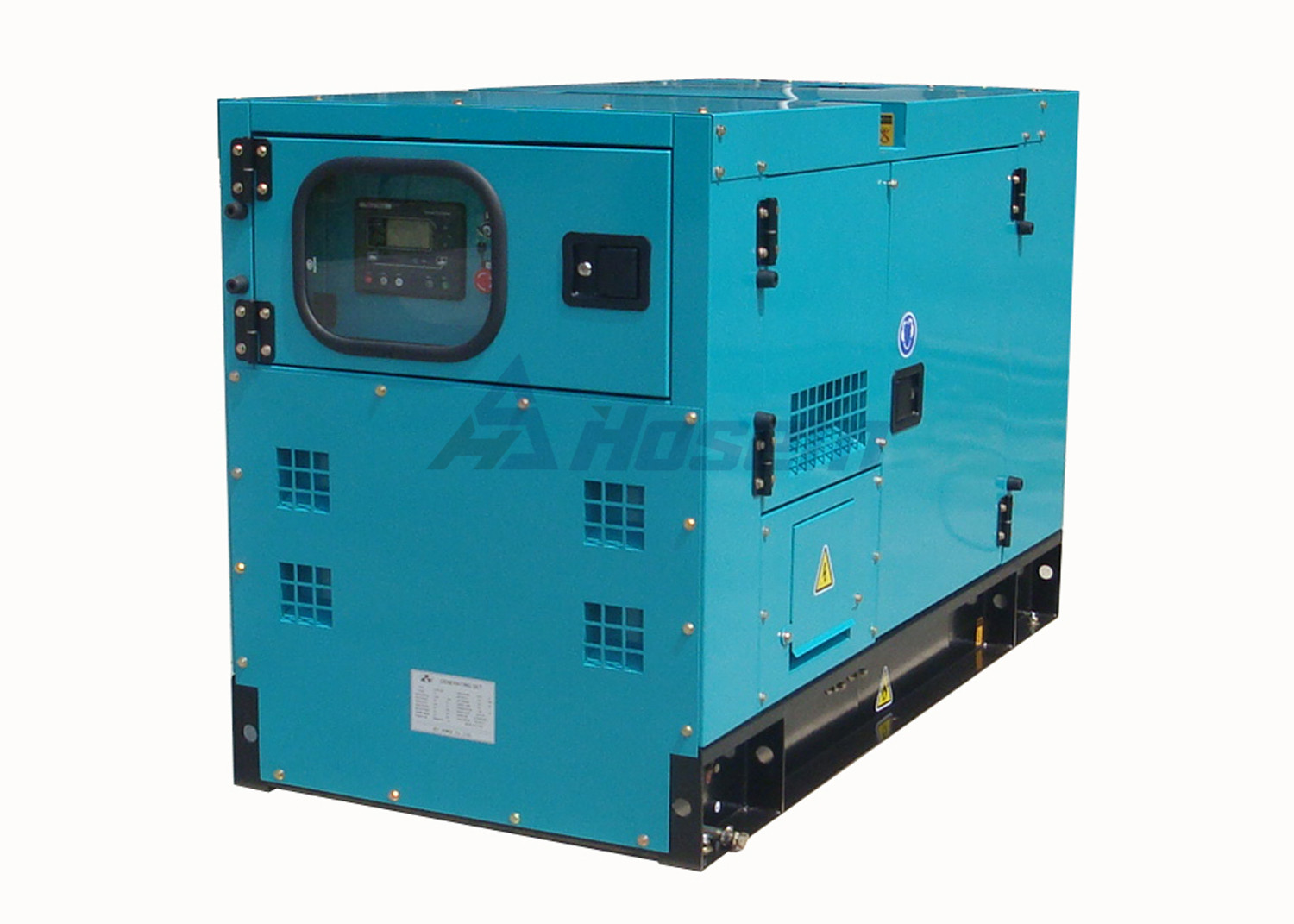

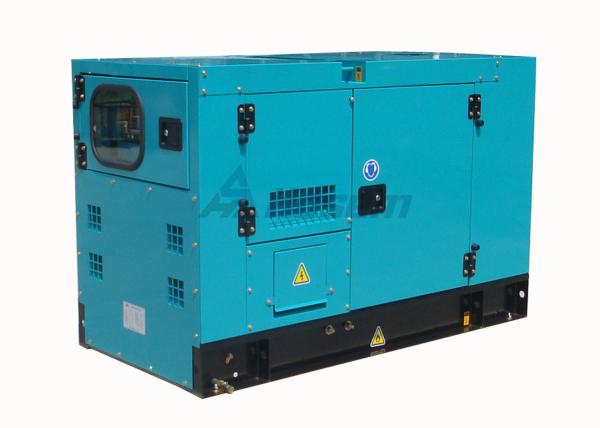

20kW Cummins Diesel Generator Set with 4B3.9-G2 and Brushless Alternator for House

Fuzhou Hosem Power Co., Ltd. supply 20kW / 25kVA diesel generator powered by Cummins brand diesel engine, which is made by Dongfeng Cummins Engine Co.,Ltd. The supply range of 20kW Cummins diesel generator set as follows:
1. Standby Output of Cummins Diesel Generator Set: 28kVA / 22kW at 50Hz
2. Prime Output of Cummins Diesel Generator: 25kVA / 20kW at 50Hz
3. Voltage: 400 / 230V (Optional voltage from A.C. 110A to 690V)
4. Rate Current: 36A
5. Cummins Diesel Engine Model 4B3.9-G2 Max. Output 27kW at 1500R.P.M.
6. Hosem Brushless Alternator Model ASF 184 FS
7. Automatic Control Panel with Smartgen Controller Model HGM6110N
8. 63A Breaker for 20kW Cummins Diesel Generator
9. Base Frame Tank with Capacity at 100Litres for diesel generator continue run for more than 12hours at 100% load.
10. Cummins Original Cooling System with Radiator
11. Denyo Design Soundproof Canopy with Noise Level at 70dBA.
12. Two of Free Maintanance Battery Capacity at 60A.
13. Domestic Muffler for reduce the noice of diesel generator.
14. Each Two Dampers for Diesel Engine and Alternator
15. Emergency Stop Button
16. Supply fully protection of the diesel generator, such as Overload, Under / Over Frequency, Unver / Over Voltage, High Coolant Temperature, Low Oil Pressure, Over/Under Speed, etc.

Specification of the 20kW Cummins Diesel Generator Set:

Specification of the Cummins Diesel Engine:

Specification of Brushless Alternator:

Fuzhou Hosem Power Co., Ltd. is one of the most famous diesel generator manufacturers in China. The Hosem brand generator set output range from 3kVA to 3000kVA with frequency at 50Hz or 60Hz, the voltage of the diesel generator from 110kVA to 690V for client options.

The diesel generator powered by Cummins diesel engine, Deutz diesel engine, Perkins diesel engine, Volvo diesel engine, Fawde diesel engine, Yuchai diesel engine, Ricardo diesel engine and other famous brand diesel engine, Coupled with Stamford alternator, Leroy Somer alternator, Marathon alternator, Mecc Alte alternator and Hosem brand alternator for optional.

Hosem Power uses the most famous brand controller for our diesel generator, include Deepsea brand with model DSE7320, DSE6020 and DSE7420 controller, ComAp brand with model MSR10, AMF25, Nano and IC-NT controller, Smartgen brand with HGM6110, HGM6120, HGM7110, HGM7210 and other models.

Hosem Power can supply the open-type industrial generator, marine generator, natural gas generator, biogas generator, soundproof diesel generator, trailer diesel Generator and Ground Power Unit. The Hosem Power diesel generators are widely used in the Island as the continuing power, hospital, highway, airport, factories and big mall.

We supply one year or 1000 working hours warranty for all of our generator set.
