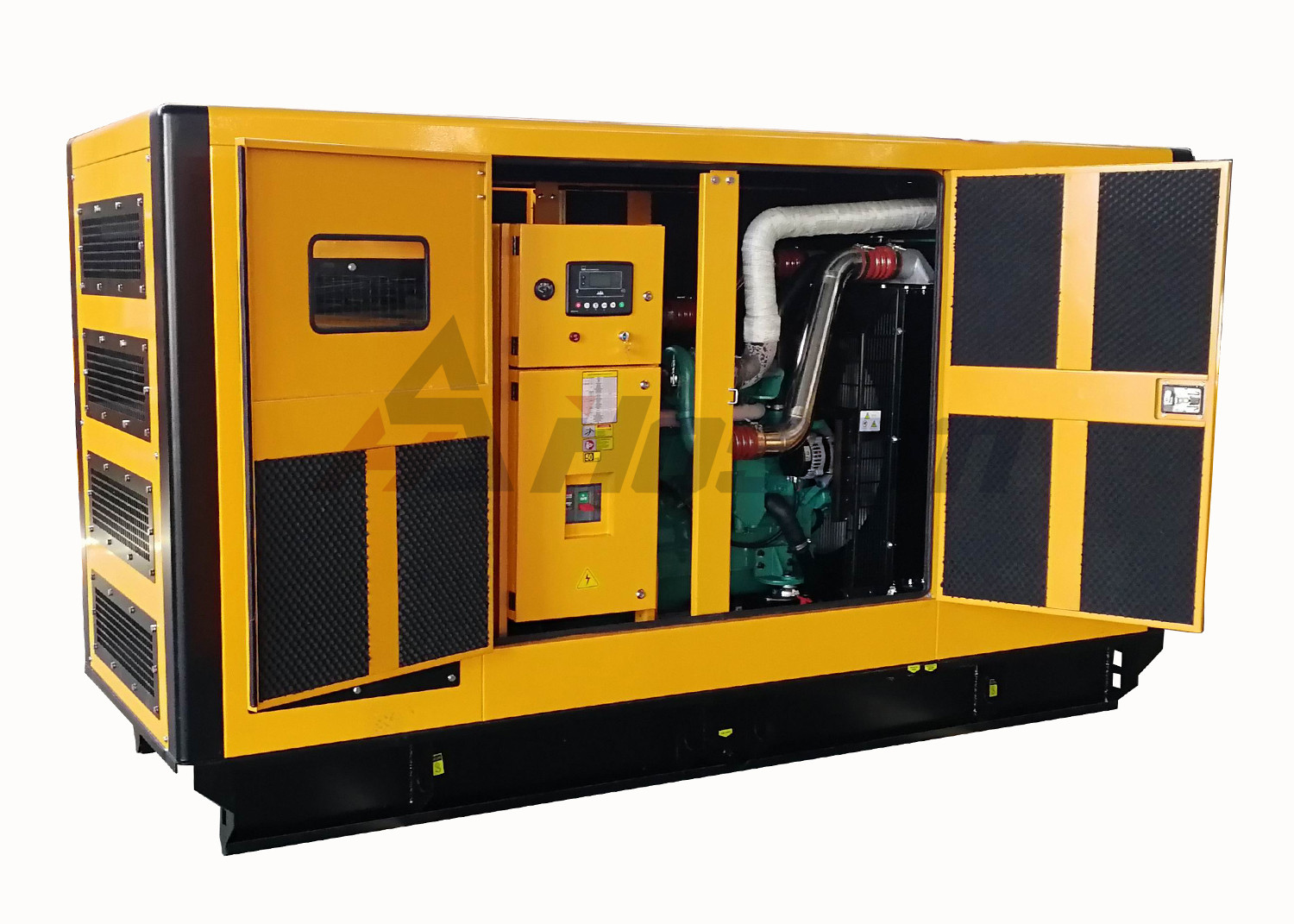

40kVA Cummins Power Generator Powered by 4BT3.9-G2 Diesel Engine
for Commercial
Prime Power: Prime output is available for an unlimited number of annual hours
in variable load application, in accordance with GB/T2820-97 (eqv
ISO8528); a 10% overload capability is avaiable for a period of 1
hour with a 12-hours period of operation.
Standby Power: The standby output is applicable for supplying emergency power for
duration of a utility power interruption. No overlad, utility
parallel or negotiated outage operation capability is available at
this rating.
Specification of 40kVA Cummins Power Generator:
| Model | A-C44 |
| Max. Power | kVA | 44 |
| kW | 35.2 |
| Rate Power | kVA | 40 |
| kW | 32 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 57.7 |
| Fuel Tank Capacity | L | 86 |
| Dimension For Open-type Genset | mm | 1780 X 750 X 1350 |
| Weight For Open-type Genset | kg | 880 |
| Dimension For Soundproof Genset | mm | 2300 X 900 X 1250 |
| Weight For Soundproof Generator | kg | 1200 |
| Noise Level for Soundproof Generator at 7M | dBA | 72 |
| Battery | Two of 80Amps Free Maintenance Battery |
Cummins Diesel Engine:
- 4B series Cummins diesel 4 stroke engine with 4 Cylinders in-line,
with direct injection and engine regulation via electronic
management.
- Air intake system for combustion with filtering device and filter
change indicator; originals from the engine manufacturer. Intake
air cooling after the turbo by means of an air/air exchanger.
- A boiler system with heating element is available as an option.
- An adjustable thermostat is included to maintain the temperature at
optimum range and facilitate the starting of the engine.
Specification of Cummins Diesel Engine:
| Engine Brand | Cummins | Bore (mm) | 102 |
| Model | 4BT3.9G2 | Stroke (mm) | 120.00 |
| R.P.M. | 1500 | Compression Ratio | 17.3 : 1 |
| Max. Power (kWm) | 40 | Type of Regulation | Electric |
| Fuel | Diesel | Min. Fuel Consumption | 229.00 | (g/kW.Hr) |
| No. of Cylinder | 4 Cylinder in line | Oil Pan Capacity | 11.00 |
| Engine Capacity (L) | 3.9 | Weight | 321kG |
Brushless Alternator:
Hosem alternator with 4 poles, with a lifetime lasting greased
bearing, H class insulation, without brushes, 2/3 coil and AVR
(Automatic Voltage Regulator)
Protection of all the windings by means of 2-part high quality
polyester resin impregnation. The stator windings receive a double
impregnation.
Joining of engine and alternator through flexible disc coupling.
Incorporates electromagnetic emissions suppressor in accordance
with standard VDE 0875, class H.
Have Leroy Somer, Marathon, Mecc Alte and Hosem brand brushless
alternator for optional.
Specification of Hosem Brushless Alternator:
| Brand | Hosem | Voltage Stability | +-0.5% |
| Model | ASF184H | Proformance at 75% p.f 0.8 (%) | 87.72 |
| Alternator Power (kVA) | 40 | Proformance at 100% p.f 0.8 (%) | 86 |
| Numbers of Wires | 12 Wires | Working Temperature without Output Reduction | ≤40℃ |
| IP Alternator | IP23 | Working Altitude without Output Reduction | ≤1000m |
| Exciation System | Self Excitation | Phase | 3 Phase |
| AVR | SX440 | Type | Brushless |
Supply the 24hours base frame fuel tank for the 40kVA Cummins Power
Generator.
FAQ:
Q: What is your MOQ of this item?
A: The Min. order quantity is 1 Set.
Q: What is your payment terms?
A: T/T or L/C payment term.
Q: What is the lead time?
A: 20-25 workings days
Q: Where is your seaport of shipment?
A: Fuzhou, China.
Q: Can I use my own brand name?
A: Yes, OEM and ODM are both supported.
Q: Available colors?
A: White, Blue, Red, Green, Yellow, Gray.
Q: Which markets have you exported before?
A: Southeast Asia, the Middle East, Africa, Europe, South America,
Oceania.
Q: Any certifications for your gensets?
A: ISO9001-2008, ISO14001-2004, CE, SASO, SONCAP, RETIE, etc.
Q: What the packing for the diesel generator?
A: Plastis foam packing for container shipment, and plywood packing
for LCL shipment.
