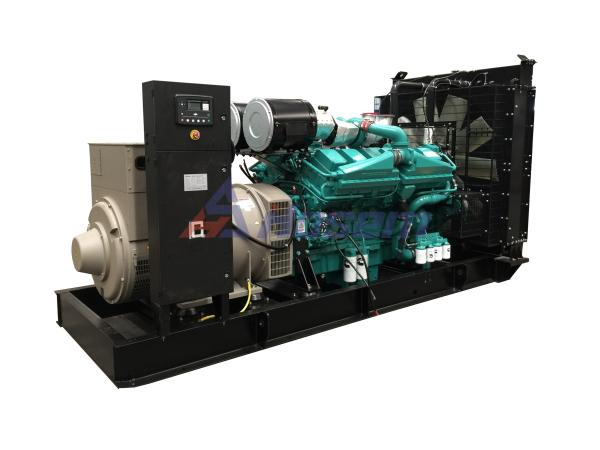

Cummins Generator Set , Cummins Diesel Generator 1500kVA , Cummins
Emergency Generator , KTA50-G9
Why Choose Hosem Power Generator?
Reasons1: We are More Professional
Most members of Hosem Power have more than 10 years of experience
in the generator area, Our mechanical engineers, electrical
engineers have more than 20 years of experience in the generator
ara. We are always ready to serve to your needs.
Reasons2: Outstanding Quality
Our advantage lies in:
1. Good shock absorption performance: Optimal design of shock
absorption system based on computer dynamic simulation.
2. Advanced control system: Full monitoring system control strategy
found on reliability design.
3. Low noise: Tailor custom-engineered exhaust silencer system for
each set.
4. Green environmental protection: Diesel generator set combined
energy-saving and low emission in one.
Reasons3: Strictly QC Before EX-Factory.
Each and every unit is strictly factory tested before shipment.
1) Parts faults testing
2) Fuel tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insulation testing
6) Noise testing
7) Loading Testing: 25%, 50%, 75%, 100%, 110% load to check verify
that all control systems, alarm and shut-down protection.
| Generator Set Specification |
| Model | A-C1875H |
| Max. Power | kVA | 1875 |
| kW | 1500 |
| Rate Power | kVA | 1563 |
| kW | 1250 |
| Frequency | Hz | 60 |
| Rate Voltage | V | 220/127 |
| Rate Current | A | 4100.6 |
| Dimension For Open-type Genset | mm | 5800 X 2090 X 2400 |
| Weight For Open-type Genset | kg | 5662 |
| Dimension For Soundproof Genset | mm | 12192 X 2438 X 2896 |
| Weight For Soundproof Generator | kg | 6850 |
| Engine Specification |
| Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd. |
| Engine Brand | Cummins |
| Engine Model | KTA50-G9 |
| No. of Cylinder | 16 Cylinder V Type |
| Aspiration | | Turbocarged & Aftercooed |
| Governor | Electric |
| Engine Max. Output Power | kW | 1656 |
| Displacement | L | 50.3 |
| Starting Voltage | V | 24 |
| Bore | mm | 159 |
| Stroke | mm | 159 |
| Lubrication Oil Capacity | L | 135 |
Cummins Engine Features:
1, Super power, PT fuel system, ultra-high injection pressure,
sufficient combustion, low fuel consumption and good economic
performance.
2, Replaceable wet cylinder sleeves, good cooling effect, good
spare parts commonality, high serialization, easy maintenance and
low failure.
3, High-strength alloy cast iron with good rigidity, small
vibration, low noise, good reliability and durability.
4, Professional configuration, best quality, mature product, global
reputation, and wide industry application.
| Alternator Specification |
| Alternator Manufacturer | Cummins Generator Technologies |
| Alternator Model | PI 734 B |
| Alternator Brand | Stamford |
| Rate Output | kVA | 1525 |
| Frequency | Hz | 60Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Voltage Regulation | AVR Model SX460 |
| Protection Grade | IP23 |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for
optional |
|
| Control Panel Specification |
| Controller Brand | Deepsea |
| Controller Model | DSE7320 |
| Breaker Brand | Delixi |
| Breaker Capacity | 80A |
| Battery Charger | Supply |
| Emergency Stop Button | Supply |
| Automatic Mains Fail (AMF) | Supply |
| The control panel supply the full protection with Alarm and
Shutdown of the diesel generator include High Temp, Low Oil
Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under /
Over Voltage etc. |
|
|
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand
controller. |
Base Frame
Heavy duty quality steel fabricated welded base plate
Heavy duty anti-vibration mountings
Stub-up area
Electrical System
Battery (for 50HZ is supplied as standard)
Battery rack and cables
Engine-driven battery charger
Battery disconnect switch
32A/4P CHINT MCCB
FAQ
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100%
irrevocable L/C at sight.
Q: What is your lead time?
A: About 20-30 days after receiving advance deposit or original
L/C.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificates for
different countries such as SONCAP for Nigeria, COI for Iran, SASO
for Saudi Arabia, etc.
Q: What warranty do you provide?
A: One year, during the guarantee period, we will supply free of the easily damaged parts for the possible problems except for
the incorrect operation. After expiration, we supply cost spare parts for Genset maintenance.
